ABB APBU-44C 64669982 | ACS800 PPCS Branching Unit

Description

• Brand: ABB
• Full Model Number: APBU-44C / 64669982
• System/Series Family: ABB ACS800 Power Converter Platform
• One-Sentence Core Function: PPCS branching unit used within compatible ABB ACS800 power-converter configurations for signal and control interconnection
• Top 3 Hardcore Specs: ABB Type Designation PPCS BRANCH. & DA APBU-44C; Product Main Type ACS800; net weight approximately 0.9 kg
• Stock Status: New Surplus / Fully Tested Refurbished — exact part number and physical condition verified before shipment

Module 3: Commercial-Technical Deep Dive

A missing or failed branching unit can prevent an ACS800 power-converter assembly from being restored even when the principal power and control modules test correctly. ABB identifies , product ID 64669982, with the official type designation PPCS BRANCH. & DA and catalog description , BRANCHING UNIT. ABB classifies it under the product family and lists it as an option used in compatible converter assemblies and kits, including several -104 configurations.

For procurement, the important point is function and exact assembly compatibility rather than an assumed power rating. ABB’s current product data lists approximately 0.9 kg net weight and identifies the unit as an frequency-converter option; public secondary listings that describe as a standalone power module or a 44 kW inverter conflict with ABB’s own catalog classification and should not be used as engineering specifications. The safer approach is to match the complete 64669982 identifier, the existing assembly, and the applicable PPCS wiring documentation before installation. ABB’s current record also identifies 3AXD50000447435 as a replacement product ID, which is relevant when planning a longer-term migration.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific PPCS branching unit for compatible ABB power-converter assemblies.
• Official identification: ABB type designation PPCS BRANCH. & DA ; Product ID 64669982.
• Application: ABB identifies the product main type as and lists it as an option used in specific converter kits, including -104 variants.
• Firmware requirement: No independent firmware update is normally associated with the branching unit itself. Any associated controller or PPCS configuration should still be recorded before replacement.
• Logic rewrite: Not normally required for a verified like-for-like replacement; verify the complete converter assembly and signal routing after installation.
• Lifecycle note: ABB’s current product data identifies 3AXD50000447435 as the replacement product ID, so the 64669982 unit should be treated as a configuration-specific legacy spare when planning future procurement.

⚠️ Field Traps (Watch Out)

• Do not confuse it with a power module: Several aftermarket pages incorrectly describe as a 44 kW power module. ABB’s own catalog identifies it as a PPCS branching unit, so verify the required function from the converter documentation before purchase.
• Kit-specific compatibility: ABB lists the unit as part of specific kits. A physically similar branching unit from another configuration should not be treated as automatically interchangeable.
• PPCS wiring: Photograph all connected cables, branch points, jumpers, and connector positions before removal. Incorrect signal routing can leave the converter apparently powered while the control path remains inoperative.
• DC-bus safety: The branching unit is part of a power-converter system. Do not infer that its relatively low mass means the surrounding assembly is electrically safe. Follow the shutdown, discharge, and LOTO procedure before handling.
• ESD protection: Use grounded ESD controls when handling the electronic assembly and protect connectors from contamination during storage.

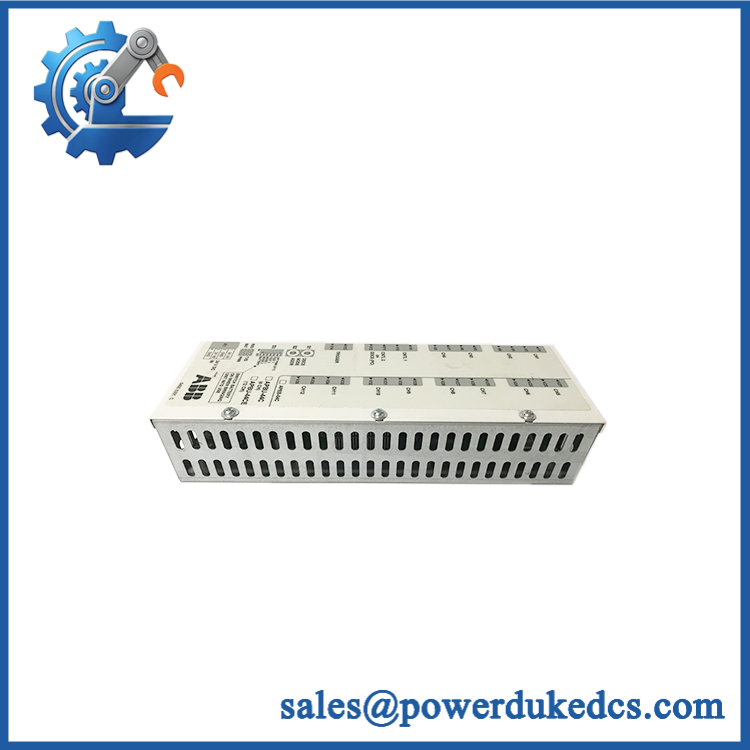

ABB APBU-44C 64669982

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB 64669982 is centered on exact catalog identity, mechanical integrity, and assembly compatibility:

1. OEM anti-counterfeit visual inspection — verify ABB markings, designation, full 64669982 product ID, revision information, labels, connector construction, and PCB/module markings.
2. Product-ID capture — photograph all identification labels and secondary markings before testing.
3. Configuration verification — compare the requested 64669982 unit with the customer’s existing assembly and available photographs.
4. Mechanical inspection — check enclosure, mounting points, connectors, terminals, locking features, and evidence of impact or overheating.
5. PCB inspection — where exposed, examine solder joints, components, contamination, corrosion, and signs of thermal stress.
6. Power-isolation check — confirm that the test fixture is electrically appropriate and that no hazardous DC-bus voltage is present before physical handling.
7. Power-on self-test (POST) — where a compatible /PPCS test environment exists, energize the unit under documented conditions and monitor startup indications and abnormal current draw.
8. Branch/interface verification — verify representative signal paths and branch connections according to the applicable ABB schematic rather than relying only on a visual check.
9. Controller handshake verification — where supported by the complete test assembly, confirm expected communication or control-path behavior between the branching unit and associated hardware.
10. System-level observation — operate the test assembly under controlled conditions and monitor for intermittent connections, abnormal heating, or unstable control signals.
11. Configuration record — document product ID, revision, associated converter type, test fixture, measurements, and inspection photographs.
12. Final QC review — cross-check the recorded identifiers against the purchase specification before release.
13. ESD and mechanical packaging — use antistatic protection, connector guards, cushioning, and moisture protection for shipment.

The inspection deliberately avoids publishing unsupported electrical ratings. ABB’s catalog provides reliable identification, product family, application, weight, and replacement-product information, while several secondary sources publish contradictory descriptions for this part.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 64669982 obsolete, and how do I verify the correct replacement?

64669982 is an ABB cataloged branching unit for the platform. ABB’s current product information also lists 3AXD50000447435 as the replacement product ID. For legacy equipment, verify the complete installed part number and converter configuration before substituting the newer identifier.

2. Is a 44 kW power module?

No. ABB’s own catalog identifies as a branching unit, not a 44 kW inverter power module. Some third-party pages use incorrect power-module terminology, so ABB’s catalog identification should take precedence for procurement and engineering purposes.

3. Can be hot-swapped?

Do not assume live replacement is permitted. The unit is associated with power-converter assemblies, where hazardous DC-bus energy can remain after normal shutdown. Follow the applicable maintenance procedure, allow the specified discharge interval, verify absence of hazardous voltage, and apply the site’s LOTO procedure before removal.

4. Which systems use 64669982?

ABB’s product data identifies the main product type as and lists the unit in kits associated with several configurations, including 104A, 104BV2, 104C, 104DV2, 104LCA, and 104LCB. Exact compatibility should still be checked against the installed converter assembly and kit documentation.

5. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact physical unit supplied. Technical support should cover part-number verification, compatibility review, connector and branch identification, installation checks, and documented pre-shipment inspection results. It should not substitute for drive commissioning, DC-bus safety verification, or site-specific power-converter engineering.
