Description
- Brand: ABB
- Full Model Number: ASFC-01
- Related Published Designation: ASFC-01C
- System/Series Family: ABB ACS800 MultiDrive
- Core Function: Fuse switch controller for ACS800 R7i/R8i drive configurations
- Module Type: Drive accessory / fuse-switch control interface
- Application: ACS800 rectifier and multi-drive configurations
- Mounting: Open-type drive equipment
- Compatibility Note: Published certification identifies ASFC-01C; verify whether the installed unit is ASFC-01 or ASFC-01C
- Stock Status: New Surplus / Fully Tested Refurbished — verify exact suffix and test evidence
ABB certification documentation identifies ASFC-01C as a fuse switch controller accessory for ACS800 R7i and R8i frame-size variable-speed drives. A technical-resources listing also maps ASFC-01C to the RDCU-02C control platform.
Module 3: Commercial-Technical Deep Dive
When an ACS800 multi-drive cabinet relies on a controlled fuse-switch arrangement, the fuse-switch controller becomes part of the equipment’s power-isolation and supervisory interface. ABB ASFC-01 is associated with this function; however, the available ABB certification specifically names ASFC-01C, not a bare ASFC-01 designation. The certified application covers ACS800 R7i/R8i frame-size drives, so this part should be sourced by the complete suffix and cabinet configuration rather than by the family name alone.
The practical value is maintaining the existing fuse-switch control architecture without modifying the drive cabinet around a different interface. This is particularly relevant for installed systems where replacement hardware must match the existing control unit and power-section arrangement. ABB-related technical documentation associates with RDCU-02C, providing a useful cross-check during procurement. —Do not assume that every ASFC-labelled assembly has identical electrical characteristics; verify the complete ABB designation and applicable manual before energizing.

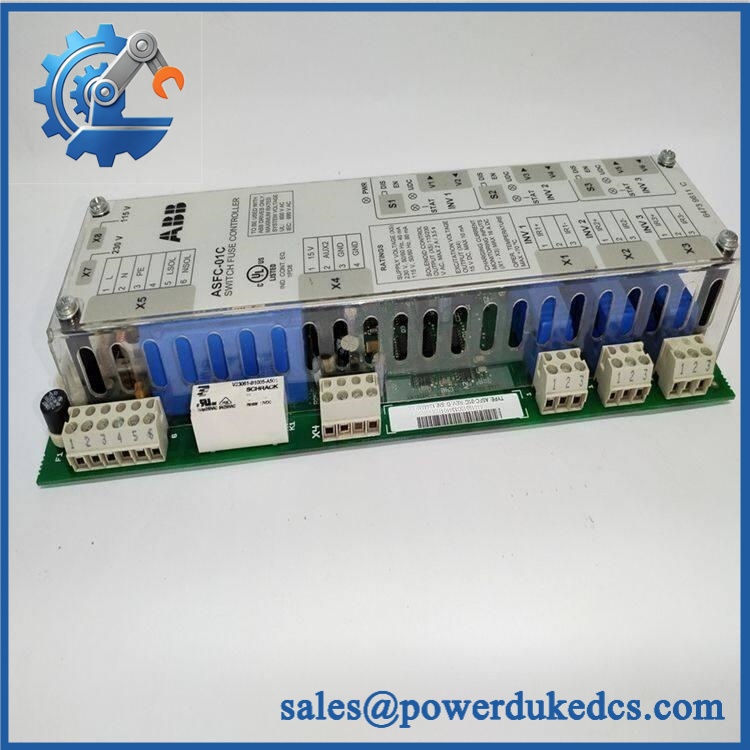

ABB ASFC-01
Module 4: Compatibility & Installation Traps
Migration/Compatibility
For an existing installation using the corresponding hardware, the preferred approach is a like-for-like replacement after exact suffix verification. ABB certification confirms the designation as a fuse switch controller for specific R7i/R8i configurations. It should not be treated as a universal accessory.
A firmware flash or PLC logic rewrite is not normally the primary issue because this is a drive accessory rather than a standalone application CPU. The important checks are the exact suffix, mating control unit, cabinet wiring, fuse-switch arrangement, and frame configuration.
⚠️ Field Traps (Watch Out)
- ASFC-01 versus : This is the first procurement check. ABB’s current certification evidence specifically states . Do not silently equate the shorter ASFC-01 identifier with without confirming the label on the installed unit.
- RDCU compatibility: Technical references associate with RDCU-02C. Verify the controller assembly and wiring before installation rather than relying on physical connector similarity.
- Power-section isolation: Because the controller is associated with fuse-switch hardware in an drive cabinet, follow the ABB isolation and maintenance procedure. Do not work on the assembly based only on the low-voltage control-board appearance.
- Connector transcription: Photograph every control connection before removal and reconcile each conductor against the drive schematic. A correctly mounted controller with an incorrect interface connection can produce a false drive fault or incorrect switch status.
Module 5: Quality Assurance SOP
For surplus ABB fuse-switch controller inventory, the pre-shipment QA sequence should establish exact identity before functional testing:
- OEM anti-counterfeit visual inspection — verify ABB markings, ASFC designation, suffix, PCB layout, connectors, labels, and evidence of unauthorized modification.
- Part-number reconciliation — photograph the complete visible identification and determine whether the unit is marked , , or another revision.
- Controller compatibility check — verify the associated RDCU/controller arrangement against the customer’s application.
- PCB condition inspection — inspect connectors, relays or interface components, solder joints, terminals, mounting hardware, and PCB surfaces for corrosion, contamination, cracks, or thermal damage.
- Power-on self-test (POST) — where an approved low-voltage test fixture is available, verify expected startup behavior and applicable status indications.
- Fuse-switch interface verification — simulate the approved control and status signals and verify that the controller responds correctly.
- Communication/interface handshake verification — confirm the interface with the representative RDCU/test controller where the test fixture supports it.
- Switch-status verification — verify the applicable open/closed or supervisory feedback paths under controlled conditions.
- Stability observation — monitor for intermittent signals, abnormal heating, unexpected state changes, or resets.
- Final QC release — retain identification photographs, suffix verification, interface-test results, and packaging records with the shipment file.
For this accessory, exact suffix verification is part of the QA process, not an administrative detail. The certification evidence available for ABB identifies , so an unlabeled or ambiguously marked ASFC unit should not be released as an exact-match spare.
Module 6: CRO-Driven Buyer FAQ
1. What is ABB ?
ASFC is associated with ABB’s fuse switch controller hardware for drive configurations. Public ABB certification specifically identifies , used with R7i and R8i frame-size drives.
2. Is the same as ?
Do not assume so. The available ABB certification names , while the requested inventory identifier is . The physical nameplate, revision, and customer equipment documentation should be checked before treating the two as interchangeable.
3. Is a drop-in replacement?
Only after the exact designation and cabinet configuration have been confirmed. Verify the corresponding controller, fuse-switch hardware, connector arrangement, and applicable ABB documentation before installation.
4. Can the be hot-swapped?
Do not assume hot-swap capability. The controller is associated with fuse-switch hardware in an drive power cabinet. Follow the ABB shutdown, isolation, and lockout procedure before replacement unless the specific equipment documentation explicitly permits energized servicing.
5. Does require firmware programming?
It is primarily a fuse-switch control accessory, not a standalone PLC CPU. Firmware programming is therefore not normally the central replacement issue. Compatibility with the associated controller, cabinet configuration, and fuse-switch interface is more important.
6. What warranty and technical support should I expect?
The quotation should specify whether the unit is new surplus, unused, or tested refurbished and state the warranty period. Technical support should cover exact-part verification, suffix identification, compatibility, controller matching, and available functional-test records. Drive power-section commissioning and site electrical work should remain separate engineering activities.
