Description
- Brand: ABB
- Full Model Number: AX670 3BSE000566R1
- System/Series Family: ABB S600 I/O / Advant OCS / Advant Controller 110 and 160
- Core Function: Analog mixed input/output module for ABB S600 I/O architecture
- ABB Type Designation: AX670
- Catalog Description: AX670 Analog Mixed Module
- Alternative Product Reference: 1CSD292730-501
- Net Dimensions: 225 × 45 × 243 mm
- Product Net Weight: 1.25 kg
- Category: S600 I/O Module
- Stock Status: New Surplus / Fully Tested Refurbished — verify exact condition and test report
ABB product data identifies 3BSE000566R1 as the AX670 Analog Mixed Module within the S600 I/O product category. ABB-listed dimensions are approximately 225 mm wide × 45 mm high × 243 mm deep, with a 1.25 kg net weight. The product is also associated with ABB Advant OCS and Advant Controller 110/160 systems.

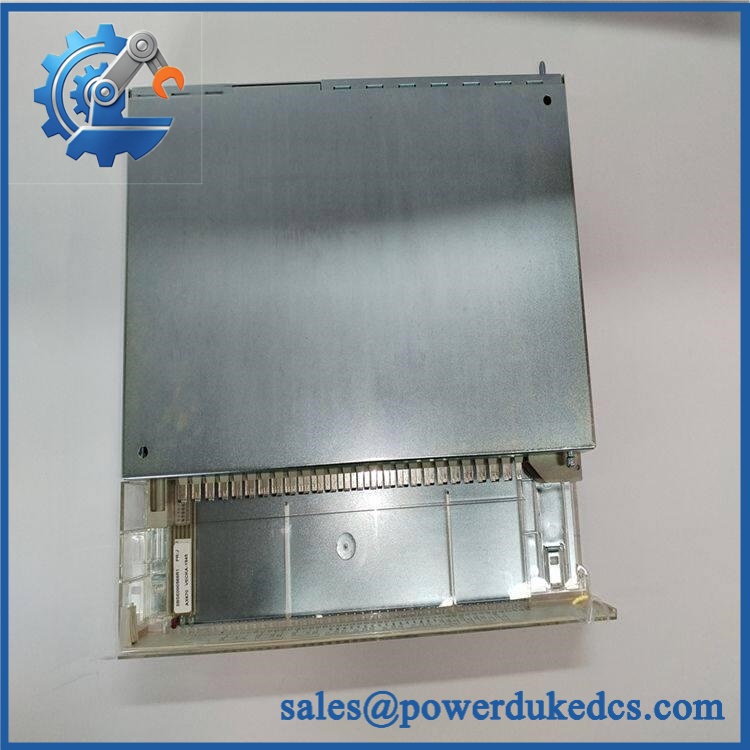

ABB AX670 3BSE000566R1
Module 3: Commercial-Technical Deep Dive
When an older Advant OCS installation develops an analog I/O fault, the problem may present as a bad transmitter, unstable process value, or incorrect controller response long before the module itself is identified. ABB AX670 3BSE000566R1 is documented as an Analog Mixed Module within the ABB S600 I/O architecture, with the part listed under Advant OCS I/O products and associated with Advant Controller 110/160 systems. That makes exact part-number matching more important than selecting another module with a similar analog-channel description. ABB also lists 1CSD292730-501 as an alternative product reference.
The hard ROI is direct replacement of the installed S600 I/O architecture without redesigning the cabinet around a different hardware family. The documented 1.25 kg net weight and approximately 225 × 45 × 243 mm mechanical envelope provide useful procurement checks for incoming inventory and cabinet fit. Public sources disagree on several detailed electrical specifications, including channel counts and supply characteristics, so those values should not be presented as universal AX670 specifications without a matching ABB technical manual. —For a maintenance order, use the complete 3BSE000566R1 identifier, installed controller type, terminal arrangement, and approved I/O configuration as the compatibility baseline.
Module 4: Compatibility & Installation Traps
Migration/Compatibility
For an existing ABB installation specifying 3BSE000566R1, the correct starting point is a like-for-like replacement. ABB categorizes the as an I/O analog mixed module, and the product is associated with Advant OCS and Advant Controller 110/160 systems.
A conventional PLC logic rewrite is not normally associated with replacing the same I/O module. However, channel configuration, controller database assignments, terminal wiring, and signal conditioning must match the existing application. Do not assume that another ABB analog module can be substituted simply because it occupies a similar physical position.
⚠️ Field Traps (Watch Out)
- Channel/specification ambiguity: Public third-party listings report conflicting channel counts and electrical specifications for . Treat those figures as unverified until they are confirmed against the customer’s installed hardware documentation.
- Alternative part-number confusion: 1CSD292730-501 is listed as an alternative product reference for 3BSE000566R1. Record both identifiers from the installed unit when available so procurement does not accidentally match an unrelated ABB module.
- Terminal rewiring risk: Mixed analog I/O modules require correct field-channel assignment and signal polarity. Photograph every terminal connection before removing the original module and reconcile the wiring against the Advant OCS documentation.
- ESD exposure: Handle the module with appropriate ESD controls, particularly around the backplane connector and exposed electronics.
Module 5: Quality Assurance SOP
For surplus ABB I/O inventory, the pre-shipment process should establish exact identity and representative analog-function performance:
- OEM anti-counterfeit visual inspection — verify ABB markings, designation, full 3BSE000566R1 number, PCB layout, connector arrangement, labels, and signs of unauthorized repair.
- Part-number reconciliation — photograph , 3BSE000566R1, and any alternative or revision identifiers visible on the unit.
- Mechanical inspection — verify the approximately 225 × 45 × 243 mm envelope, mounting features, connector condition, housing integrity, and absence of impact damage.
- PCB inspection — check terminal interfaces, backplane contacts, solder joints, capacitors, connectors, and PCB surfaces for oxidation, contamination, cracked components, or rework.
- Power-on self-test (POST) — install the module in an approved /Advant test environment and verify startup behavior and applicable diagnostic/status indications.
- Analog input verification — apply controlled reference signals to representative input channels and compare measured values with the approved test tolerance.
- Analog output verification — where applicable to the installed configuration, command representative outputs and verify the measured response using calibrated test equipment.
- Channel isolation/continuity checks — verify applicable signal paths and terminal continuity against the authorized test fixture.
- Controller communication handshake — establish communication between the and a representative Advant Controller/ test environment and confirm correct module recognition.
- Stability observation — operate the module under controlled signal conditions and monitor for drift, intermittent values, unexpected resets, or abnormal heating.
- Final QC release — retain identification photographs, measured test results, module recognition status, and packaging inspection records.
For an analog mixed module, “powers on” proves very little. The useful QA result is verified channel behavior against calibrated reference signals in a representative environment.
Module 6: CRO-Driven Buyer FAQ
1. What is ABB 3BSE000566R1?
ABB identifies 3BSE000566R1 as Analog Mixed Module, belonging to the product family and associated with Advant OCS control-system applications. ABB-related product data also lists 1CSD292730-501 as an alternative product reference.
2. Is a standard analog input module?
It is classified specifically as an Analog Mixed Module, so it should not automatically be treated as a pure analog-input card. The exact input/output channel arrangement should be confirmed from the installed system documentation rather than from inconsistent third-party specifications.
3. Is 3BSE000566R1 a direct replacement?
For an existing /Advant OCS installation specified for the exact part number, a like-for-like replacement is the appropriate approach. Confirm the controller family, terminal arrangement, I/O configuration, and module revision before installation.
4. Can the be hot-swapped?
Do not assume hot-swap capability. The module forms part of a legacy I/O architecture and may carry active process signals. Follow the site’s shutdown, isolation, and module-replacement procedure unless the applicable ABB documentation explicitly permits energized exchange.
5. Does require firmware programming?
It is an I/O module rather than a standalone application CPU, so PLC-style application programming is not normally the main replacement task. Correct module configuration, channel assignment, controller recognition, and field wiring remain essential during commissioning.
6. What warranty and technical support should I expect?
The quotation should explicitly state whether the unit is new surplus, unused, or tested refurbished and specify the warranty period. Technical support should cover exact-part identification, /Advant OCS compatibility review, available analog I/O test records, and installation guidance. Process-loop commissioning and control-system configuration changes should remain separate engineering services.
