ABB AX722F 3BDH000377R0001 | Analog I/O Module

Description

• Brand: ABB
• Full Model Number: AX722F 3BDH000377R0001
• System/Series Family: ABB Freelance DCS S700 I/O
• One-Sentence Core Function: 16-channel analog input/output module for voltage, current, temperature, and analog output signal processing
• Top 3 Hardcore Specs: 8 AI + 8 AO; 12-bit + sign resolution; 24 VDC supply, approximately 5–6 W dissipation
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A mixed analog I/O failure can force a shutdown when several measurement and control loops share one compact I/O position. The ABB AX722F, product ID 3BDH000377R0001, combines 8 analog inputs and 8 analog outputs in a single module for ABB Freelance systems. ABB specifies the module for PROFIBUS remote I/O and direct I/O with AC 700F and AC 900F controllers, using TU 715F or TU 716F terminal units. Its eight inputs can process voltage, current, temperature, and related signals, while the output section supports voltage and current ranges.

For integration work, the useful number is channel density: sixteen analog channels occupy one I/O module position. The official data specifies 12-bit plus sign conversion, with input ranges including -10 to +10 V, 0/4–20 mA, and RTD, while the output section supports 0–10 V, ±10 V, 0–20 mA, and 4–20 mA depending on the channel configuration. ABB’s current datasheet lists a 24 VDC external supply, approximately 0.10 A current consumption, and 6 W power dissipation; the product catalog gives 5 W, so the exact revision should be checked when calculating cabinet power margins.

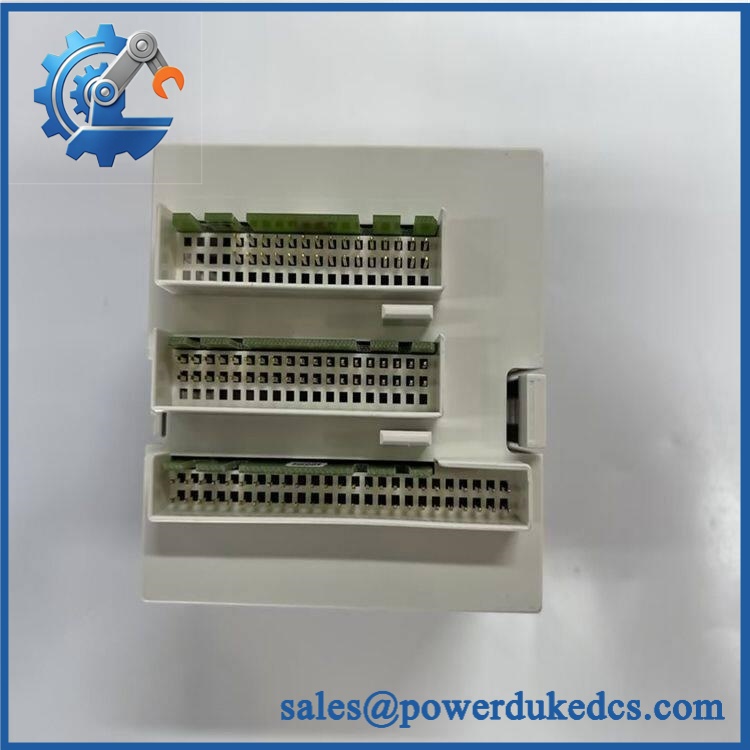

ABB AX722F 3BDH000377R0001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: ABB AX722F Rev.A, product ID 3BDH000377R0001.
• Logic rewrite: Normally not required for a like-for-like replacement when the existing Freelance hardware configuration and I/O mapping are retained.
• Firmware/software: ABB’s product catalog states that Freelance software version 2013 SP1 RU04 or higher is mandatory for the AX722F. Verify the installed engineering environment before commissioning.
• Terminal unit: Use with TU 715F / TU 716F.
• Remote/direct I/O: Suitable for PROFIBUS Remote I/O and direct I/O applications with AC 700F / AC 900F controllers.

⚠️ Field Traps (Watch Out)

• Channel-function mismatch: The AX722F combines analog inputs and outputs, but the individual channel capabilities are not identical. Verify the configured channel assignment before moving wiring.
• RTD wiring: Temperature inputs require the correct sensor and wiring arrangement. Do not assume a 4–20 mA loop terminal can be repurposed as an RTD input without checking the configured channel.
• Terminal-unit mismatch: The module is intended for TU 715F/TU 716F. A physically similar terminal unit is not automatically electrically equivalent.
• Power-budget discrepancy: ABB references show approximately 5 W in the product catalog and 6 W in the 2025 datasheet. Use the applicable revision when sizing the 24 VDC supply.

Module 5: Quality Assurance SOP

Before shipment, the ABB AX722F 3BDH000377R0001 should pass an analog-I/O-specific inspection sequence:

1. OEM anti-counterfeit visual inspection — verify ABB markings, designation, product ID, Rev.A identification, connector layout, and PCB construction.
2. Mechanical inspection — inspect the enclosure, bus connectors, terminal-unit interface, mounting points, and PCB for impact, corrosion, contamination, or unauthorized rework.
3. Configuration verification — confirm the exact product number and intended use with TU 715F/TU 716F.
4. 24 VDC power verification — apply a controlled laboratory supply and verify startup current and module status.
5. Power-on self-test (POST) — verify front-panel diagnostic LEDs and expected initialization behavior.
6. Analog input verification — inject calibrated voltage, current, and supported RTD signals into representative channels and compare measured values against the test source.
7. Analog output verification — command representative 0–10 V, ±10 V, 0–20 mA, and 4–20 mA outputs where the selected channels support those ranges.
8. Channel isolation check — verify the specified electrical relationship between I/O channels and the module’s other circuitry before deployment.
9. PROFIBUS/direct-I/O handshake verification — where the appropriate ABB test environment is available, confirm module identification, channel status, and data exchange.
10. Final QC record — document product ID, revision, test conditions, measured input/output values, photographs, and packaging condition.

For an analog I/O module, powering up is only the first check. Known-current injection, calibrated voltage testing, RTD verification, and output-loop measurement provide the useful evidence.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 3BDH000377R0001 obsolete, and how do I verify an authentic replacement?

ABB’s current Freelance documentation still identifies AX 722F, 3BDH000377R0001 as an analog input/output module within the S700 I/O family. The product is identified as AX 722F Rev.A. For procurement, verify the complete product ID, revision marking, connector arrangement, and intended terminal unit before accepting a replacement.

2. Can I hot-swap the ?

Do not assume hot-swap capability. The is an active 24 VDC I/O module connected to field instrumentation. Isolate the relevant control power and field circuits, apply site LOTO procedures, and follow the ABB installation procedure before removal.

3. Will replacing the require reprogramming the DCS?

Normally not for a like-for-like module replacement when the hardware configuration and channel mapping remain unchanged. The engineering environment still matters: ABB states that Freelance 2013 SP1 RU04 or higher is mandatory for this module.

4. What signals can the handle?

The module provides 8 analog inputs and 8 analog outputs. Inputs support voltage, current, and temperature/RTD applications; published ABB data lists input ranges including ±10 V and 0/4–20 mA. Outputs support 0–10 V, ±10 V, 0–20 mA, and 4–20 mA, depending on channel configuration.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact product-ID verification, Freelance/AC 700F/AC 900F compatibility, terminal-unit selection, channel configuration, and documented analog-I/O test results. Process-loop commissioning and live field rewiring remain the responsibility of qualified site personnel.
