- ABB CI543 3BSE010699R1 | Replacement PROFIBUS Interface Module In Stock
2. At-A-Glance Executive Brief
- Model: CI543
- ABB Part Number: 3BSE010699R1
- Brand: ABB
- Series: ABB S100 I/O / AC 800M
- Part Type: Communication Interface Module
- Core Function: Connects legacy S100 I/O to an AC 800M controller through the PROFIBUS-DP fieldbus.
- Key Specs: PROFIBUS-DP master interface, 12 Mbit/s maximum transmission rate, support for up to 124 slaves, and compatibility with redundant PROFIBUS-DP communication configurations.
3. Product Introduction
In an ABB AC 800M control architecture, the CI543 3BSE010699R1 provides the communication path between the controller and legacy S100 I/O equipment. ABB identifies CI543 as a PROFIBUS-DP master interface for S100 I/O, making it particularly relevant when an existing plant needs to retain S100 field I/O while operating under a newer control platform.
The module is designed for the PROFIBUS-DP protocol and can operate at transmission rates up to 12 Mbit/s. It supports up to 124 PROFIBUS slaves, while the S100 I/O configuration can contain up to 31 I/O units per station.
For a legacy migration project, CI543 is therefore more than a generic communications card. It functions as the bridge between the AC 800M controller environment and an installed S100 I/O infrastructure—useful when replacing the controller side without immediately rewiring every field I/O channel.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | CI543 |
| ABB Article Number | 3BSE010699R1 |
| Product Type | Communication Interface Module |
| Application | S100 I/O communication |
| Host Platform | AC 800M |
| Communication Protocol | PROFIBUS-DP |
| Interface Type | PROFIBUS-DP Master |
| Maximum Transmission Rate | 12 Mbit/s |
| Maximum PROFIBUS Slaves | 124 |
| I/O Units per S100 Station | Up to 31 |
| Redundancy | Supported |
| Redundant Configuration | Two CI543 interfaces can be configured for redundancy |
| Configuration | Control Builder M |
| Mounting | AC 800M controller system / CEX bus architecture |
| Typical Application | Legacy S100 I/O integration |
| Lifecycle Application | Legacy migration and installed-base support |

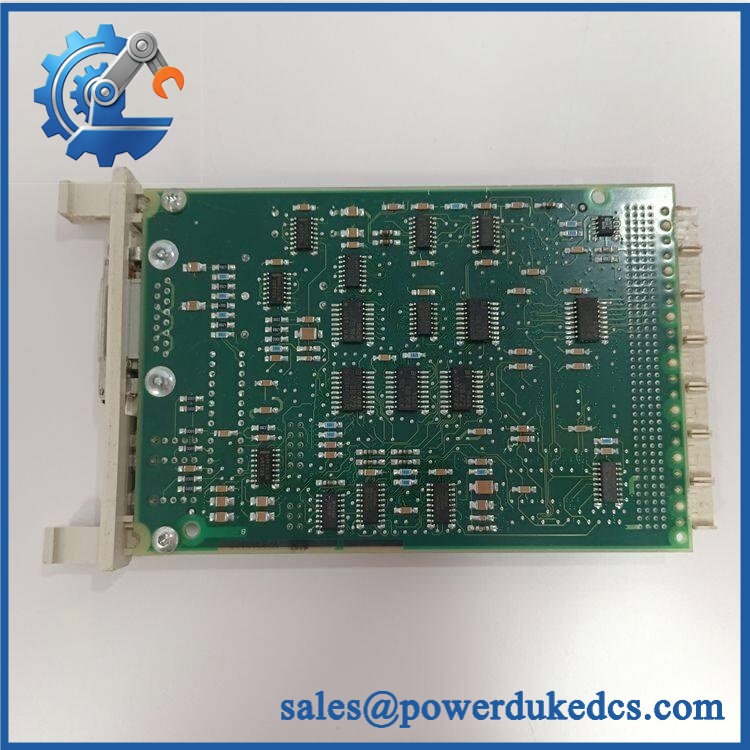

ABB CI543 3BSE010699R1
ABB’s documentation identifies CI543 as a PROFIBUS-DP master interface specifically intended for S100 I/O and states that it supports transmission rates up to 12 Mbit/s and up to 124 slaves.
5. Application Scenarios & Pain Points
A plant modernization project does not always justify replacing every field I/O station. CI543 provides a practical migration path by allowing existing S100 I/O to communicate with an AC 800M controller over PROFIBUS-DP.
Process automation: Existing S100 I/O stations can remain in service while the supervisory/control architecture moves toward AC 800M. This can reduce the amount of field rewiring required during a migration.
Chemical and petrochemical plants: Distributed analog and binary field signals can remain connected to existing S100 I/O while CI543 handles the PROFIBUS-DP connection to the controller.
Power and utility installations: Legacy ABB control cabinets may contain S100 I/O that operators want to preserve. CI543 allows the old I/O infrastructure to participate in an AC 800M architecture rather than forcing immediate cabinet replacement.
Large distributed I/O networks: With support for up to 124 PROFIBUS slaves, CI543 can serve substantial distributed networks, although the practical network size still depends on bus topology, cycle-time requirements, diagnostics, and application loading.
6. Common Error Codes & Diagnostic Symptoms
CI543 does not have a simple universal list of standalone numeric error codes that can be safely applied across every AC 800M configuration. Troubleshooting should focus on module LEDs, Control Builder diagnostics, and PROFIBUS communication status.
- Symptom/Code: PROFIBUS communication fault / slave not responding → Diagnosis: Check PROFIBUS cable continuity, termination, slave address, network configuration, and CI543 interface status → Action: Correct the bus fault; replace CI543 only if the interface itself fails diagnostic testing.
- Symptom/Code: Multiple S100 I/O stations disappear simultaneously → Diagnosis: A common PROFIBUS interface, bus cable, power, or CI543 configuration problem is more likely than simultaneous failures across multiple S100 stations → Action: Check CI543 and the common bus segment first.
- Symptom/Code: Intermittent PROFIBUS connection → Diagnosis: Inspect shielding, termination, connector condition, electromagnetic interference, and transmission-speed configuration → Action: Correct the physical network before condemning the CI543 module.
7. Cross-Reference & Lifecycle Migration
- Exact identification: ABB CI543 / 3BSE010699R1.
- Primary function: PROFIBUS-DP master interface for S100 I/O.
- Host environment: ABB AC 800M control architecture.
- Redundancy: ABB documentation indicates that two CI543 interfaces can be configured for redundancy.
- Configuration: CI543 configuration is performed through Control Builder M within the AC 800M engineering environment.
- Migration role: Particularly useful when retaining legacy S100 I/O while migrating the controller architecture.
- Firmware: Do not assume that firmware flashing is required for every replacement. Confirm the CI543 hardware revision and AC 800M system version before commissioning.
- Lifecycle: CI543 should be considered legacy/installed-base hardware rather than a new-generation I/O interface. For plants still dependent on S100 I/O, maintaining tested spare inventory is advisable.
- Replacement strategy: Do not substitute a generic PROFIBUS interface. The interface must support the required S100 I/O architecture and AC 800M integration.

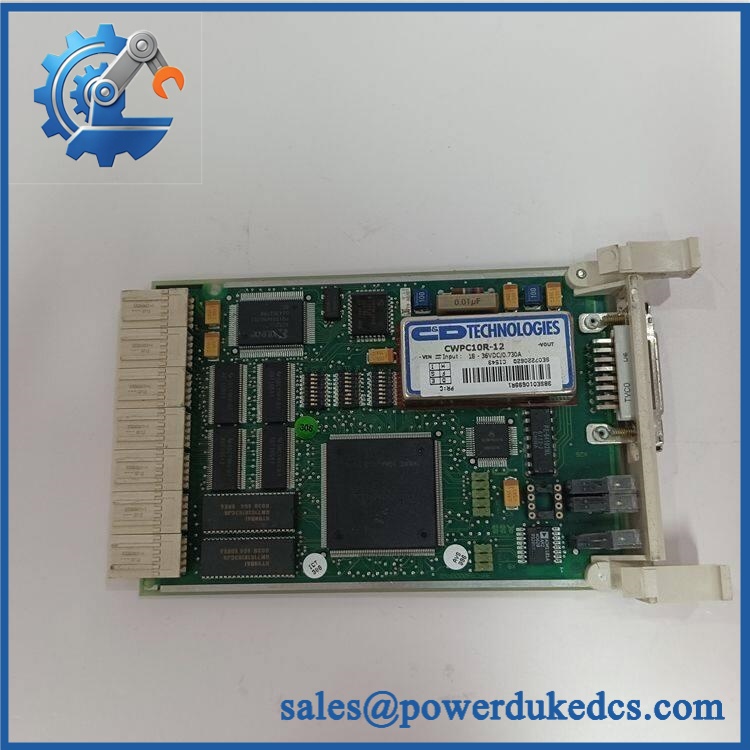

ABB CI543 3BSE010699R1
8. Field Engineer’s Tech Notes
Warning 1 — PROFIBUS termination is a common culprit. If several S100 I/O stations disappear simultaneously, don’t immediately replace CI543. Check the two ends of the PROFIBUS segment, connector termination, shielding, and cable condition first. (A bad termination can look remarkably similar to a failed communication interface.)
Warning 2 — Watch the redundancy configuration. If the installation uses redundant CI543 interfaces, replacement should preserve the intended primary/redundant architecture. Verify the configuration in Control Builder M before returning the system to service.
9. Strict QA & Testing SOP
- Part verification — Confirm CI543 / 3BSE010699R1 against the purchase order.
- Nameplate inspection — Record article number, serial number, revision, and manufacturing markings.
- Physical inspection — Check housing, connectors, LEDs, mounting points, and PCB enclosure.
- Connector inspection — Inspect PROFIBUS and controller-side connections for bent or contaminated contacts.
- Hardware revision check — Compare the supplied CI543 revision with the installed unit.
- Test-rack installation — Install the module in a compatible AC 800M test configuration.
- Controller recognition — Verify that the AC 800M system correctly identifies the communication interface.
- PROFIBUS configuration — Load the appropriate engineering configuration using the approved Control Builder M environment.
- Network test — Connect representative S100 I/O/PROFIBUS devices.
- Communication test — Verify stable master-to-slave communication.
- Data integrity test — Confirm that representative digital and analog I/O data reaches the controller correctly.
- Network-load test — Verify communication behavior under representative system loading.
- Redundancy test — Where applicable, verify switchover between redundant CI543 interfaces.
- Diagnostic test — Confirm that expected communication faults are reported correctly.
- Extended run test — Monitor the interface for intermittent communication errors.
- Final inspection — Record test results, serial number, revision, and photographs.
- ESD packaging — Package the module in anti-static material with adequate mechanical protection.
- Test evidence — Test videos can be provided when available, especially for powered PROFIBUS and S100 I/O communication testing.
10. Buyer’s FAQ
Q: What is ABB CI543 3BSE010699R1 used for?
A: CI543 is a PROFIBUS-DP master communication interface for S100 I/O, designed for integration with ABB AC 800M systems.
Q: What is the maximum PROFIBUS speed?
A: ABB specifies a maximum transmission rate of 12 Mbit/s.
Q: How many PROFIBUS slaves can CI543 support?
A: The documented maximum is 124 PROFIBUS slaves. The practical configuration should still be checked against the required cycle time and network architecture.
Q: Can CI543 be used for S100 I/O migration?
A: Yes. This is one of its primary applications: retaining S100 I/O while integrating it into an AC 800M control architecture through PROFIBUS-DP.
Q: Can I hot-swap CI543?
A: Do not assume live replacement is safe. Follow the specific AC 800M/S100 system maintenance procedure and determine whether the installed architecture supports the required online replacement procedure.
Q: How do I verify a New Original CI543?
A: Request photographs showing CI543, 3BSE010699R1, serial/revision markings, and the ABB nameplate. For a critical spare, request powered PROFIBUS communication test evidence.
Q: What warranty should I request?
A: Have the supplier state whether the unit is New Original, New Surplus, refurbished, or previously installed, together with the warranty period and functional-test coverage.
