Description
- Brand: ABB
- Full Model Number: CI854AK01 / 3BSE030220R1
- Lifecycle Status: Limited — replacement available
- Core Function in System: PROFIBUS DP-V1 communication interface for AC 800M / System 800xA
- Top 3 Hardcore Specs: PROFIBUS DP-V1; CI854A interface; TP854 baseplate included, 60 mm width
- Condition & Lead Time: Stock availability subject to confirmation; emergency dispatch available
Module 3: Technical Intro & Downtime Impact
When a PROFIBUS communication interface drops out, the controller may remain operational while field-device communication stops. That distinction matters during a plant upset: replacing the failed ABB CI854AK01 3BSE030220R1 can restore the PROFIBUS DP communication path without changing the control application itself. ABB identifies this package as the CI854A communication interface with the TP854 baseplate, used for PROFIBUS DP-V1 connectivity in the AC 800M environment.
The practical MTTR advantage comes from hardware continuity. The package uses the same CI854A architecture and mounting baseplate rather than requiring a redesign of the communication layer. ABB documentation also identifies 3BSE030220R1 as the CI854/01 order number. For lifecycle planning, ABB currently lists CI854AK01 as Limited / Replacement available, with CI854BK01 3BSE049448R1 identified as its replacement.
Module 4: Dynamic Emergency Swap & Configuration Guide
1. Pre-Swap Prep — Isolate the Communication Interface
Capture the existing CI854 diagnostic and configuration data before touching the rack. Record the controller station, PROFIBUS master settings, connected slave addresses, and current hardware information. Shut down or place the relevant control structure in the approved maintenance state according to the site’s MOC procedure. Use an ESD wrist strap, insulated hand tools, and retain the existing wiring layout as a reference.
2. Removal — Release the CI854A from the AC 800M Baseplate
Identify the CI854A communication interface on its TP854 baseplate. Disconnect the PROFIBUS network connection only after the circuit has been made safe. Release the module’s mechanical securing arrangement and withdraw the CI854A straight from the baseplate interface; avoid pulling on the PROFIBUS cable or stressing the backplane connector. The TP854 is part of the CI854AK01 package.
3. Installation & Configuration — Match the Existing PROFIBUS Setup
Seat the replacement onto the TP854 interface and secure it mechanically. Restore the PROFIBUS connection exactly as documented. Verify the master configuration, node addressing, slave configuration, and redundancy parameters against the original system. ABB’s CI854 diagnostic interface exposes items including SetAddress, LiveList, CycleTime, MasterSettings, SlaveDiagnosis, SlaveConfig, FirmwareInfo, and HardwareInfo; use these to verify that the replacement is communicating with the expected network configuration.
4. Power-On Self-Test — Check RUN/ERR and Network Recovery
Return power under the approved startup procedure and watch the module diagnostics rather than immediately releasing the system. Verify that the expected operating indication appears, that no persistent error condition remains, and that the PROFIBUS Live List repopulates correctly. Check slave diagnostics and communication cycle behavior before handing the control loop back to operations. For redundant architectures, confirm the intended primary/backup state and perform only the site-approved switchover test.

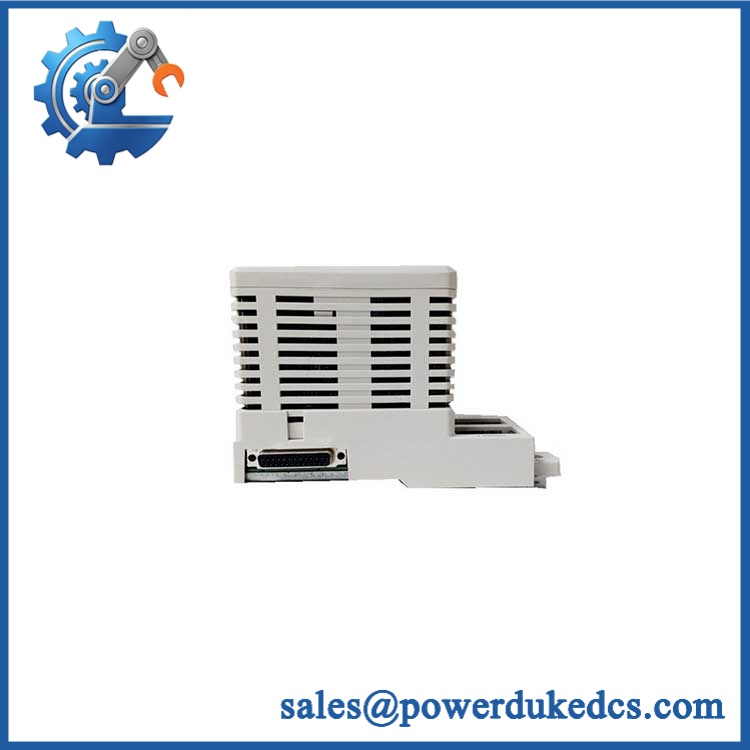

ABB CI854AK01 3BSE030220R1
Module 5: Quality Assurance & Testing SOP
Our pre-shipment QA process treats ABB CI854AK01 3BSE030220R1 as a control-system communication asset, not simply a shelf item.
- Identification Control: Verify model marking, order number 3BSE030220R1, hardware revision information, labels, connectors, and supplied TP854 baseplate against ABB documentation.
- OEM Anti-Counterfeit Visual Inspection: Examine enclosure markings, label quality, connector condition, PCB-accessible identification, and serial/part-number consistency for irregularities.
- Mechanical Inspection: Check the housing, mounting mechanism, backplane interface, PROFIBUS connection hardware, and baseplate for deformation or contact damage.
- Power-On Self-Test (POST): Energize the unit on an appropriate AC 800M test setup and check the expected RUN/ERR diagnostic behavior and startup condition.
- Communication Test: Establish PROFIBUS communication and verify master/interface recognition, network participation, and diagnostic response.
- I/O Full-Range Simulation: Because this is a communication interface rather than an analog or digital I/O card, the equivalent test is full PROFIBUS device simulation—exercise configured slave communications, diagnostics, cyclic data exchange, and fault reporting across the test configuration.
- Diagnostic Verification: Review Live List, CycleTime, MasterSettings, SlaveDiagnosis, FirmwareInfo, and HardwareInfo before release.
- Final QC Record: Record serial number, test date, firmware/hardware information where available, test results, and packaging inspection status.
Module 6: Maintenance & Reliability FAQ
Q1. Is the ABB CI854AK01 3BSE030220R1 a direct drop-in replacement, or does it require a firmware flash?
It is intended for the ABB AC 800M PROFIBUS DP-V1 architecture, but a literal drop-in assumption is unsafe. Verify the installed controller/software environment, CI854 hardware revision, configuration, and firmware compatibility before replacement. ABB’s diagnostic environment provides FirmwareInfo and HardwareInfo fields specifically useful for this comparison.
Q2. Is it safe to hot-swap the while the system is running?
Do not assume that hot-swapping is acceptable simply because the module is mounted on an AC 800M baseplate. Follow the site’s ABB-approved maintenance procedure and the actual cabinet configuration. For a live process, controlled isolation is normally preferable when the communication loss could affect field devices.
Q3. Will replacing the cause my current program to be lost?
The is a communication interface, not the AC 800M CPU where the main control application resides. Even so, preserve the current controller/project configuration before performing maintenance. Export the relevant Control Builder configuration, document PROFIBUS master/slave parameters, and retain current diagnostic screenshots. That turns a hardware swap into a controlled recovery rather than a configuration reconstruction.
Q4. What should I verify before ordering a replacement?
Match , 3BSE030220R1, communication type PROFIBUS DP-V1, the installed CI854 hardware revision, and the existing baseplate arrangement. Also check whether your lifecycle strategy permits replacing the limited-status with the ABB-designated CI854BK01 3BSE049448R1.
Q5. What are the warranty terms if the unit fails after installation?
Warranty coverage depends on the supplier’s purchase terms and the specific unit supplied. For a spare communication interface, retain the serial number, incoming inspection record, installation date, fault description, diagnostic evidence, and test report. Those records materially simplify any post-installation warranty assessment.
