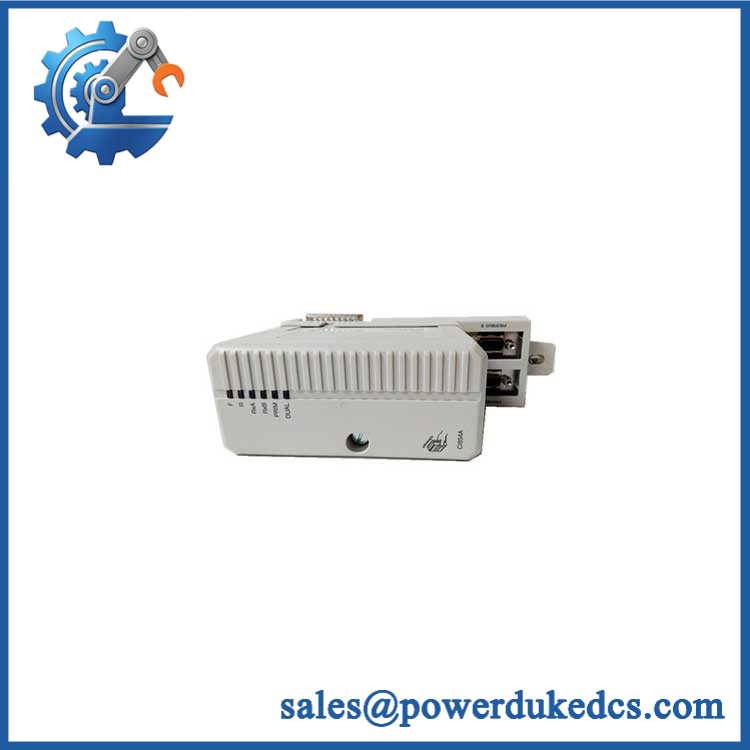

ABB CI854AK01 3BSE030220R1 | AC 800M PROFIBUS Interface

Description

• Brand: ABB
• Full Model Number: CI854AK01 / 3BSE030220R1
• System/Series Family: AC 800M / System 800xA
• One-Sentence Core Function: PROFIBUS-DP/V1 communication interface connecting AC 800M controllers with distributed PROFIBUS field devices
• Top 3 Hardcore Specs: PROFIBUS DP-V1; CI854 communication interface + TP854 baseplate; 59 × 186 × 127.5 mm, 0.7 kg
• Stock Status: New Surplus / Fully Tested Refurbished — exact CI854A hardware revision and TP854 baseplate verified before shipment

Module 3: Commercial-Technical Deep Dive

A failed PROFIBUS interface can make an AC 800M controller appear healthy while an entire fieldbus segment disappears from the process system. The ABB CI854AK01, product ID 3BSE030220R1, is a PROFIBUS-DP/V1 communication interface for the AC 800M controller platform. ABB’s product catalog defines the package as the CI854 communication interface plus TP854 baseplate, and ABB’s System 800xA catalog places it under the PROFIBUS DP communication-interface category. The module provides the controller-side interface required to exchange process data with PROFIBUS field devices.

The physical package is also worth recording during procurement: ABB lists approximately 127.5 mm depth, 186 mm height, 59 mm width, and 0.7 kg net weight for the complete product. More importantly, this is a legacy hardware option. ABB explicitly states that 3BSE030220R1 is not RoHS 2 compliant and is intended as a spare for systems placed on the market before July 22, 2017; for new installations, ABB directs customers to CI854BK01, 3BSE069449R1. The correct replacement strategy is therefore different for an existing plant than for a new design.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Legacy AC 800M PROFIBUS-DP/V1 communication interface package.
• Official identification: CI854AK01 / 3BSE030220R1; package includes CI854 communication interface + TP854 baseplate.
• System family: ABB AC 800M / System 800xA control systems.
• Protocol: PROFIBUS DP-V1 communication interface.
• Firmware requirement: Record the existing CI854/CI854A firmware before replacement. ABB’s configuration documentation exposes firmware information through the module’s web interface, so firmware alignment should be checked rather than assumed.
• Logic rewrite: Normally not required for a verified like-for-like replacement, but PROFIBUS master configuration, slave addressing, cyclic data mapping, diagnostics, and controller configuration must be validated.
• New-installation warning: ABB identifies CI854BK01 / 3BSE069449R1 as the preferred product for new installations. The CI854AK01 should therefore be positioned primarily as an installed-base replacement part.

⚠️ Field Traps (Watch Out)

• CI854 versus CI854A: ABB’s PROFIBUS configuration documentation states that both can appear as CI854K01 in the module information; the Hardware Change Index distinguishes them, with an index beginning 02 indicating CI854A. Verify the hardware change index before treating a similar-looking module as equivalent.
• Baseplate mismatch: The order package includes the TP854 baseplate. Verify the installed baseplate and mechanical connection rather than assuming that only the front communication module matters.
• PROFIBUS addressing: Preserve every slave address, master configuration, bus parameters, and diagnostic setting before replacement. A healthy CI854A can initialize locally while the PROFIBUS network remains offline because the project configuration is wrong.
• GSD/data mapping: Validate the installed GSD files and cyclic I/O mapping after replacement. Incorrect module configuration can shift field data even when the bus shows an apparently healthy state.
• Network termination: Inspect PROFIBUS cable shielding, termination, connectors, and topology. Fault isolation should begin at the physical layer before changing controller software.
• ESD and power isolation: Use grounded ESD controls and follow the applicable AC 800M maintenance and plant isolation procedures.

ABB CI854AK01 3BSE030220R1

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB CI854AK01 3BSE030220R1 focuses on hardware identity, PROFIBUS communication, and the CI854A/TP854 assembly:

1. OEM anti-counterfeit visual inspection — verify ABB markings, CI854AK01 designation, complete 3BSE030220R1 product ID, revision labels, serial information, connector construction, and module condition.
2. Package verification — confirm that the supplied package contains the appropriate CI854/ communication interface and baseplate.
3. Hardware-revision capture — record the Hardware Change Index and compare it with the customer’s installed module. ABB specifically documents this index as a method of distinguishing from .
4. Mechanical inspection — inspect DIN-rail/baseplate interfaces, locking features, connectors, terminals, and enclosure surfaces.
5. PCB inspection — check for corrosion, contamination, cracked solder joints, connector damage, and evidence of overheating.
6. Power-on self-test (POST) — install the module in a compatible AC 800M test environment and verify startup behavior, diagnostic indicators, and abnormal current draw.
7. Firmware verification — record the installed firmware information and compare it with the customer’s existing module where accessible.
8. PROFIBUS physical-layer test — establish a controlled PROFIBUS connection and check link integrity, cable continuity, shielding, and termination.
9. Master initialization test — configure the module as the appropriate PROFIBUS master in an isolated AC 800M test system and confirm successful bus startup.
10. Slave communication handshake — connect representative PROFIBUS slave devices and verify cyclic process-data exchange.
11. DP-V1 diagnostic test — where the test equipment supports it, verify representative acyclic diagnostic or parameterization transactions.
12. Data-mapping verification — compare representative input/output data against the configured slave modules and confirm correct data positions and scaling.
13. Fault-response test — introduce a controlled communication interruption and verify that the AC 800M system reports the expected bus diagnostic condition.
14. Extended observation — monitor cyclic communication for intermittent dropouts, diagnostic events, or abnormal module temperature.
15. Configuration record — document product ID, hardware change index, firmware version, test topology, slave addresses, communication results, and photographs.
16. Final ESD packaging — protect the communication module, baseplate, connectors, and PROFIBUS interface against ESD, dust, moisture, and mechanical impact.

ABB’s current product information provides the strongest fixed acceptance points: 3BSE030220R1, , PROFIBUS-DP/V1, plus , and the stated physical dimensions and weight.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 3BSE030220R1 obsolete?

It is a legacy spare part rather than ABB’s preferred choice for new installations. ABB explicitly states that the part is not RoHS 2 compliant and is intended for repair, reuse, functionality updates, or capacity upgrades of systems placed on the market before July 22, 2017. For new installations, ABB specifies CI854BK01 / 3BSE069449R1 instead.

2. Does support PROFIBUS DP-V1?

Yes. ABB identifies 3BSE030220R1 specifically as the PROFIBUS-DP/V1 interface and packages it with the baseplate.

3. What is included with 3BSE030220R1?

ABB’s product description states that the package includes the communication interface and baseplate. Verify both items when receiving surplus or replacement inventory.

4. Is the same as ?

Not exactly. ABB documents both and within the same general product information, and the Hardware Change Index is used to distinguish the hardware generation. A change index beginning with 02 indicates in the cited configuration guide.

5. Can be hot-swapped?

Do not assume live replacement simply because the module is installed on a modular AC 800M system. Any energized replacement procedure must be explicitly supported by the installed ABB system documentation and plant maintenance procedure. For normal service work, isolate the affected equipment and follow the site’s approved LOTO and control-system change procedure.

6. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact physical module supplied. Technical support should cover part-number verification, hardware-revision checks, baseplate compatibility, firmware identification, PROFIBUS addressing, GSD/data mapping, communication testing, and documented pre-shipment QA results. It should not substitute for AC 800M engineering, PROFIBUS commissioning, or site control-system change authorization.
