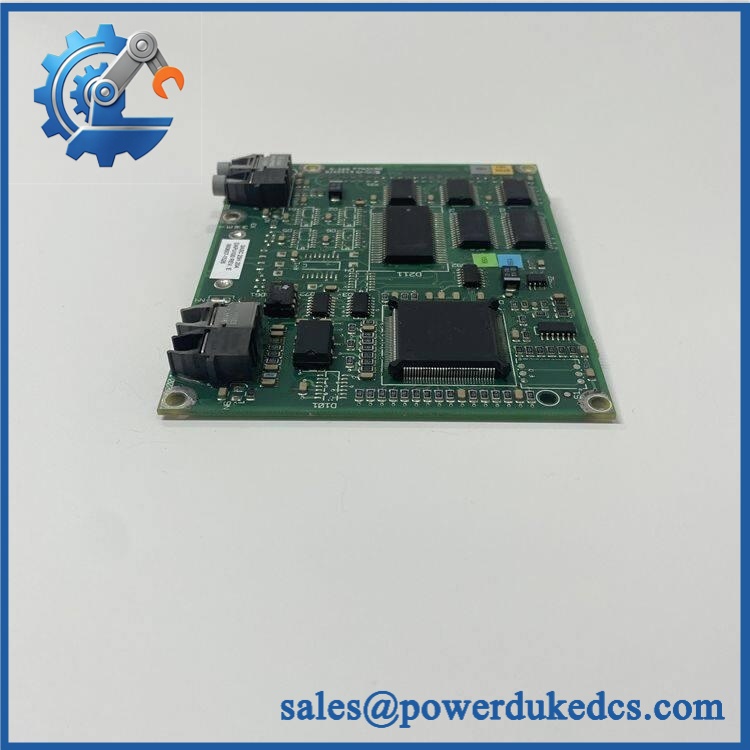

ABB DAPU100 3ASC25H204 | Original ABB Control Board Warranty

Description

• Brand: ABB
• Full Model Number: DAPU 100 / 3ASC25H204
• System/Series Family: ABB ASTAT Motor Control and Drive Systems
• Core Function: I/O control board used for signal handling and control functions within compatible ABB motor-control equipment
• Top 3 Hardcore Specs: Product ID 3ASC25H204; ABB Type Designation DAPU 100; Net weight 80 g
• Stock Status: New Surplus — exact board revision and physical condition to be confirmed before shipment

ABB’s product information identifies 3ASC25H204 as DAPU 100, with the catalog description “DAPU 100; Control board, I/O.” ABB documentation also lists it as a spare part associated with motor-control equipment.

Module 3: Technical Product Introduction

A failed I/O control board in an older ABB motor-control system can interrupt signal processing even when the main power stage remains serviceable. The ABB DAPU 100, 3ASC25H204 is identified as an I/O control board and is listed in ABB’s spare-parts documentation for DARA 1000, DARA 1001, DAPM 100, and DAPM 101 applications. This makes exact identification important when restoring an existing ASTAT installation rather than replacing the complete drive assembly.

The confirmed ABB product record gives the 3ASC25H204 product ID, DAPU 100 type designation, “Control board, I/O” description, and 80 g net weight. It also identifies Finland and Sweden as possible countries of origin and gives customs tariff number 85389091. Some secondary listings claim additional channel counts, voltage ratings, encoder functions, or isolation specifications, but these details are not established by the ABB product record reviewed here. Those values should therefore be checked against the actual board revision and system documentation before being used for engineering substitution.

Module 4: Application Scenarios & Field Realities

• In an ABB DARA 1000 or DARA 1001 installation, the DAPU 100 can be encountered as part of the control electronics supporting the motor-control architecture. ABB’s spare-parts documentation specifically associates 3ASC25H204 with these equipment families.
• For DAPM 100 maintenance, this board is particularly relevant when the I/O control section is suspected rather than the power semiconductor section. The ABB spare-parts list identifies DAPU 100 as a component used with DAPM 100.
• During a planned shutdown, technicians should record the complete board marking before removal. The model name alone is not enough; retain the 3ASC25H204 identification and any visible revision or assembly markings.
• When troubleshooting an I/O-related fault, verify field wiring, connectors, control power, and the associated I/O circuitry before declaring the DAPU 100 defective. An apparent board failure can originate upstream or at the connection interface.

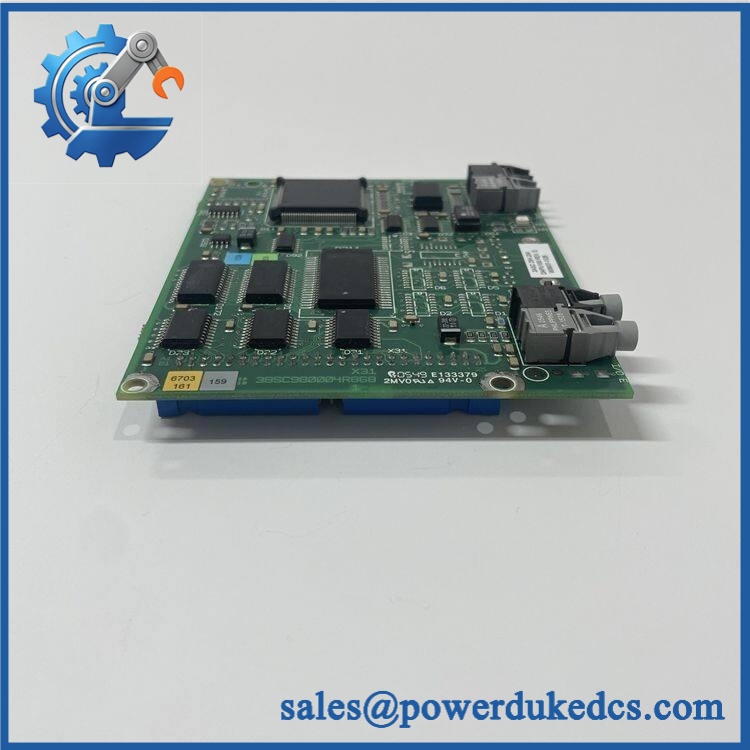

ABB DAPU100 3ASC25H204

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Trap 1 — Application mismatch:
ABB’s spare-parts documentation identifies DAPU 100 specifically with DARA 1000, DARA 1001, DAPM 100, and DAPM 101 applications. Do not assume that another ABB I/O board with a similar designation can replace it across the entire ASTAT family.

Field Trap 2 — Do not rely on secondary specifications:
Some commercial listings describe 3ASC25H204 with detailed analog channels, encoder inputs, 2 kV isolation, and other functions. Those claims should not be treated as universal specifications without matching the exact hardware revision. For a legacy controller, the installed system documentation and actual PCB markings take priority.

Installation note: Isolate the equipment according to the plant’s maintenance procedure before removing the board. Use ESD protection, photograph connector positions, inspect the mating contacts, and verify that the replacement is fully seated before restoring control power.

Module 6: Quality Assurance SOP

1. OEM identification inspection — Verify the ABB DAPU 100 designation and 3ASC25H204 product identification against the purchase requirement.
2. Physical PCB inspection — Check the board, connectors, terminals, components, solder joints, and mounting points for corrosion, impact damage, contamination, cracked joints, or signs of previous overheating.
3. OEM anti-counterfeit visual inspection — Compare ABB labeling, PCB construction, component arrangement, identification markings, and assembly references with known ABB hardware.
4. Power-on self-test (POST) — Where a suitable ASTAT test environment is available, energize the board under controlled conditions and inspect the applicable status indicators and system diagnostics.
5. I/O communication verification — Connect the DAPU 100 within an appropriate compatible test setup and verify communication between the I/O control board and the host control architecture.
6. Signal-path verification — Where the test fixture permits, verify representative I/O responses and confirm that abnormal status indications are not present.
7. Revision and application check — Confirm the board revision against the customer’s installed equipment before release. The ABB spare-parts documentation specifically links this part to DARA and DAPM equipment families.
8. Final traceability record — Photograph the complete board marking, record the part number and visible revision information, document the test result, and inspect the final ESD-safe packaging before shipment.

For 3ASC25H204, the strongest verified identification is ABB DAPU 100, Product ID 3ASC25H204, Control board, I/O, 80 g net weight. This is the information that should anchor the purchasing and replacement record; unsupported secondary specifications should not be presented as confirmed engineering data.
