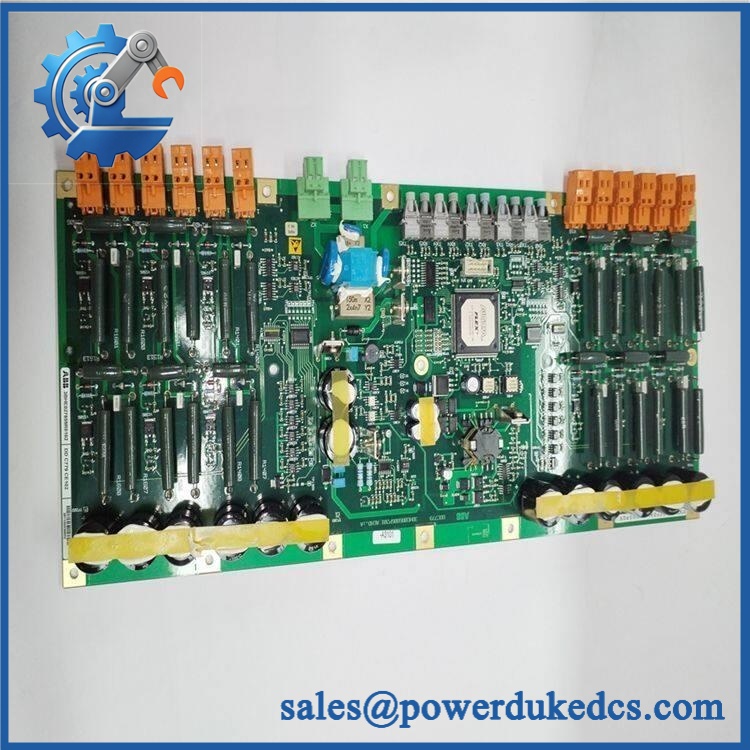

ABB DDC779CE102 3BHE027859R0102 | Digital Drive Controller Board

Description

• Brand: ABB
• Full Model Number: DDC779CE102 3BHE027859R0102
• System/Series Family: ABB ACS5000 / ACS6000 Medium-Voltage AC Drives
• One-Sentence Core Function: Digital drive controller board responsible for control and coordination functions within ABB medium-voltage drive systems
• Top 3 Hardcore Specs: Digital Drive Controller; ACS5000/ACS6000 application; ABB Type Designation DD C779 CE102
• Stock Status: New surplus / fully tested refurbished, subject to exact inventory condition

ABB’s product data identifies 3BHE027859R0102 as DD C779 CE102, with the catalog description “DD C779 CE102; RETRO- PINT (ACS)”. ABB-related catalog data places the part in the ACS5000 and ACS6000 medium-voltage drive family and identifies 3BHB006805R0002 / 3BHE006805R0002 as replaced product IDs.

Module 3: Commercial-Technical Deep Dive

A controller fault inside an ACS5000 or ACS6000 drive can stop an entire medium-voltage process train, yet the failed item may be one specific control assembly rather than the power section itself. ABB DDC779CE102 3BHE027859R0102 is identified as a Digital Drive Controller and is associated with ABB’s ACS5000 and ACS6000 drive platforms. The part is therefore relevant when restoring the control layer of an existing drive installation without replacing unrelated power-electronic assemblies. ABB’s catalog description specifically identifies it as a retrofit part for ACS applications, which is important when maintaining legacy drive hardware.

The commercial value comes from maintaining the existing drive architecture and reducing unnecessary migration work. Available technical catalogs describe the unit as a controller/PCB assembly, but published dimensions and weight vary substantially between secondary sources, so those figures should not be treated as universal specifications for every shipment. One ABB-linked catalog records a 1.3 kg net weight, while another reseller reports a PCB-only configuration at 0.19 kg; this discrepancy strongly suggests that packaging, assembly configuration, or catalog methodology differs. For procurement and cabinet-fit decisions, use the physical nameplate and exact assembly drawing for the installed drive.

ABB DDC779CE102 3BHE027859R0102

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Digital Drive Controller / control PCB assembly for ABB ACS5000 and ACS6000 medium-voltage drives.
• Firmware flash: Not automatically required for a same-part replacement; drive software compatibility must still be checked against the installed controller configuration.
• Logic rewrite: Normally not required when replacing the same hardware revision within the same drive architecture.
• Drop-in status: Potentially direct when replacing the same 3BHE027859R0102 / DD C779 CE102 assembly, but verify the complete drive configuration and revision before installation.
• Replacement history: ABB-related catalog data identifies 3BHB006805R0002 and 3BHE006805R0002 as replaced product IDs. Do not substitute either legacy identifier solely because the numerical relationship appears similar.

⚠️ Field Traps (Watch Out)

1. Do not confuse the controller board with the power section.
The DDC779CE102 is associated with drive control functions. It is not a replacement for the inverter power modules, gate units, DC-link components, or other high-voltage assemblies. Treating a controller fault as a power-stage fault can lead to unnecessary component replacement.

2. Medium-voltage isolation is the first safety boundary.
and ACS6000 systems involve hazardous electrical energy. A board replacement must follow the applicable ABB shutdown, lockout/tagout, grounding, stored-energy discharge, and access procedure. Never rely on a generic PLC-style power-down sequence for a medium-voltage drive.

3. Verify the exact retrofit revision.
ABB’s catalog explicitly classifies this part as RETRO- PINT (ACS) and records predecessor product IDs. A visually similar controller board with a different part number or revision should not be installed without confirming ABB compatibility for the exact drive type.

4. Treat connector and configuration data as controlled information.
Secondary listings publish conflicting specifications for dimensions, weight, operating voltage, and system classification. Use the drive documentation and physical board markings as the controlling references, especially when replacing hardware during a shutdown window.

Module 5: Quality Assurance SOP

Each ABB DDC779CE102 3BHE027859R0102 unit should pass a documented pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Verify ABB labeling, DD C779 CE102 type designation, 3BHE part number, board construction, connectors, identification labels, and revision markings.
• Part-number verification: Match 3BHE027859R0102 against the purchase order and, where available, the installed / drive BOM.
• Revision inspection: Record all visible PCB revision and assembly identifiers before release. This is particularly important because the part has documented predecessor IDs.
• Mechanical inspection: Check PCB surfaces, connector housings, mounting points, fasteners, coatings, and signs of corrosion, contamination, impact, overheating, or unauthorized rework.
• Power-on self-test (POST): Conduct POST only within an approved ABB-compatible test environment. Verify expected controller status indications and check for abnormal diagnostic or fault states.
• Communication handshake verification: Verify controller-level communication with the associated drive control architecture and confirm that expected drive-status information is exchanged without communication faults.
• Functional verification: Where the test fixture permits, validate controller initialization and relevant control signals without exposing personnel to hazardous medium-voltage energy.
• Final QC: Photograph the part number and revision label, record all test results, place the board in ESD-safe packaging, and seal the shipment with a documented QC status.

Module 6: CRO-Driven Buyer FAQ

1. What system uses ABB DDC779CE102 3BHE027859R0102?

ABB-related catalog data identifies DD C779 CE102 / 3BHE027859R0102 with the medium-voltage drive family. The ABB catalog describes it as a retrofit part for ACS applications.

2. Is 3BHE027859R0102 a complete drive replacement?

No. It is a Digital Drive Controller / control-board assembly, not an entire or drive. The power stage, cooling system, gate units, DC-link components, and other drive assemblies remain separate hardware.

3. Can this board be hot-swapped?

Do not assume hot-swap capability. Because the board belongs to a medium-voltage drive system, replacement should follow the applicable ABB isolation procedure, including lockout/tagout and verification of the absence of hazardous stored energy.

4. Does replacing DDC779CE102 require firmware or parameter changes?

A same-part replacement does not inherently require an application logic rewrite. However, controller firmware, drive software version, parameter backup, hardware revision, and system configuration should be compared before commissioning. A replacement controller that differs materially from the installed revision may require additional engineering work.

5. What warranty and technical support are provided?

Warranty duration should be stated on the quotation for the exact stock condition supplied. Technical support should cover part-number verification, revision identification, inspection/test documentation, compatibility review, and replacement guidance within the documented ACS drive architecture. Medium-voltage commissioning, energized troubleshooting, and site safety validation remain the responsibility of appropriately qualified personnel.
