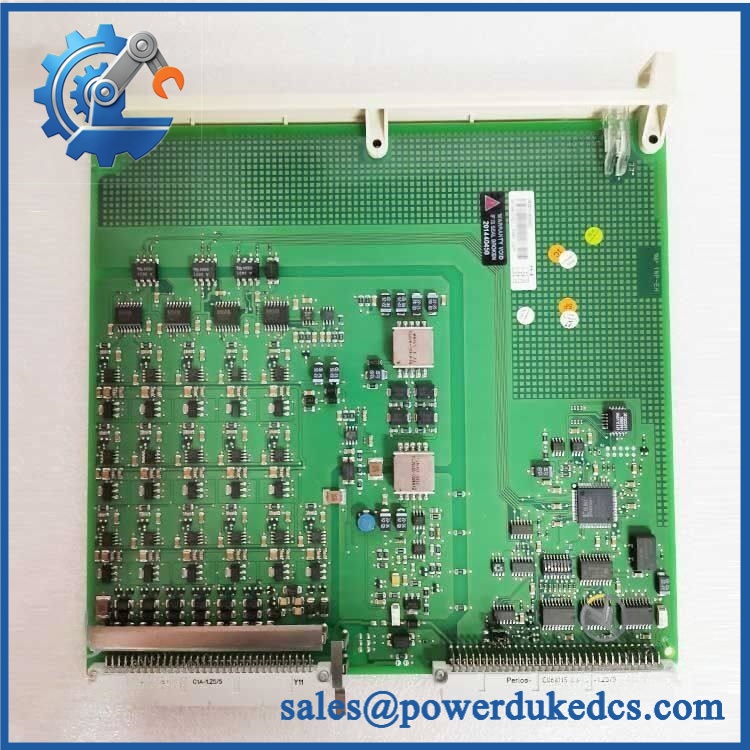

ABB DSAO130A 3BSE018294R1 | ABB Analog Output Unit for DCS Spare Stock

Description

• Model: DSAO130A
• ABB Product ID: 3BSE018294R1
• Brand: ABB
• Series: S100 I/O
• Part Type: Analog Output Module
• Core Function: Provides analog output channels for transmitting control signals from an ABB control system to field devices.
• Key Specs: 8 analog output channels, current/voltage output capability, S100 I/O architecture, and 24 VDC system power.
• Typical Application: Process-control loops, valve positioning, actuator control, drives, and other analog field-command applications.

Product Introduction

A failed analog output channel can stop a control loop even when the DCS processor and field transmitter remain fully operational. In a legacy ABB installation, replacing the correct I/O assembly is often the fastest way to restore the loop without disturbing the rest of the control architecture.

The ABB DSAO130A 3BSE018294R1 is an 8-channel analog output module associated with ABB’s S100 I/O system. It provides analog output signals between the control-system electronics and connected field equipment.

Typical applications include control valves, actuators, variable-speed equipment, and other devices requiring a continuously variable command signal. For maintenance teams, the complete DSAO130A / 3BSE018294R1 identification is important because S100 I/O assemblies exist in multiple channel and signal configurations.

Core Technical Specifications

ABB DSAO130A 3BSE018294R1

Application Scenarios & Pain Points

In a chemical processing plant, an analog output channel may control a modulating valve that regulates flow, pressure, or temperature. A single failed output can force the loop into a fixed state and affect production stability.

For oil and gas facilities, DSAO130A can be used within legacy ABB I/O architectures where continuous analog commands are required. The familiar 4–20 mA signal remains common for industrial valve and actuator interfaces.

On a paper machine, analog outputs can command actuators and process-control equipment across multiple machine sections. Keeping a spare 8-channel module available can reduce troubleshooting time when one or more output channels become abnormal.

During a plant turnaround, technicians can replace a defective I/O module while the associated control cabinet is already under planned maintenance. Channel-by-channel loop checks should follow installation before the equipment is returned to automatic control.

For installations operating above 50°C ambient temperature, inspect cabinet ventilation and terminal connections carefully. Elevated temperature combined with aging electronics can contribute to intermittent analog output behavior.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Analog output remains at 0 mA
→ Diagnosis: Check the configured output channel, module power, field wiring, terminal connections, and controller command. If the command is present but the physical output remains at zero, the output channel may have failed.
→ Action: Verify the loop externally and replace the DSAO130A when the fault follows the module.

Symptom/Code: Output fixed at approximately 20 mA
→ Diagnosis: Check the control-system command, channel configuration, output load, and wiring. A persistent full-scale output can indicate an output-stage fault or incorrect configuration.
→ Action: Perform channel-level testing and replace the module if hardware failure is established.

Symptom/Code: Output signal fluctuates unexpectedly
→ Diagnosis: Inspect the 24 VDC supply, field wiring, shielding, terminal connections, output load, and controller command. Compare the commanded value with the measured physical output.
→ Action: Isolate the signal path and replace the if the instability remains localized to the module.

Cross-Reference & Lifecycle Migration

Product Identification

The primary procurement reference is:

• ABB Model:
• ABB Product ID: 3BSE018294R1
• I/O Family:
• Function: Analog Output
• Channel Count: 8
• Signal Class: Current / Voltage Analog Output

The complete 3BSE018294R1 number should remain on the quotation and purchase order. Do not substitute a generic “DSAO130” designation because the suffix identifies the particular hardware revision/configuration.

Related I/O Hardware

The ABB family includes multiple digital and analog I/O assemblies. Modules with similar names can differ in channel count, input/output direction, signal type, or electrical configuration.

For a replacement, compare:

• Complete ABB product number
• Module designation
• Channel count
• Current/voltage output configuration
• Terminal arrangement
• I/O rack position
• Existing control-system configuration

Lifecycle Strategy

belongs to a legacy ABB I/O architecture. Plants still operating equipment should consider maintaining tested spare modules because a failed I/O board can become a procurement issue when the installed control system is approaching the end of its commercial lifecycle.

For buffer stock, record the module’s part number, hardware revision, rack location, channel assignments, and associated loop documentation.

Field Engineer’s Tech Notes

Tech Note 1 — Check the loop load before replacing the module.
A healthy output module can appear faulty when the field circuit has an open wire, incorrect load, damaged positioner, or wiring problem. Measure the output directly at the appropriate terminals and compare it with the controller’s commanded value before condemning the .

Tech Note 2 — Verify the signal range channel by channel.
Do not assume every analog output loop uses the same scaling. One channel may be configured for 4–20 mA while another application uses a voltage output. Record the existing configuration before replacement (this prevents an otherwise good module from being returned to service with incorrect scaling).

Strict QA & Testing SOP

1. Part Number Verification
   Confirm / 3BSE018294R1 against the purchase order.
2. Visual Inspection
   Check the PCB, housing, connectors, terminals, labels, and mounting hardware.
3. Revision Documentation
   Record all visible ABB identification and hardware revision markings.
4. Terminal Inspection
   Examine signal terminals and connectors for corrosion, deformation, looseness, or contamination.
5. Power Check
   Verify the applicable 24 VDC supply using a controlled test setup.
6. Startup Test
   Confirm normal module startup and status indications.
7. Channel Test
   Test all eight analog output channels individually.
8. Current Output Test
   Apply representative output commands and measure the resulting current, including common 4–20 mA operating points.
9. Voltage Output Test
   Where applicable, verify the voltage-output function across representative test points.
10. Linearity Verification
    Test multiple points across the configured output range and compare measured values with expected values.
11. Load Test
    Connect an appropriate test load and monitor output stability under operating conditions.
12. Extended Run Test
    Operate the module for an appropriate period while monitoring output stability and thermal behavior.
13. Final QA Record
    Record channel-by-channel readings, identification information, test date, and inspection results.
14. ESD-Safe Packaging
    Place the tested module in anti-static packaging and use suitable impact protection.

Test videos can be provided when available, along with product photographs and inspection records.

Buyer’s FAQ

Q1. Can be hot-swapped?

Do not assume energized replacement capability. Follow the ABB installation procedure and the site’s electrical-safety requirements before removing the module. For critical analog loops, place the affected control loop into an appropriate maintenance state first.

Q2. Is the same as every DSAO130 module?

No. The complete identification matters. should be used as the purchasing reference so the correct hardware configuration and revision are supplied.

Q3. What type of signal does provide?

is an analog output module designed for continuously variable field signals. Common industrial applications include 4–20 mA current loops and voltage-based control signals, depending on the configured application.

Q4. How many analog outputs are available?

The is an 8-channel analog output module, allowing multiple independent analog control loops to be handled from one I/O assembly.

Q5. What should I check before replacing it?

Record the existing channel assignments, output ranges, scaling, field wiring, terminal arrangement, and control-system configuration. This information should be retained before removing the original module.

Q6. What should I request when buying a replacement?

Specify ABB 3BSE018294R1, required quantity, product condition, and destination. For a critical DCS application, request actual product photos, nameplate information, test records, warranty terms, and return conditions with the quotation.
