Module 2: The 10-Second Buyer’s Brief

• Brand: ABB
• Full Model Number: DSAX452 5712289-A
• System / Series Family: ABB Advant OCS / Advant S400 I/O
• Core Function: Remote analog input/output basic unit for process-control signal acquisition and output
• Top 3 Hardcore Specs: 14 differential analog inputs / 12-bit resolution / 6 analog outputs / 10-bit resolution
• Analog Input Ranges: 0 to ±10 V / 0 to ±20 mA
• Analog Output Ranges: 0 to +10 V / 0 to +20 mA
• Product Type: Remote In/Out Basic Unit
• Exchange Number: EXC5712289-A
• Net Weight: 2.7 kg
• Stock Status: New Surplus — final physical stock condition to be confirmed before quotation

Module 3: Technical Product Introduction

When an Advant S400 I/O point fails, the problem is not limited to the failed channel. A replacement must match the existing I/O architecture and signal configuration, otherwise field wiring and control-system commissioning can become the larger job. The ABB DSAX452 5712289-A is a Remote In/Out Basic Unit designed for the Advant OCS / S400 I/O family. It provides 14 differential analog inputs with 12-bit resolution and 6 analog outputs with 10-bit resolution. Input ranges include 0 to ±10 V and 0 to ±20 mA, while the analog outputs support 0 to +10 V and 0 to +20 mA.

The useful advantage here is channel density rather than a claimed increase in processor speed. Fourteen differential analog inputs and six analog outputs allow one DSAX452 to handle 20 analog signal channels. The documented net weight is approximately 2.7 kg, and the ABB product information identifies 5712289-A as the product ID with EXC5712289-A as the exchange number. For maintenance work, verify the installed cabinet documentation and exact spare designation before substitution—especially where older S400 hardware has been modified during previous plant upgrades.

Module 4: Application Scenarios & Field Realities

• For process transmitters: The 14 differential analog inputs are suited to installations where multiple voltage or current signals must be acquired from field instruments. Differential inputs matter when cabinet grounding, cable routing, or long field runs create the possibility of unwanted common-mode effects.
• At valve and actuator control points, the six analog outputs can be used for 0–10 V or 0–20 mA control signals. Confirm the actual actuator input specification before reconnection; a nominally compatible signal range does not automatically confirm electrical compatibility with the final device.
• In distributed process-control cabinets, the DSAX452 can consolidate a relatively large group of analog channels into one S400 I/O unit. That can simplify spare-part planning when the failed hardware must be replaced without redesigning the entire cabinet.
• During brownfield maintenance shutdowns, the main concern is usually identification rather than installation time. Match the DSAX 452 designation, 5712289-A product ID, exchange number, installed I/O configuration, and cabinet documentation before removing the existing unit. A visual match alone is not sufficient.

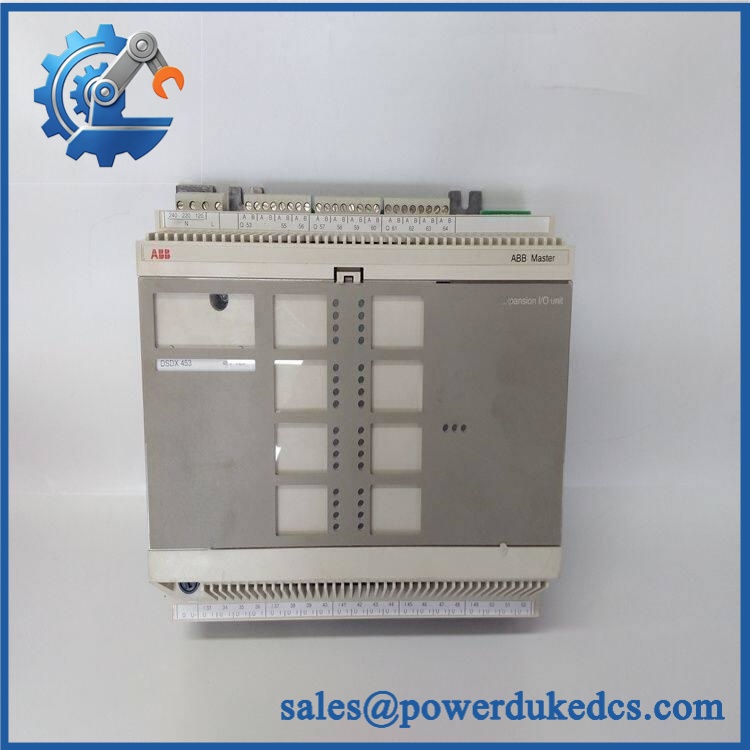

ABB DSAX452 5712289-A

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Part-number confusion: DSAX452 and 5712289-A identify the same basic unit in the available ABB product information, while EXC5712289-A is listed as the exchange number. Do not treat these identifiers as interchangeable with another DSAX or DSDX module without checking the system documentation.

Signal-range verification: The documented DSAX452 inputs and outputs have different resolutions and signal ranges. Inputs are specified as 12-bit, 0 to ±10 V / 0 to ±20 mA; outputs are 10-bit, 0 to +10 V / 0 to +20 mA. Check each loop drawing before landing wires. A voltage/current mismatch can produce an apparently healthy module with an unusable process signal.

Do not assume communication specifications: Available product documentation identifies the DSAX452 as an Advant S400 Remote In/Out Basic Unit but does not establish Modbus RTU or another generic fieldbus protocol for this module. System-level communication should therefore be verified from the installed Advant architecture and engineering documentation rather than inferred from third-party product listings.

Module 6: Quality Assurance SOP

Our pre-shipment inspection for an ABB DSAX452 5712289-A should follow a controlled hardware-verification sequence:

1. Part-number verification — Compare the physical label against DSAX452 and 5712289-A identification. Record serial number, revision markings, and visible manufacturing information.
2. OEM anti-counterfeit visual inspection — Examine label quality, connector construction, PCB markings, enclosure condition, fasteners, and manufacturing identifiers. Any inconsistent marking or unexplained alteration is flagged for review.
3. Mechanical inspection — Check connectors, terminal interfaces, mounting points, enclosure condition, and evidence of impact, corrosion, moisture, or unauthorized repair.
4. Power-on self-test (POST) — Where the available test setup permits, power the unit under controlled conditions and inspect the applicable status indicators for expected operating behavior, including ERR/RUN indications where fitted.
5. Analog channel verification — Test the available input and output channels against the documented voltage/current ranges. Record measured response and identify any channel outside the acceptance tolerance defined by the test procedure.
6. Configuration and identification cross-check — Confirm the tested hardware corresponds to the quoted DSAX452 5712289-A variant rather than a visually similar S400 I/O module.
7. Communication / system handshake verification — Where the customer’s compatible Advant test environment is available, verify that the unit is recognized correctly by the control-system configuration and that I/O data is exchanged as expected.
8. Final inspection and packaging — Photograph the unit, record test results, protect connectors and exposed interfaces, and package the module against mechanical shock and electrostatic discharge during transportation.

The key acceptance criterion is traceable evidence: part identification, physical inspection, electrical test results, and final packing records should correspond to the exact unit shipped. The documented ABB specification identifies DSAX452 5712289-A as a Remote In/Out Basic Unit with 14 differential analog inputs, 6 analog outputs, and a 2.7 kg net weight.
