ABB DSDX453 5716075 | Remote Digital I/O Expansion Unit

Description

• Brand: ABB
• Full Model Number: DSDX453 5716075
• System/Series Family: ABB Advant Master / Advant OCS
• One-Sentence Core Function: Remote I/O expansion unit for acquiring discrete field inputs and controlling relay-output loads
• Top 3 Hardcore Specs: 20 digital inputs; 48 VDC input class for the documented -AN variant; 12 relay outputs rated 0.1–3 A
• Stock Status: New surplus / fully tested refurbished, subject to exact suffix and inventory confirmation

Module 3: Commercial-Technical Deep Dive

When an older ABB Advant installation runs short of discrete I/O, the DSDX453 addresses the hardware expansion problem without forcing an immediate controller migration. ABB identifies the DSDX 453 family as a remote input/output unit, while available technical records for 5716075-AN specify 20 digital inputs and 12 relay outputs. The documented output range is 0.1–3 A, allowing the relay channels to interface with suitable field loads. This is a practical spare for legacy cabinets where keeping the existing I/O topology intact matters more than replacing a functioning control platform.

The measurable value is channel density and replacement speed. One DSDX453 assembly provides 32 discrete I/O points in the documented configuration: 20 inputs plus 12 relay outputs. Published ABB-related data for the 5716075-AN variant lists a physical size of about 198 × 216 × 90 mm and a net weight around 2.8 kg. Another catalog records slightly different dimensional values, so cabinet-fit calculations should be based on the physical unit and the exact suffix being purchased rather than a generic database entry. (That distinction is important with long-lived Advant hardware.)

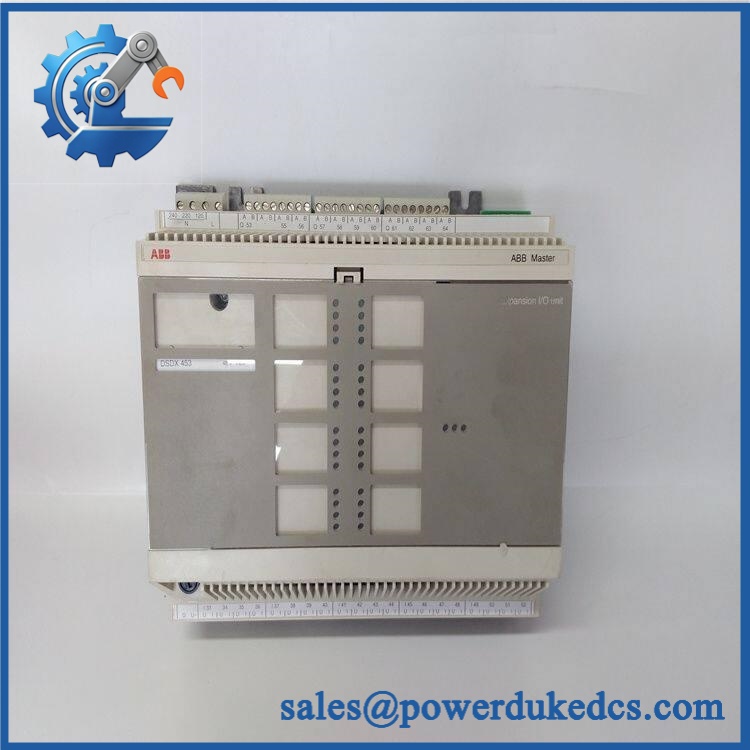

ABB DSDX453 5716075

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Remote digital I/O expansion unit for ABB Advant-class control hardware.
• Firmware flash: Not normally applicable as a board-level replacement procedure, but the installed controller and I/O configuration must recognize the replacement unit.
• Logic rewrite: Normally unnecessary for a same-type replacement with matching configuration.
• Drop-in status: Potentially direct when replacing the same DSDX453 variant in the same system position, but verify the complete part number and wiring before installation.
• Exact suffix warning: The user-supplied number is 5716075, while multiple technical references identify the full unit as 5716075-AN. ABB also lists other 5716075 variants, including DSDI 451 5716075-A, showing that the base numeric sequence alone is not enough to establish interchangeability.

⚠️ Field Traps (Watch Out)

1. Do not mix 24 VDC and 48 VDC input data.
Online listings are inconsistent: one listing describes a 5716075-AN unit as 20 DI, 24 VDC, while another technical record identifies the DSDX453 5716075-AN as 20 DI, 48 VDC. The latter also identifies 12 relay outputs at 0.1–3 A. Because this discrepancy can affect cabinet wiring and field-device compatibility, use the nameplate, cabinet drawings, and applicable ABB documentation for the exact unit before energization.

2. Verify the output load before reconnecting field wiring.
The documented 5716075-AN configuration specifies 12 relay outputs with a 0.1–3 A range. Confirm the actual load type, voltage, current, suppression components, and terminal assignment before commissioning. Do not treat the 3 A figure as a universal rating for every voltage or load category.

3. Protect the I/O electronics during replacement.
Use ESD-safe handling, isolate field power according to the site procedure, label conductors before removal, and verify every terminal against the cabinet drawing. A wiring mistake on a remote I/O replacement can create secondary faults that look like a failed module.

Module 5: Quality Assurance SOP

Every ABB DSDX453 entering controlled inventory should pass a documented pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Check ABB labeling, type designation, part-number markings, connector geometry, enclosure construction, and overall manufacturing quality.
• Exact part-number verification: Compare the physical marking with the purchase order and confirm whether the required unit is or another 5716075 variant.
• Mechanical inspection: Check enclosure condition, mounting points, connector bodies, terminal interfaces, fasteners, corrosion, impact damage, and evidence of unauthorized repair.
• I/O configuration verification: Confirm the expected 20 digital input / 12 relay output arrangement for the applicable variant.
• Power-on self-test (POST): Where the complete test environment supports it, power the module through the appropriate ABB system interface and check expected module status indications for ERR/RUN or equivalent diagnostic states.
• Communication handshake verification: Confirm that the host system recognizes the remote I/O unit and that expected input/output status information is exchanged correctly.
• Channel test: Exercise digital input channels individually and verify relay-output switching against the approved test procedure. Record anomalous channels rather than releasing a marginal unit as tested.
• Final QC: Photograph the identification label, record inspection results, use ESD-safe packaging, protect connectors from impact, and attach the QC status record to the shipment.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 5716075 still available as an authentic replacement?

The remains identifiable in current technical and spare-parts references as an ABB Advant-family remote I/O unit. The important procurement point is the complete suffix. References specifically identify 5716075-AN, while ABB spare-parts documentation also shows other 5716075-numbered hardware. Match the installed nameplate before purchasing.

2. Can the be hot-swapped?

Do not assume hot-swap capability from the model number. Live replacement depends on the specific Advant architecture, carrier/interface design, field-power arrangement, and approved ABB maintenance procedure. A controlled power-down replacement is the safer default unless system documentation explicitly authorizes live removal.

3. Does replacing the require a logic rewrite?

A same-variant replacement normally should not require an application rewrite. The critical checks are the exact hardware suffix, I/O addressing, host configuration, field termination, and module recognition after installation.

4. Is 5716075 the same as DSDI 451 5716075-A?

No assumption should be made from the shared 5716075 base number. ABB spare-parts material identifies 5716075-A as DSDI 451, while technical records identify 5716075-AN as . Treat these as different part numbers unless ABB documentation for the specific system confirms interchangeability.

5. What warranty and technical support are included?

Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover part-number verification, inspection documentation, test records, system compatibility checks, and installation guidance within documented hardware limits. Site-specific control modifications, field rewiring, and energized maintenance remain the responsibility of qualified personnel.
