ABB DSPC170 57310001 | ABB Master Processor Module Warranty

Description

Module 2: The 10-Second Buyer’s Brief

• Brand: ABB
• Full Model Number: DSPC170
• Ordering Number: 57310001-GL / 57310001 family
• System/Series Family: ABB Master / MP 200
• Core Function: Central processor module for ABB Master MP 200 control systems
• Top 3 Hardcore Specs: Processor module | MP 200 architecture | Approx. 0.95–1.4 kg reported unit weight
• System Role: CPU / central processing
• Stock Status: New surplus or refurbished availability subject to current warehouse confirmation

The DSPC170 is identified as an ABB Master MP 200 processor module, with 57310001-GL documented as a corresponding ordering number. Published reference data places its weight around 0.95 kg to 1.4 kg depending on the source and packaging or configuration basis.

Module 3: Technical Product Introduction

A failed central processor on an installed ABB Master MP 200 system is not a component-level nuisance; it can stop the controller from executing the application and coordinating the associated control architecture. The ABB DSPC170 is the processor module used in the MP 200 family, making it a relevant spare when an existing CPU board has failed or when an obsolete installation requires a matched replacement. The documented part family includes DSPC170 and ordering reference 57310001-GL, so the full board identification should be checked against the nameplate before purchase.

For replacement planning, the important advantage is not an advertised processor-speed figure but architectural continuity. Keeping the same MP 200 processor family can avoid an unnecessary controller redesign when the installed application still depends on the original ABB Master platform. Publicly listed dimensional references are approximately 5.1 × 25.4 × 25.4 cm, while published unit-weight figures vary from about 0.95 kg to 1.4 kg. Treat those values as logistics references rather than installation tolerances—your exact board revision and enclosure arrangement should govern the final check.

Module 4: Application Scenarios & Field Realities

• During a process-control CPU failure, the DSPC170 is relevant where the existing ABB Master MP 200 installation must be returned to service without replacing the complete controller architecture. The practical objective is simple: match the processor board revision and existing system configuration before energizing the replacement.
• On older plant control cabinets, a DSPC170 spare can be particularly valuable when the original controller platform remains operational but manufacturer support and replacement lead times have become difficult to manage. Check the installed board marking, ordering number, firmware requirements, and associated system documentation rather than matching only the front-panel model label.
• For planned maintenance outages, keeping a correctly identified processor module on site can reduce the diagnostic-to-replacement interval. The useful comparison is not merely purchase price; it is whether the spare can be installed into the existing MP 200 architecture without triggering a configuration or software incompatibility.
• In continuous-process facilities, processor-board replacement should be treated as a controlled maintenance activity. Save the existing configuration first, record all diagnostic indicators, and photograph connector positions before removing the failed board. Small identification errors can turn a straightforward spare-part replacement into a longer commissioning task.

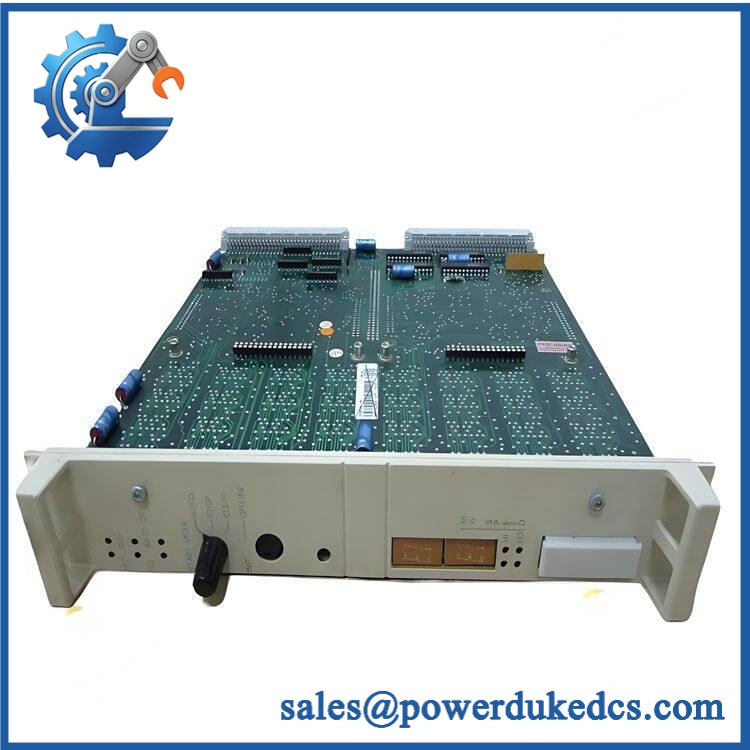

ABB DSPC170 57310001

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Ordering-number mismatch: is associated with several reference formats, including 57310001-GL, Y57310001-GL, R57310001-GL, P57310001-GL, EXC57310001-GL, and REF57310001-GL in published spare-part records. Do not order solely from the shortened designation when the existing board has a specific suffix or revision marking.

2. Configuration and firmware risk: Public product listings do not provide enough authoritative information to state a universal firmware threshold for every MP 200 installation. Before energizing a replacement, document the existing processor’s firmware/software identification and controller configuration. Do not flash a replacement board merely because a newer firmware image is available.

3. ESD and connector handling: Processor boards should be handled using appropriate ESD precautions. Remove power according to the site’s maintenance procedure, isolate the controller as required by the process-safety design, and avoid touching exposed PCB contacts. Technically, some third-party listings claim hot-plug capability, but that claim should not be treated as permission to remove or insert a processor in an energized MP 200 rack without ABB documentation for the exact installation.

Module 6: Quality Assurance SOP

Before shipment, each available unit should pass a documented inspection sequence rather than being released solely on visual appearance.

• Step 1 — Part-number verification: Record the ABB identification, designation, ordering number, revision markings, and serial information where available. Compare the physical label against the customer’s requested 57310001 reference.
• Step 2 — OEM anti-counterfeit visual inspection: Examine ABB labels, typography, PCB markings, connectors, fasteners, board construction, and manufacturing identifiers for inconsistencies. Photograph the nameplate and critical board markings for the sales record.
• Step 3 — Physical condition inspection: Check the PCB for corrosion, contamination, cracked components, bent connector pins, damaged mounting points, oxidation, or evidence of unauthorized repair.
• Step 4 — Power-on self-test (POST): Where the available test fixture and system configuration permit, energize the processor and record the observed RUN/ERR or equivalent diagnostic LED behavior. Any unexpected fault indication is documented before shipment.
• Step 5 — Communication handshake verification: Install the processor in an appropriate test environment and verify controller communication where the required ABB Master MP 200 test setup is available. Record successful initialization, diagnostic status, and communication response.
• Step 6 — Configuration check: Confirm that the tested board corresponds to the customer’s requested hardware family. Firmware or application data should not be altered unless specifically required and authorized for the customer’s installation.
• Step 7 — Final photographic record: Photograph the tested unit, nameplate, serial/reference markings, connectors, and packaging condition. The inspection record should accompany the shipment documentation.

QA release criterion: No unexplained diagnostic alarm, physical damage, identification discrepancy, or failed communication test should be accepted as a normal condition. If a specific test cannot be performed because the required MP 200 test environment is unavailable, that limitation should be stated explicitly on the inspection report rather than presenting the unit as fully system-tested.
