ABB DSPU131 3BSE000355R1 | MA200 Interface Board

• Brand: ABB
• Full Model Number: DSPU131
• ABB Article Number: 3BSE000355R1
• Lifecycle Status: Legacy Advant Master installed-base spare; current lifecycle declaration not independently verified
• Core Function in System: MA200 interface / communication board for AT-bus architecture
• Product Type: MA200 Interface Board
• Top 3 Hardcore Specs: 334.6 mm length; 121.9 mm height; 21 mm width
• Net Weight: 0.42 kg
• Country of Origin: Sweden / Germany listed in ABB product data
• HS Code: 85389091
• Physical Format: Full-length AT-bus board
• Condition & Lead Time: Availability and shipment timing require supplier confirmation

Module 3: Technical Intro & Downtime Impact

A failure of the ABB DSPU131 can interrupt the communication path served by the MA200 architecture and complicate recovery of an older Advant Master installation. This is exactly the kind of spare that becomes difficult to source during a legacy-system outage: the board is physically long, system-specific, and identified by both DSPU 131 and the exact ABB article 3BSE000355R1. ABB product data defines it as an MA200 Interface Board for AT-bus, rather than a generic I/O card.

For maintenance planning, the documented physical envelope is 334.6 mm × 121.9 mm × 21 mm, with a 0.42 kg net weight. That information matters when checking rack clearance, card guides, packaging, and spare-room allocation. ABB also lists the associated part within its Advant Master / MasterAid 200 communication hardware structure, making exact system identification more important than visual similarity alone.

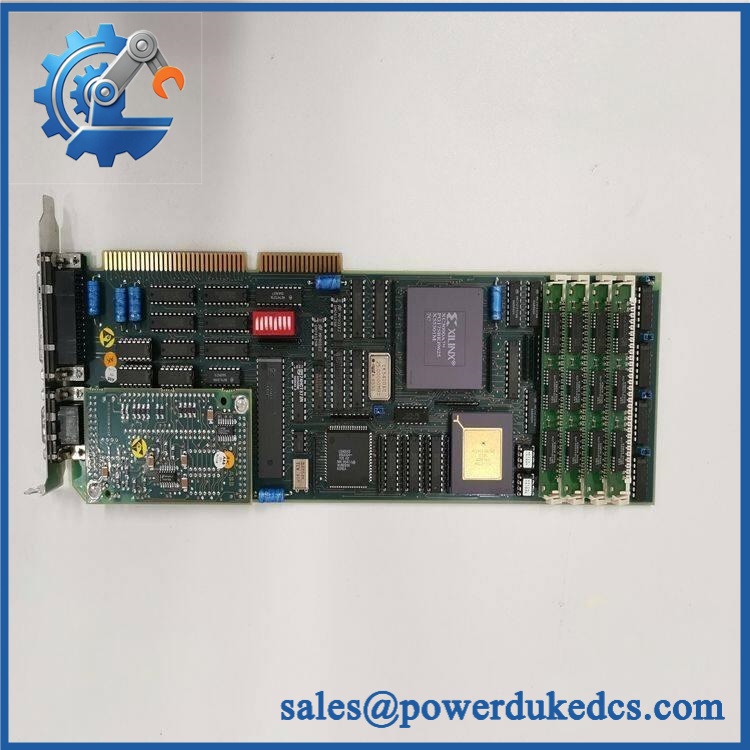

ABB DSPU131 3BSE000355R1

Module 4: Dynamic Emergency Swap & Configuration Guide

Because DSPU131 is documented as a full-length AT-bus interface board, replacement should be approached as a rack/card-level intervention.

1. Pre-Swap Prep — isolate and document

• Place the affected Advant Master cabinet or associated rack in the approved maintenance state.
• Follow site LOTO requirements and verify the rack is electrically safe.
• Record DSPU131 / 3BSE000355R1 and photograph the installed board.
• Capture every connector position, cable label, jumper, switch, and visible revision marking.
• Use ESD protection before handling the PCB.

2. Removal — rack and connector control

• Confirm power has been removed from the applicable rack/backplane.
• Label and disconnect attached wiring or interface connectors individually.
• Release the board’s retaining hardware or extraction mechanism.
• Withdraw the full-length PCB evenly from the AT-bus/card interface.
• Keep the removed board in antistatic packaging for failure analysis.

3. Installation & Configuration — preserve the original state

• Verify the replacement marking: DSPU 131 / 3BSE000355R1.
• Compare PCB revision, connector arrangement, and hardware settings with the removed unit.
• Reproduce documented jumper or switch settings exactly; do not infer settings from neighboring boards.
• Insert the board squarely into the correct card position and secure it mechanically.
• Reconnect each cable against the photographs and maintenance drawing.

4. Power-On Self-Test (POST) — verify communication recovery

• Re-energize the rack using the approved Advant Master startup sequence.
• Check the board and rack for abnormal status or fault indications.
• Confirm the host system recognizes the communication hardware.
• Verify the affected MA200/AT-bus data path using system diagnostics.
• Validate downstream communication before returning the process to normal service.

Field note: Public product data confirms the AT-bus/MA200 role and physical dimensions, but it does not provide a verified hot-swap procedure or a universal LED-state table for every host installation. Use the specific cabinet documentation for those details.

Module 5: Quality Assurance & Testing SOP

A controlled pre-shipment inspection for DSPU131 should include:

• OEM identity inspection: Verify ABB markings, DSPU 131, 3BSE000355R1, board labels, and traceability information.
• Anti-counterfeit visual inspection: Compare PCB construction, connector geometry, labels, component markings, and revision identifiers against available ABB references.
• Mechanical inspection: Confirm the board is free from cracked PCB material, bent connectors, damaged mounting hardware, corrosion, and contamination.
• Dimensional verification: Check the documented 334.6 × 121.9 × 21 mm envelope before packaging or cabinet-fit claims are made.
• ESD-controlled handling: Maintain antistatic protection from inspection through final packing.
• Power-on self-test: Where a suitable Advant Master test environment is available, perform controlled power-up and record available status/fault indications.
• Communication verification: Test the relevant /AT-bus communication path using an appropriate compatible test setup.
• Signal-path verification: Exercise applicable communication functions and confirm stable data exchange without intermittent faults.
• Thermal observation: Monitor abnormal heating during the controlled functional test.
• Final QC record: Record article number, serial/traceability data, PCB revision, inspection results, test results, packaging condition, and QC release.

ABB’s product data specifically categorizes DSPU 131 under Advant Common Hardware → Communication Modules, and identifies it as a DSPU 131 Communication Unit.

Module 6: Maintenance & Reliability FAQ

Is ABB DSPU131 3BSE000355R1 a direct drop-in replacement?

The exact identification is confirmed as DSPU 131 / 3BSE000355R1, an Interface Board for AT-bus. That supports part-number matching, but a true drop-in determination still requires checking the host rack, board revision, connector arrangement, and installed Advant Master configuration.

Does the replacement require a firmware flash?

No mandatory firmware procedure is established in the product-detail information reviewed for this part. Before commissioning, compare the replacement board revision with the existing installation and follow the applicable Advant Master maintenance documentation.

Is it safe to hot-swap while the system is running?

Do not assume hot-swap support. The available product data identifies the board as an AT-bus/ interface board but does not authorize live extraction or insertion. Use controlled power isolation unless the specific rack documentation explicitly permits hot replacement.

Will replacing cause my current control program to be lost?

The available ABB classification identifies as a communication/interface unit, not the primary application-program storage device. Nevertheless, preserve the existing controller and communication configuration before replacement. Record board settings, rack position, diagnostics, and relevant system parameters so the original state can be reconstructed accurately.

What warranty terms apply if the board fails after installation?

Warranty coverage depends on the actual sales agreement and supplied condition. The ABB product information reviewed here does not establish a universal commercial warranty period for every source of supply. Confirm the applicable warranty, testing evidence, and return terms before purchase.
