ABB DSQC611 3HAC13389-2 | Contactor Unit for IRC5 Controllers

Description

• Brand: ABB
• Full Model Number: DSQC611 3HAC13389-2
• System/Series Family: ABB IRC5 Robot Controller / Drive Module
• One-Sentence Core Function: Contactor interface unit used within the ABB IRC5 controller drive-module architecture
• Top 3 Hardcore Specs: 160 mm length; 27.1 mm width; 0.14 kg net weight
• Stock Status: New surplus / fully tested refurbished, subject to exact inventory condition

ABB’s current IRC5 documentation explicitly identifies 3HAC13389-2 as the DSQC 611 Contactor Interface Board and places it among the controller drive-module spare parts.

Module 3: Commercial-Technical Deep Dive

When an ABB robot controller develops a contactor-interface fault, replacing the correct interface hardware is far less disruptive than treating the symptom as a complete controller failure. The ABB DSQC611 3HAC13389-2 is identified by ABB as a contactor interface board used in the IRC5 controller’s drive-module section. ABB’s current IRC5 spare-parts documentation lists the same part number under both small and large panel-mounted controller drive-module assemblies.

The useful engineering numbers are compact and easy to verify. ABB-linked technical data lists approximately 160 mm × 27.1 mm × 10 mm and a 0.14 kg net weight. The part is therefore a small interface assembly, not a main controller or power module; its replacement value comes from restoring the contactor interface without disturbing unrelated controller electronics. The documented product data also identifies DSQC 611 as the product name and 31x19x8 as the ABB type designation.

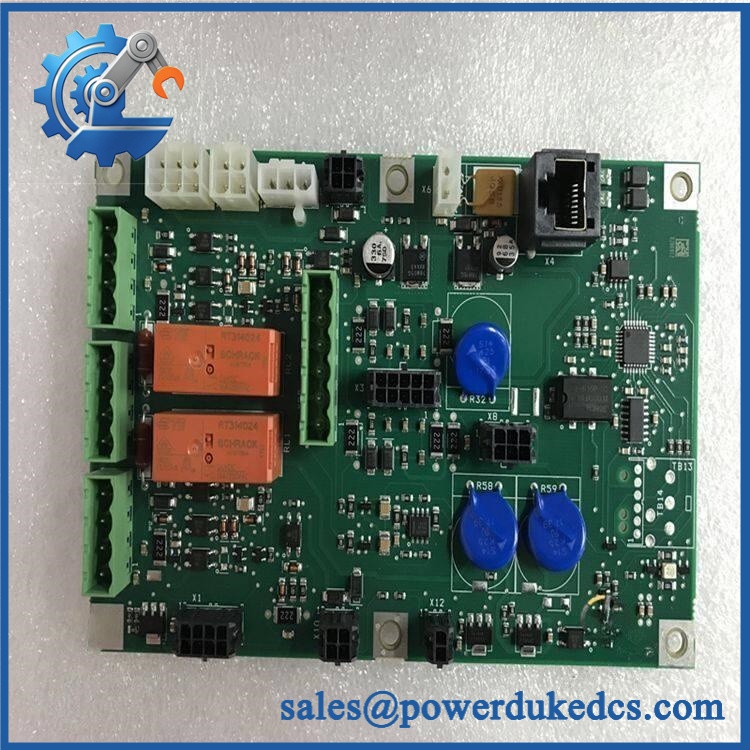

ABB DSQC611 3HAC13389-2

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Contactor interface board / contactor unit for ABB IRC5 controller drive-module assemblies.
• Firmware flash: Not normally applicable to the DSQC 611 interface board itself.
• Logic rewrite: Not normally required for a same-part replacement.
• Drop-in status: Generally appropriate as a direct replacement when the installed unit is the same 3HAC13389-2 / DSQC 611 hardware revision and the surrounding controller assembly matches.
• Known predecessor: ABB-related technical data identifies 3HAC020849-001 as the replaced product ID for 3HAC13389-2.
• Controller compatibility: ABB’s manuals list 3HAC13389-2 in the drive-module spare-parts section for both PMC small and PMC large configurations.

⚠️ Field Traps (Watch Out)

1. Do not treat the DSQC 611 as an isolated plug-and-play control board.
It sits inside the drive-module architecture. Connector position, harness routing, mechanical covers, and the exact controller configuration must match the replacement procedure. ABB documentation also references specific covers for different contactor-board designs and identifies connector X23 as part of the associated assembly.

2. Power isolation is mandatory before controller cabinet work.
This component belongs to the robot controller drive section. Do not remove it while the relevant controller and drive circuitry remain energized. Lockout/tagout, DC-bus discharge verification, and site-specific ABB maintenance procedures take precedence over a generic board replacement sequence.

3. Verify the hardware revision before ordering.
The DSQC 611 has documented cover/hardware differences tied to design versions. A 2004 cover is identified as 3HAC020843-001, while a 2006 design uses 3HAC023974-001. Confirm the complete installed assembly rather than relying only on the DSQC number.

Module 5: Quality Assurance SOP

Every ABB DSQC611 3HAC13389-2 unit should pass a documented pre-shipment inspection before release:

• OEM anti-counterfeit visual inspection: Verify ABB markings, DSQC designation, 3HAC13389-2 identification, PCB construction, connector geometry, and label quality.
• Part-number verification: Cross-check the complete 3HAC13389-2 number against the purchase order and installed controller BOM where available.
• Mechanical inspection: Confirm board dimensions, connector condition, mounting points, covers/interfaces, and absence of corrosion, bent contacts, cracks, or unauthorized rework.
• Electrical inspection: Check relevant accessible contacts and circuitry for obvious shorts, damaged components, contamination, or signs of thermal stress before any powered test.
• Power-on self-test (POST): The DSQC 611 itself is an interface board, not an independent controller with its own standalone diagnostic sequence. When installed in a qualified test assembly, verify the controller’s expected ERR/RUN state and absence of contactor-related diagnostic faults.
• Communication handshake verification: The board does not function as a standalone network interface. Validation should therefore be performed at the controller/drive-system level, confirming normal controller recognition and expected drive-module behavior.
• Functional verification: Where the test fixture permits, verify the associated contactor-interface operation and controller diagnostic response under controlled conditions.
• Final QC: Photograph the identification label, record inspection results, protect the board against ESD, and package it with connector protection to prevent transit damage.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB DSQC611 3HAC13389-2 an authentic replacement for an controller?

ABB’s documentation directly identifies 3HAC13389-2 as the DSQC 611 Contactor Interface Board and lists it within the controller drive-module spare-parts structure. That makes the part number itself a strong identification point; the installed controller configuration and hardware revision still need to be matched before shipment.

2. Can DSQC611 be hot-swapped?

No generic hot-swap assumption should be made. This board is part of the controller drive-module section, so replacement should be performed with the applicable controller and drive power isolated, including verification that hazardous stored energy has been discharged according to the ABB maintenance procedure.

3. Does replacing 3HAC13389-2 require firmware or robot program changes?

A same-part replacement normally does not require a firmware flash or robot program rewrite. The important checks are correct part number, controller configuration, connector/harness installation, and successful controller diagnostics after replacement.

4. What are the physical specifications of DSQC 611?

Published technical data lists approximately 160 mm length, 27.1 mm width, 10 mm height, and 0.14 kg net weight. ABB identifies the type designation as 31x19x8.

5. What warranty and technical support are provided?

Warranty duration should be confirmed on the quotation for the exact inventory condition. Technical support should cover part-number identification, compatibility review, inspection/test documentation, and replacement guidance within the documented architecture. Cabinet power isolation, safety validation, and robot-cell commissioning remain the responsibility of qualified personnel.
