ABB DSTA131 Y57120001 | Advant DCS Connection Unit

Description

• Brand: ABB
• Full Model Number: DSTA131 Y57120001
• Related Identification: Y57120001-CV / 57120001-CV
• System/Series Family: ABB Advant / Master DCS
• One-Sentence Core Function: Connection interface unit for coupling field or system wiring to the ABB Advant/Master DCS architecture
• Top 3 Hardcore Specs: DSTA131 connection-unit design; Advant/Master DCS interface; Y57120001-CV identification
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A connection unit can be a deceptively small part of a legacy DCS, yet a damaged terminal or interface can interrupt an entire I/O segment. The ABB DSTA131 Y57120001 is identified by ABB reference material as DSTA131 PC BD., with Y57120001-CV listed as the product identification and catalog description. Separate industrial references identify the DSTA131 as a connection unit used with ABB Advant/Master DCS systems. The exact identification appears in several forms, including Y57120001-CV and 57120001-CV, so matching the complete marking on the installed hardware is important.

The main commercial benefit is restoration of an established DCS interface without changing the host controller architecture. Because connection units are installation-specific, the value lies less in processing performance and more in correct terminal mapping, mechanical fit, and signal continuity. Published sources do not provide a consistent, authoritative electrical specification for every DSTA131 revision, so detailed voltage, current, terminal, and signal assignments should be taken from the original cabinet drawings and the exact ABB documentation for the installed revision. —That distinction matters when replacing a legacy interface under a shutdown deadline.

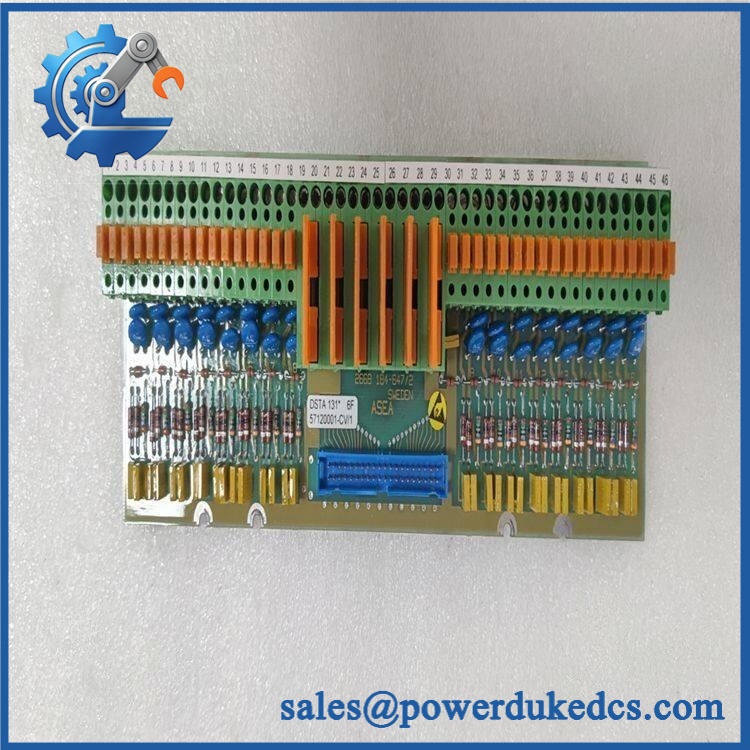

ABB DSTA131 Y57120001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific ABB connection unit / interface assembly.
• Logic rewrite: Not normally required. The unit is an interface component rather than the application-processing controller.
• Firmware flash: Not applicable under normal replacement conditions.
• Drop-in status: Potentially direct when the complete part identification, terminal arrangement, mechanical dimensions, and connected DCS hardware match.
• Part-number verification: ABB reference material lists Y57120001-CV as the product identification for , while industrial references also use 57120001-CV. Confirm the exact nameplate before substitution.

⚠️ Field Traps (Watch Out)

• Terminal mapping error: Photograph and label every conductor before removal. A connection unit can fit mechanically while a single misplaced field wire changes the signal path.
• Revision mismatch: Do not assume every assembly has identical terminal assignments or internal construction. Match the full identification and compare against the cabinet wiring diagram.
• ESD exposure: Treat the PCB/interface assembly as static-sensitive during handling. Use grounded ESD procedures and antistatic packaging.
• Live-circuit risk: Never remove field wiring from an energized DCS interface unless the approved ABB/site procedure explicitly permits it. Isolate the relevant power and signal circuits first.

Module 5: Quality Assurance SOP

Before shipment, the ABB Y57120001 / Y57120001-CV should undergo an interface-board inspection sequence:

1. OEM anti-counterfeit visual inspection — verify ABB markings, designation, identification, label consistency, terminal layout, and board construction.
2. Mechanical inspection — examine terminal blocks, connectors, mounting points, housing, PCB surfaces, and retention hardware for impact or contamination.
3. Nameplate verification — record the complete part identification and compare it against the customer’s supplied part number.
4. Continuity testing — check applicable signal and connector paths against the approved pinout or wiring documentation.
5. Insulation verification — perform the applicable isolation checks before controlled functional testing.
6. Power/interface verification — where the assembly contains active circuitry, apply the documented test supply and verify expected startup/status behavior.
7. DCS communication or signal-path handshake — install the unit in a compatible test assembly and confirm expected signal transfer through the interface.
8. Channel verification — test representative connected points against known-good inputs or outputs, where supported by the available test fixture.
9. Final QC record — document model, complete identification, revision/date markings where available, test conditions, measured results, photographs, and packaging condition.

For a legacy connection assembly, cosmetic inspection is not enough. Terminal continuity, correct mapping, and successful signal transfer are the meaningful acceptance checks.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB obsolete, and how do I verify authenticity?

The is associated with ABB’s legacy Advant/Master DCS environment, and ABB’s own product-reference material identifies the as a spare-parts item with product identification . For procurement, request clear photographs of the nameplate, PCB markings, terminals, and complete part number before accepting a replacement.

2. Can I hot-swap the ?

Do not assume hot-swap capability. Because the unit interfaces with DCS wiring, energized removal can expose personnel to electrical hazards and can disturb process signals. Follow the applicable ABB maintenance procedure and site LOTO requirements.

3. Will replacing the require reprogramming the DCS?

Normally no. A connection unit does not normally contain the main application logic. After replacement, however, verify terminal mapping, signal polarity, continuity, and DCS point status before returning the loop or I/O section to automatic operation.

, , and 57120001-CV the same part?

They are closely associated identifiers for the in available references. ABB’s own product-reference document identifies for , while other industrial listings identify the part as 57120001-CV. For a controlled replacement, match the actual marking on the installed unit rather than assuming suffixes are interchangeable.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact part-number verification, terminal/interface compatibility, wiring review, and documented pre-shipment testing. Field rewiring and live DCS maintenance remain the responsibility of qualified site personnel.
