ABB DSTXW110 57160001 | Digital Input Board for Advant Systems

Description

• Brand: ABB
• Full Model Number: DSTXW110 57160001
• System/Series Family: ABB Advant Master / Bailey-Symphony control systems
• One-Sentence Core Function: Digital input board for acquiring discrete field signals and transferring their status into the control system
• Top 3 Hardcore Specs: 16 digital input channels; 24 VDC input class commonly associated with the specific AAP variant; approximately 0.3 kg reference weight
• Stock Status: New surplus / fully tested refurbished, subject to exact suffix and inventory confirmation

ABB’s own spare-parts material places closely related 57160001 components within the Advant Master product line, while current technical listings specifically identify DSTX W110 57160001-AAP as a digital input board.

Module 3: Commercial-Technical Deep Dive

When an installed Advant control cabinet loses a digital input channel, replacing the complete I/O architecture is usually unnecessary. The ABB DSTXW110 is used as a digital input board for legacy ABB control-system installations, allowing discrete field states to be brought back into the controller without redesigning the application layer. Available documentation and technical listings associate the 57160001-AAP variant with 16 digital inputs, with the board communicating through the system backplane. ABB’s documentation also confirms that the DSTX W110 appears in its indexed hardware ecosystem rather than being an unrelated generic I/O assembly.

The important ROI here is restoration speed. For a shutdown-critical cabinet, having the correct board on hand can eliminate hours of fault isolation and prevent an unnecessary migration project. Listings for the specific 57160001-AAP variant report a nominal 0.3 kg product weight and identify a 24 VDC digital-input application. Some third-party pages also publish broader environmental and electrical figures, but these should be treated as variant-specific reference data rather than universal DSTXW110 specifications. That distinction matters when ordering a replacement for an installed legacy rack.

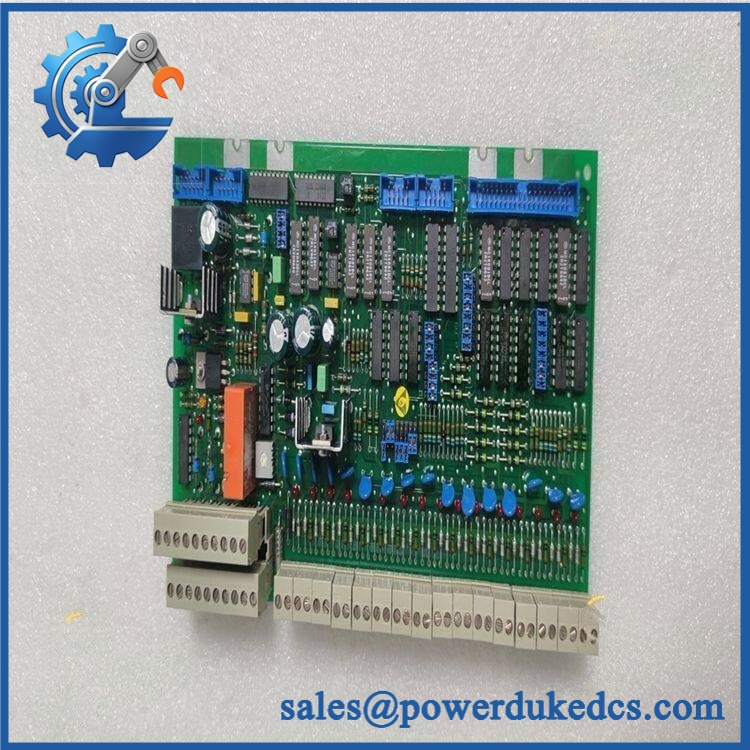

ABB DSTXW110 57160001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Functional replacement for the same DSTX W110 hardware position when the exact part-number suffix matches.
• Firmware flash: Not normally applicable to the passive board replacement itself, but system-level compatibility must be checked against the installed controller and I/O architecture.
• Logic rewrite: Normally not required when replacing the same board variant in the same hardware position.
• Drop-in status: Potentially direct for an existing DSTX W110 installation, but do not assume that “57160001” alone is sufficient for interchangeability. The documented hardware listing identifies the more specific 57160001-AAP suffix.

⚠️ Field Traps (Watch Out)

1. The suffix matters.
Legacy ABB part numbers can use suffixes to identify the exact hardware revision or assembly variant. Current indexed references identify DSTX W110 57160001-AAP, not simply an undifferentiated 57160001 board. Match the label on the failed unit before releasing a replacement.

2. Verify field voltage and termination before energizing.
The specific AAP listing describes a 16-channel digital input board and a 24 VDC input application. Confirm the actual site wiring, common arrangement, polarity, and terminal assignment against the cabinet drawings before applying power. Do not rely on a generic web listing when the cabinet documentation is available.

3. Protect the board from ESD during replacement.
This is a control-system circuit board. Use a grounded ESD wrist strap, anti-static packaging, and a controlled handling area; avoid touching connector pins or exposed contacts with bare hands.

Module 5: Quality Assurance SOP

Each ABB DSTXW110 supplied from controlled inventory should pass a documented inspection sequence before shipment:

• OEM anti-counterfeit visual inspection: Verify ABB identification, model marking, board layout, connector arrangement, labeling quality, and part-number consistency.
• Exact part-number verification: Cross-check DSTXW110 against the purchasing record and verify the complete suffix, especially where the available board is marked 57160001-AAP.
• PCB and connector inspection: Check for corrosion, cracked solder joints, damaged connectors, bent contacts, contamination, rework marks, and mechanical impact.
• Power-on self-test (POST): Where the supplied unit is suitable for bench energization, verify expected module status behavior and inspect for abnormal LED indications. A bare board may require its original system carrier/interface for a valid operational test.
• Communication handshake verification: Install the board in an appropriate ABB test environment and confirm that the controller recognizes the module and that expected input states are visible to the control system.
• Channel verification: For a testable assembly, exercise the digital inputs individually and record expected ON/OFF state transitions.
• Final QC: Photograph the part-number label, record test results, protect the PCB in ESD-safe packaging, and document the shipped condition.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB DSTXW110 57160001 obsolete, and can you still source an authentic unit?

It is a legacy ABB control-system component, and current ABB spare-parts material continues to index related 57160001 Advant Master hardware. The exact DSTX W110 57160001-AAP variant is also present in current technical catalogs. For procurement, authenticity should be checked from the physical label, suffix, board construction, and traceability records rather than from the base number alone.

2. Can the be hot-swapped?

Do not assume that it can. Hot-swap capability is determined by the specific ABB rack, carrier, power architecture, and module replacement procedure. A controlled power-down replacement is the conservative procedure unless the applicable ABB system documentation explicitly permits live removal.

3. Does replacing require a PLC logic rewrite?

A same-part replacement normally does not require rewriting application logic. The critical requirement is matching the exact board variant, system slot, termination arrangement, and controller configuration.

4. Is 57160001 the same as 57160001-AAP?

Not necessarily. Available references specifically identify DSTX 57160001-AAP. Because the user-supplied number omits the suffix, the safest purchasing practice is to compare the complete marking on the installed board before quotation or shipment.

5. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact stock condition supplied. Technical support should cover part-number verification, documented inspection/test results, hardware compatibility checks, and installation guidance within ABB’s documented system boundaries. Site wiring changes, control-logic modifications, and energized field work remain the responsibility of qualified personnel.
