ABB GBU72 3BHB030310R0001 | 4500 V Power Semiconductor

Description

• Model / Type: ABB GBU72 / 3BHB030310R0001
• ABB Type Designation: 4500 V, 91 mm, 5SHY 4045L0006
• Product Type: Integrated Gate-Commutated Thyristor (IGCT) power semiconductor module. ABB’s product data identifies 3BHB030310R0001 specifically as an IGCT module.
• System Association: ABB PCS6000 power-conversion equipment; third-party documentation also associates the part with the GBU72 assembly.
• Physical dimensions: ABB’s published designation specifies 91 mm; complete W × H × D dimensions are not established from the available ABB product record. Do not use an estimated carton dimension for engineering fit.
• Net weight: 3 kg according to ABB product data. This is the product net weight, not the packed shipping weight.
• What’s in the box: Normally the IGCT module itself. Gate-driver electronics, mounting hardware, heatsink assemblies, and other GBU72 components should not be assumed to be included.
• Asset identity: Record 3BHB030310R0001, 5SHY 4045L0006, serial/date code, and hardware revision separately.

Product Introduction

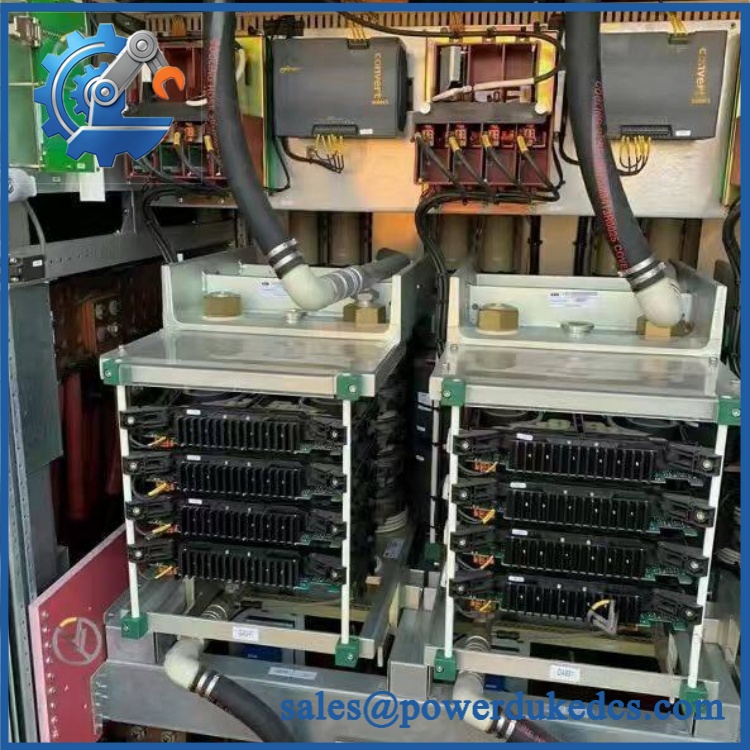

The GBU72 assembly belongs to the high-power conversion environment, where semiconductor switching components are mechanically integrated with their cooling and gate-control hardware. 3BHB030310R0001 is not a generic PLC or DCS I/O card; ABB identifies it as a 4500 V IGCT module, with the type designation 5SHY 4045L0006.

Physically, this is a power-semiconductor spare and should be handled accordingly. The module’s electrical rating and mounting interface make correct heatsink contact, mechanical clamping, and gate-driver compatibility essential (particularly in PCS6000 converter maintenance). ABB documentation also identifies 3BHE055094R0002 and 3BHE031197R0001 as related GBU72 assembly components, so purchasing the IGCT alone should not be confused with purchasing a complete GBU72 assembly.

Core Technical Specifications

ABB 3BHB030310R0001

ABB’s product record gives the 4500 V rating, 91 mm designation, 3 kg net weight, and HS classification.

Do not substitute an IGBT solely because the voltage/current class appears similar. The device technology, gate-drive requirements, mechanical interface, and converter control architecture must match.

? Global Compliance & Industry Certifications

For international procurement, separate the semiconductor’s product classification from the certification status of the complete converter:

• CE Mark: Verify the conformity documentation applicable to the complete ABB PCS6000 installation and the specific spare.
• UL/cUL: Confirm whether the installed converter configuration carries the relevant North American certification.
• ATEX / IECEx: Do not treat the IGCT itself as automatically hazardous-area certified. The complete converter enclosure and installation determine hazardous-location suitability.
• Marine approvals: For offshore or marine projects, verify DNV, ABS, or project-specific approval for the complete converter system.
• RoHS / environmental compliance: ABB identifies this product as outside the WEEE scope in its available product data.

The 4500 V electrical rating is itself a major safety consideration. Incorrect handling, inadequate isolation, or improper mechanical installation can expose maintenance personnel to hazardous stored and operating energy.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the IGCT in its original protective packaging. The semiconductor package and its contact surfaces should remain clean and dry; avoid unnecessary handling of the electrical interfaces.

Control humidity and condensation. A stable, dry warehouse environment is preferable to repeated temperature cycling. Before opening a cold package in a warm environment, allow the package to reach ambient temperature to reduce condensation risk.

Protect the mechanical contact surfaces. Do not stack heavy material directly on the module. For a press-fit/high-power semiconductor assembly, scratches, contamination, or deformation of contact surfaces can affect the final thermal interface (and a visual inspection should precede installation).

Record the 3BHB030310R0001 / 5SHY 4045L0006 identity, serial number, date code, and condition in the asset register. ABB’s product data lists a 3 kg net weight, which is useful for inventory control but should not be confused with gross shipping weight.

Physical Installation Prerequisites

• Mounting: Installation is application-specific and associated with the ABB power-converter assembly; do not treat the IGCT as a DIN-rail module.
• Heatsink interface: Verify the specified heatsink, thermal interface condition, mounting pressure, and mechanical alignment before installation.
• Clearance: Maintain the converter manufacturer’s specified creepage, clearance, and cooling distances. A generic 50 mm cabinet rule is not an adequate substitute for the PCS6000 installation drawing.
• Gate-driver compatibility: Confirm the associated gate-driver hardware before energization. Documentation for the assembly identifies 3BHE031197R0001 as a related driver module.
• Grounding: Follow the ABB PCS6000 grounding and protective-earth scheme.
• ESD: Use appropriate ESD controls when handling the semiconductor and associated electronics.
• High-voltage isolation: Apply the site’s approved lockout/tagout and discharge procedure before physical access. Never assume that a de-energized converter is immediately safe to touch.

Buyer’s FAQ

Q1: What HS tariff code applies to 3BHB030310R0001?

ABB’s available product information lists HS/CN classification 85413000, covering thyristors, diacs, and triacs other than photosensitive devices.

For an actual customs entry, the importing country’s tariff schedule and the broker’s classification should still be checked.

Q2: What Country of Origin should appear on the commercial documents?

ABB’s product record lists multiple possible country/territory entries, including the United States, Czech Republic, Switzerland, and Finland, rather than establishing one universal COO for every unit.

Therefore, do not infer COO from the ABB brand or seller location. Use the actual unit’s traceable origin documentation and ensure the invoice, packing list, and COO documentation agree.

Q3: Should a 3 kg IGCT be insured separately during shipment?

For an expensive power semiconductor, shipment insurance is prudent. ABB lists 3 kg net weight; packaging, cushioning, and the outer carton will increase gross shipping weight.

Photograph the original packaging, product label, serial number, and package condition before dispatch. That evidence is valuable if a freight-damage claim occurs.

Q4: Does 3BHB030310R0001 contain firmware?

No firmware should be assumed. This is an IGCT semiconductor power module, not a programmable controller. ABB identifies the device as 5SHY 4045L0006 / IGCT MODULE.

If the requirement is for a complete assembly, verify the associated controller, gate-driver, and sensor-interface components separately; the IGCT alone does not constitute the complete control assembly.
