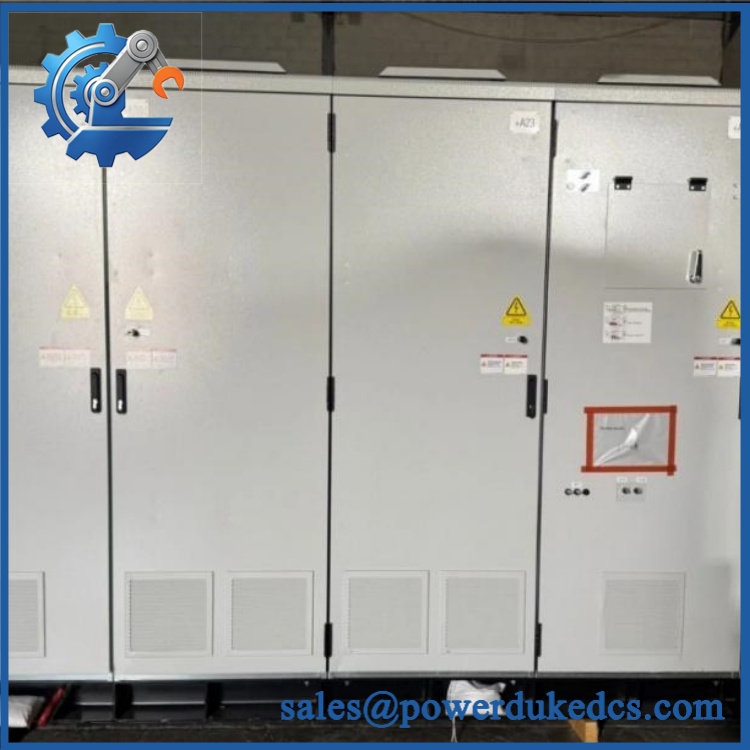

ABB GBU72 3BHE031197R0001 | OEM Grid Breaker Assembly

Description

• Model & Brand: ABB GBU72 / 3BHE031197R0001
• Platform: ABB PCS6000 power-conversion system. ABB documentation identifies 3BHE031197R0001 within the PCS6000 product family.
• Part Identity: The available documentation is inconsistent about the exact role of this part number. Some supplier records associate it with GBU72, while ABB’s PCS6000 service manual identifies 3BHE031197R0001 as a PES PEB 3PH 3kV PCD I01-A01, weighing 360 kg and measuring 570 × 742 × 1367 mm.
• Physical Dimensions: 570 × 742 × 1367 mm for the PCS6000 assembly identified by ABB documentation.
• Estimated Shipping Weight: 360 kg net, before pallet, crate, shock protection, and other export packaging.
• What’s in the Box: The exact shipment scope must be confirmed against the purchase order. Do not assume that the complete GBU72/grid-breaker assembly, control unit, sensors, cables, or commissioning documentation are included.
• Handling Classification: Heavy industrial power-conversion equipment. This is not a conventional rack-mounted DCS/PLC spare.

Product Introduction

The physical installation context is the first issue to resolve with 3BHE031197R0001. ABB’s PCS6000 service documentation places this part within the high-power converter equipment rather than the small plug-in electronics normally associated with automation spare inventories. The documented assembly weighs 360 kg, with dimensions of 570 × 742 × 1367 mm—measurements that materially affect lifting, crating, warehouse storage, and freight planning.

There is an important identification trap here. Third-party listings associate 3BHE031197R0001 with the GBU72 Grid Breaker Unit, while ABB’s own service manual gives the part number a different component description. For an audit-controlled inventory record, the ABB nameplate and equipment drawing should therefore take precedence over a reseller description (especially when several GBU72 component numbers are supplied as one functional assembly).

Core Technical Specifications

ABB 3BHE031197R0001

ABB’s service manual is the stronger source for the physical data above. It specifically lists the 3BHE031197R0001 material at 360 kg and 570 × 742 × 1367 mm.

Global Compliance & Industry Certifications

For this class of ABB power-conversion equipment, certification should be assessed at the complete equipment/system level and project configuration, not inferred solely from the part number.

• CE Mark: Verify the applicable conformity documentation for the installed configuration.
• UL/cUL: Verify whether the specific project assembly carries the required North American certification.
• ATEX/IECEx: Do not assume hazardous-area certification. These approvals apply only where the exact equipment and installation configuration are certified.
• Marine approvals: DNV or another marine authority may apply to specially certified installations; verify the project-specific certificate.
• IEC Standards: The applicable documentation should be reviewed for the standards governing the complete converter installation.

For compliance files, retain the equipment nameplate, serial number, conformity documentation, project drawing, and certificate package together.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Treat this as heavy electrical power equipment, not shelf electronics. Store it on a rated structural support capable of safely carrying at least the documented 360 kg net mass, with the center of gravity controlled and the unit protected against tipping.
2. Keep the converter assembly dry and protected from condensation. For long-term warehouse storage, use the original moisture barrier where supplied and monitor humidity. Condensation around high-power semiconductor assemblies, busbars, and insulated connections can create serious commissioning risks.
3. Do not energize immediately after extended storage. Allow the assembly to reach the controlled installation environment, perform insulation and visual inspections, and follow the applicable ABB recommissioning procedure. Power capacitors and semiconductor assemblies require particular attention after prolonged storage.

Physical Installation Prerequisites

• Use a rated crane, forklift, or lifting system appropriate for the documented 360 kg assembly.
• Confirm the lifting points and center-of-gravity information from the project mechanical drawing before movement.
• Maintain adequate clearance around the converter for cooling airflow and maintenance access. Do not use a generic 50 mm clearance rule for this equipment; the cabinet drawing takes precedence.
• Verify floor loading before placing the assembly in the final position.
• Provide protective grounding according to the installation documentation.
• Maintain required separation between power conductors, control wiring, and communication circuits.
• Inspect busbar connections, insulated supports, power semiconductor interfaces, and mechanical fasteners before energization.
• Do not modify the enclosure, busbar arrangement, or cooling path to accommodate the unit.

Buyer’s FAQ

Q: What HS tariff code should be used for 3BHE031197R0001?

The classification should be determined from the actual function and shipment configuration. This part is associated with large-scale power-conversion equipment, so it should not automatically be classified as a generic PLC or electronic control module. Confirm the final HS code with the customs broker using the ABB technical description and destination-country tariff schedule.

Q: What Country of Origin should appear on the commercial documents?

Use the COO supported by the actual ABB nameplate and supplier documentation. Do not infer origin from the seller’s warehouse location, and do not copy the COO from another component.

Q: Is shipping insurance necessary for this part?

Yes, it deserves serious consideration. A 360 kg power-conversion assembly has substantial handling and replacement exposure; the freight policy should cover mechanical impact, water damage, and loss according to the agreed Incoterm and declared value.

Q: Does 3BHE031197R0001 include the latest firmware?

Do not assume that it does. This is a physical power-conversion component, and system firmware/configuration depends on the complete converter architecture. Verify hardware revision, control-system compatibility, and required software versions before commissioning.

Asset-control recommendation: Before purchasing or receiving ABB 3BHE031197R0001, reconcile the supplier’s description against the ABB nameplate, equipment drawing, and service-manual material number. The available documentation shows a significant identification discrepancy, so the exact physical assembly should be confirmed before using dimensions, weight, customs classification, or substitution data in an audit record.
