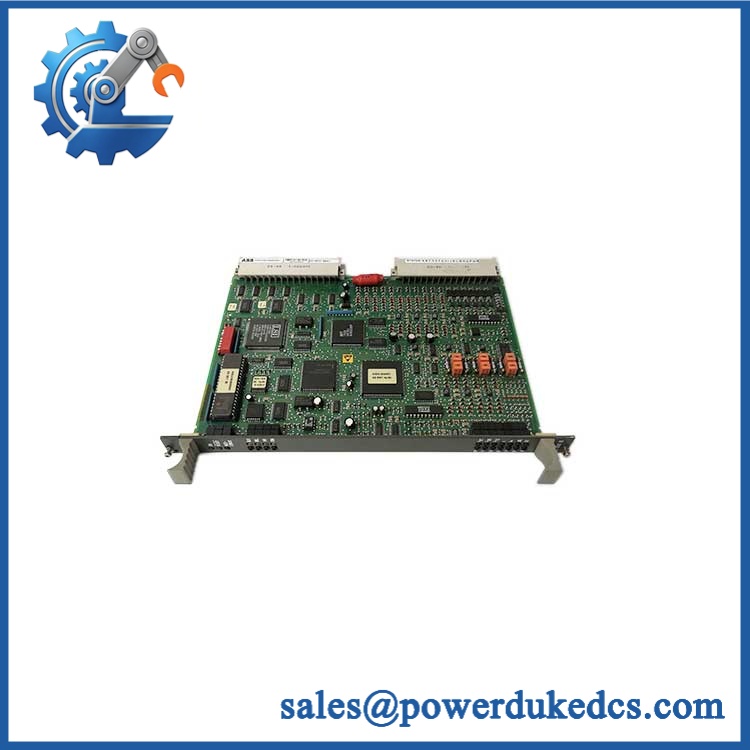

ABB GDB021BE UNITROL | P Gate Control Unit Spare

• Brand: ABB
• Full Model Number: GDB021BE
• Related ABB Type: GD B021 BE1
• ABB Part Number: HIEE300766R0001
• Lifecycle Status: Legacy UNITROL P power-electronics spare
• Core Function in System: Gate control unit for thyristor-based excitation power electronics
• Top 3 Hardcore Specs: 206 mm width; 37 mm height; 276 mm depth
• Net Weight: 0.42 kg
• System Application: ABB UNITROL P excitation system
• Typical System Quantity: 2 units per documented UNITROL P system
• Installation Form Factor: Rack/card-mounted control hardware
• Condition & Lead Time: Factory-sealed or tested inventory subject to stock confirmation; expedited dispatch available for shutdown-critical requirements

ABB’s own UNITROL P spare-parts documentation lists GD B021 BE1 / HIEE300766R0001 as a Gate Control Unit, with two units recommended for one UNITROL P system. ABB’s product data also lists dimensions of 206 × 37 × 276 mm and a net weight of 0.42 kg.

Module 3: Technical Intro & Downtime Impact

A gate-control fault can prevent the excitation power stage from firing correctly, leaving the generator unavailable or forcing the unit into a protection-driven shutdown. That makes this board a different class of spare from an ordinary I/O card. The ABB GDB021BE / GD B021 BE1 is documented as a Gate Control Unit within the UNITROL P spare-parts architecture. ABB’s official spare-parts list places it alongside the processing unit, combined I/O, power pack, converter electronics, and firing hardware, with two gate-control units used in one documented UNITROL P system.

MTTR is mainly affected by identification accuracy and replacement access. The ABB product record specifies a compact 206 × 37 × 276 mm mechanical envelope with 0.42 kg net weight, making accurate chassis and connector matching practical during a planned outage. The critical check comes before installation: confirm whether the failed board is actually GDB021BE / GD B021 BE1 / HIEE300766R0001, because later suffixes and application-specific assemblies should not be assumed interchangeable merely because the board outline looks similar. (Field note: preserve the failed unit’s label photographs before removal.)

ABB GDB021BE UNITROL

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Shut Down the Excitation Power Stage

Use the generator/excitation system’s approved shutdown sequence and plant LOTO procedure. Isolate the excitation power circuit, discharge associated capacitors according to the OEM procedure, and verify absence of hazardous voltage before accessing the cabinet. Have the cabinet drawing, replacement board, ESD strap, insulated tools, camera, and connector-identification labels ready. Record the complete identification on the old board before disconnecting it.

2. Removal — Release the Rack-Mounted Board Carefully

The GDB021BE is a compact rack/card-style control assembly rather than a field-mounted DIN-rail device. Remove the cabinet access hardware, identify every connected control and interface cable, and photograph their positions. Disconnect the interfaces without pulling on individual conductors, release the board’s retaining hardware, and withdraw the assembly evenly from its card position. Keep the removed hardware available until the replacement has passed initial checks.

ABB identifies GD B021 BE1 / HIEE300766R0001 specifically as a Gate Control Unit for UNITROL P.

3. Installation & Configuration — Match the Complete Hardware Identity

Before insertion, compare the replacement against the failed board’s:

GDB021BE → GD B021 BE1 → HIEE300766R0001

Check the board dimensions, connector locations, revision markings, and cabinet slot position. Reinstall it in the same rack location and reconnect every interface against the original cabinet drawing. Do not substitute another GDB-series board based on physical fit alone. ABB’s spare-parts documentation treats the gate-control unit as a distinct component within the UNITROL P architecture.

No user-programmed PLC firmware should be assumed to reside on this gate-control assembly. Configuration verification should instead focus on the associated excitation controller, firing electronics, interface wiring, and system-specific settings.

4. Power-On Self-Test (POST) — Confirm Gate-Control Health

Restore control power first, keeping the excitation power stage in the prescribed safe state. Observe the board’s actual status and fault indicators during startup; do not assume conventional PLC ERR/RUN LED labeling unless those indicators are physically present on the installed revision. Confirm that the expected healthy indication appears, no persistent fault is reported, and the upstream processing unit recognizes the gate-control path.

After the local checks pass, carry out the approved firing-control and protection verification with the excitation system test procedure. Only after the gate-control channel, interlocks, feedback signals, and firing sequence have been validated should the excitation power stage be returned to normal operation.

Module 5: Quality Assurance & Testing SOP

Every ABB GDB021BE / HIEE300766R0001 should receive documented inspection before shipment.

• OEM anti-counterfeit visual inspection: Check ABB identification, GD BE1 markings, label, board layout, connectors, mounting hardware, and manufacturing markings.
• Part-number traceability: Photograph and record every visible identifier, including suffix and revision information.
• Mechanical inspection: Verify card-edge interfaces, connector housings, retaining points, PCB condition, component security, and the 206 × 37 × 276 mm mechanical envelope.
• Weight verification: Compare the completed unit against the documented 0.42 kg net weight where practical.
• Power integrity test: Apply the approved control supply in a protected test environment and monitor startup behavior, current draw, and abnormal heating.
• Power-on self-test (POST): Observe startup status indications and fault indications. Where the installed revision has RUN/ERR indicators, document their exact startup sequence rather than assuming generic PLC behavior.
• Interface continuity test: Verify all accessible control and communication interfaces for continuity, connector integrity, and expected electrical behavior.
• Gate-control functional simulation: Connect the unit to an approved UNITROL P-compatible test arrangement and verify the control path response without exposing the laboratory setup to uncontrolled excitation power.
• Protection-response verification: Confirm fault detection and shutdown signaling through the appropriate test interface where the test fixture supports it.
• Extended thermal observation: Operate the board under controlled conditions and monitor abnormal temperature rise — particularly relevant for older excitation cabinets with restricted cooling.
• Final QC record: Record identification, revision, test results, photographs, test-equipment references, date, inspector, and release status.

ABB’s published UNITROL P spare-parts flyer specifically identifies as the gate-control unit and lists two pieces per UNITROL P unit, which is useful when determining minimum critical-spare coverage.

Module 6: Maintenance & Reliability FAQ

Is this a direct drop-in replacement, or does it require a firmware flash?

The GDB021BE is a gate-control unit rather than a conventional programmable CPU. A firmware flash should not be assumed to be required. The more important checks are the complete ABB identifier, hardware revision, cabinet slot, connector arrangement, associated firing electronics, and UNITROL P configuration. ABB’s current product record identifies specifically as GD BE01 Gate control unit.

Is it safe to hot-swap this unit while the system is running?

Do not treat it as a hot-swappable card. The board is part of an excitation power-electronics system, and maintenance should be performed only after the applicable excitation power circuits have been shut down, isolated, discharged, and verified safe. A live replacement could expose personnel and downstream power electronics to unacceptable electrical hazards.

Will replacing this gate-control unit cause my current program to be lost?

The gate-control unit should not be treated as the storage location for the complete UNITROL application. The primary concern is maintaining the configuration of the associated processing and excitation-control system. Before replacement, back up controller parameters, excitation settings, event records, and available configuration files. Photograph the existing hardware revision and wiring before removal.

How many units are normally used in a UNITROL P system?

ABB’s published UNITROL P spare-parts documentation lists 2 × GD BE1 per documented UNITROL P unit. That makes two units a reasonable starting point when establishing a critical-spares quantity, subject to the specific excitation cabinet BOM.
