Description
- Brand: ABB
- Full Model Number: GDC780BE
- Ordering Number: Verify board label; public listings show 3BHE004468R0021 and 3BHE004467R0001
- Lifecycle Status: Legacy / spare-parts sourcing required
- Core Function in System: Drive control circuit card for ABB industrial drive equipment
- Top 3 Hardcore Specs: 24 VDC listing; PCB/circuit-card construction; ABB G780 / drive-service application context
- Condition & Lead Time: Stock condition and dispatch window confirmed against the actual unit before order
Module 3: Technical Intro & Downtime Impact
At 3 AM, a failed drive control board can leave an otherwise serviceable drive unavailable to the production process. The ABB GDC780BE is identified in current spare-parts references as a circuit card associated with ABB drive equipment, including the G780 family; ABB’s own training material documents the G780 as an ACS 2000 medium-voltage drive platform. A like-for-like board replacement is aimed at restoring the control hardware path without replacing the complete drive assembly.
MTTR improves when the spare is identified before the cabinet is opened. Public product records describe GDC780BE as a board-level spare, with one current listing specifying 24 VDC, while published physical data varies by seller and should not be treated as a guaranteed ABB datasheet value. One listing gives a packaged size of 160 × 160 × 120 mm and 0.8 kg, while another reports 73 × 233 × 212 mm and 0.5 kg. Those differences are a clear reason to verify the exact hardware revision and packing configuration before freight booking.
Module 4: Dynamic Emergency Swap & Configuration Guide
1. Pre-Swap Prep — Record the Existing Board Before Isolation
Secure the drive in the site’s approved electrical maintenance state and apply LOTO. Photograph the GDC780BE label, board connectors, cable routing, terminal positions, jumpers, and any rotary or address settings. Record the full ordering code exactly as printed; this is particularly important because public records associate GDC780BE with more than one part-number variant.
2. Removal — Disconnect the Board Without Stressing the Connectors
After DC-bus discharge and absence-of-voltage verification, label each detachable connection before removal. Release the board’s retaining hardware and withdraw the circuit card using its designated handling points. Do not pry against PCB components or pull a wiring harness directly from the conductors. Keep the failed board in an ESD-safe bag for later failure analysis.
3. Installation & Configuration — Reproduce the Original Hardware State
Compare the replacement board revision, connector layout, identification markings, and any jumpers or configuration selectors with the removed board. Reinstall each connector to its original location and verify polarity, shielding, and grounding. Where the drive project contains stored hardware parameters, compare them against the recorded commissioning data before enabling the power stage. Do not substitute a visually similar GDC780-family board unless the complete ABB ordering information has been confirmed.
4. Power-On Self-Test — Verify Fault Clearance Before Release
Restore power under the approved startup procedure and observe the drive’s diagnostic indications. Look for normal initialization rather than an immediate run command. Confirm that the board is recognized, the drive diagnostic state clears as expected, and no new communication, control, or power-stage faults appear. Then perform the site-approved low-risk functional test before returning the equipment to production.

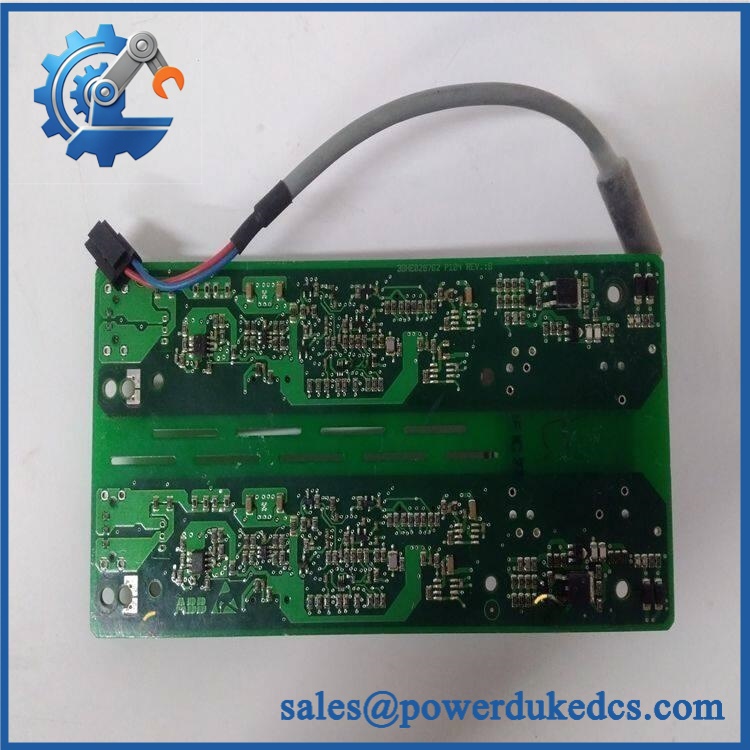

ABB GDC780BE
Module 5: Quality Assurance & Testing SOP
Our pre-shipment inspection treats the ABB GDC780BE as a board-level drive spare requiring identification control and electrical verification.
- OEM Anti-Counterfeit Visual Inspection: Compare ABB markings, ordering information, labels, board finish, connector construction, and revision identifiers with available reference records.
- Part-Number Verification: Record the exact board marking and serial information. Because public references disagree on the associated ordering number, no unit is released solely from the short model name.
- PCB Mechanical Inspection: Check connectors, mounting points, terminal interfaces, visible components, soldered areas, and enclosure condition for impact, contamination, oxidation, or bent contacts.
- Power-On Self-Test (POST): Energize the board on an appropriate ABB test arrangement and monitor available diagnostic indications for abnormal startup behavior.
- Supply Verification: Where the applicable board revision specifies a 24 VDC input, verify the measured supply against the unit’s approved electrical documentation before applying power.
- Control-Signal Verification: Exercise the applicable command, feedback, and drive-control interfaces available on the test setup.
- Functional Simulation: Simulate the relevant drive control and diagnostic conditions rather than treating the board as a generic PLC card.
- Fault-Response Test: Introduce controlled diagnostic conditions where supported and confirm that expected fault reporting is generated.
- Final QC Record: Record model, exact ordering code, serial number, hardware revision, test result, inspector, and packaging status.
Module 6: Maintenance & Reliability FAQ
Q1. Is the ABB a direct drop-in replacement, or does it require a firmware flash?
Do not assume direct interchangeability from the designation alone. Public references identify different associated ordering numbers, including 3BHE004468R0021 and 3BHE004467R0001. Match the complete board identification, hardware revision, drive type, and installed configuration before installation.
Q2. Is it safe to hot-swap the while the drive is running?
A drive control circuit card should not be treated as a plug-and-play hot-swap item unless the specific ABB equipment documentation explicitly permits it. For medium-voltage drive equipment, isolate the system, complete the required discharge period, verify absence of voltage, and follow the plant’s LOTO procedure before removing the board. ABB identifies the G780 as an ACS 2000 medium-voltage drive family, so the electrical hazard level must be taken seriously.
Q3. Will replacing the cause my current drive parameters or program to be lost?
The answer depends on what configuration is stored in the drive control architecture rather than on the PCB alone. Before replacement, back up available drive parameters and commissioning files, photograph every selector or jumper position, and export the latest service configuration where supported. A board swap should never be used as the point at which configuration records are created from memory.
Q4. What should I verify before ordering an ABB spare?
Verify the marking, full ABB ordering number, hardware revision, connector layout, drive model, and installed board revision. This is especially important here because publicly indexed supply records associate with more than one ordering number.
Q5. What are the warranty terms if the replacement fails after installation?
Warranty depends on the supplier’s written terms and the condition of the specific unit. For an industrial control-board purchase, retain the serial number, incoming inspection report, installation date, test report, alarm history, and photographs of the installed board. Those records provide the evidence needed to distinguish a board failure from an installation, wiring, parameter, or upstream power problem.
