- ABB GFD563 | Traceable Power Electronics Controller
2. Unboxing & Physical Snapshot
- Model & Brand: ABB GFD563
- Product Type: AC 800PEC High-Speed Controller Module
- Associated Part Number: GFD563 variants are commonly associated with ABB AC 800PEC controller assemblies, including 3BHE046836R0101 / 3BHE046836R0102 versions depending on configuration.
- Application: High-speed control hardware for power electronics applications, combining fast control processing with industrial automation functions. ABB AC 800PEC platforms are used where deterministic control performance is required for power conversion and similar applications.
- Approximate Physical Dimensions (W × H × D):
- Width: approximately 180 mm
- Height: approximately 250 mm
- Depth: approximately 80 mm
- Final dimensions depend on installed carrier, connectors, and enclosure arrangement.
- Estimated Shipping Weight: Approximately 1.0–2.0 kg including ESD packaging.
- What’s in the Box:
- ABB GFD563 controller module
- Front-panel interface components
- Backplane/interface connectors
- Protective ESD shielding bag
- Identification label with serial/date information
- Documentation when supplied with OEM packaging
3. Product Introduction
Installed inside the ABB AC 800PEC control cabinet ecosystem, the GFD563 provides the high-speed processing interface required for demanding power electronics control applications. The module mounts into the controller architecture through dedicated interfaces, where accurate mechanical alignment of the connector system is essential (a partially seated module can create communication or startup faults that are difficult to diagnose).
The GFD563 is intended for specialized ABB control applications rather than general PLC replacement. The AC 800PEC platform combines rapid control functions with conventional automation tasks through ABB engineering tools and dedicated I/O communication paths. Inspect the PCB surface, connector pins, retaining clips, and enclosure guides before installation. Hardware revision matching matters here.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | GFD563 |
| Product Family | AC 800PEC |
| Product Type | High-Speed Controller Module |
| Application | Power electronics and industrial control applications |
| Processor Function | Real-time control execution |
| Engineering Platform | ABB Control Builder / AC 800PEC engineering environment |
| Communication Interface | AC 800PEC system communication interfaces |
| I/O Interface | ABB optical ModuleBus and communication expansion interfaces (system dependent) |
| Power Supply | 24 VDC control supply |
| Power Consumption | Configuration dependent |
| Heat Dissipation | Equivalent to operating electrical losses |
| Memory | Firmware and application memory dependent on hardware revision |
| Mounting Method | Dedicated AC 800PEC rack/cabinet installation |
| Cooling Method | Cabinet convection cooling |
| Operating Environment | Industrial control enclosure |
| Protection Rating | IP20 when installed in cabinet |

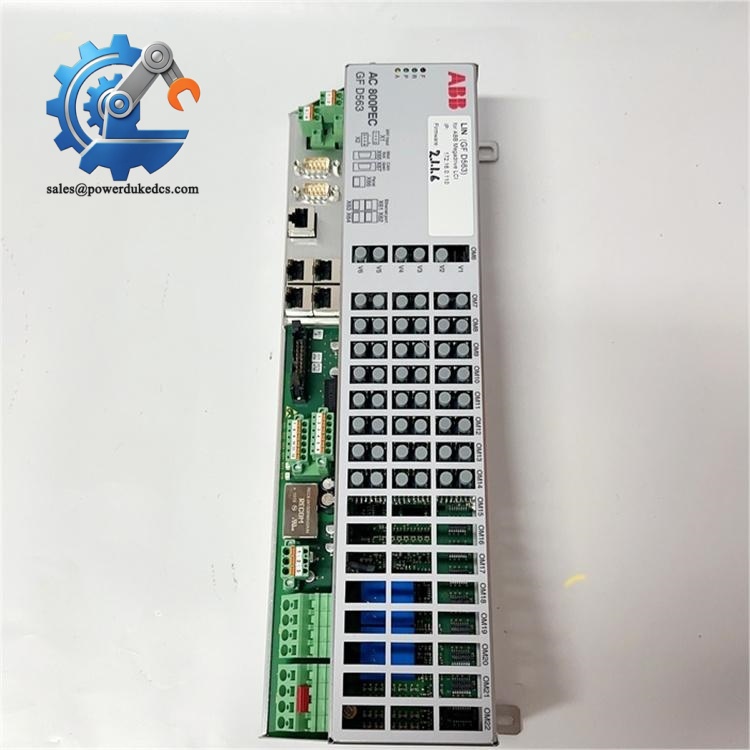

ABB GFD563
5. Global Compliance & Industry Certifications
Expected compliance considerations for this class of ABB industrial controller hardware include:
- CE Mark for applicable EMC and electrical safety requirements.
- UL/cUL Listed or Recognized when installed within approved industrial control assemblies.
- ATEX/IECEx consideration when integrated into certified hazardous-area automation systems.
- Marine approvals such as DNV GL where used in qualified offshore or vessel control applications.
For hazardous-area installations, the certification applies to the complete engineered system. The controller module alone does not establish explosion protection; enclosure type, wiring methods, barriers, and field equipment must all match the approved design.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the GFD563 inside its original anti-static (ESD) shielding bag until installation. The connector surfaces should remain protected from dust and oxidation.
- Maintain warehouse humidity below 60% RH to protect PCB coatings, connector contacts, and solder joints from long-term environmental degradation.
- Inspect stored modules every 12–24 months. Check date codes, electrolytic capacitor condition, connector integrity, and identification labels (traceability gaps can create unnecessary audit findings).
7. Physical Installation Prerequisites
- Confirm the GFD563 hardware revision matches the existing AC 800PEC configuration before replacement.
- Install only in the designated AC 800PEC rack or controller enclosure.
- Leave at least 50 mm above and below the rack assembly where cabinet design allows for natural convection cooling.
- Verify protective earth grounding and cabinet bonding before energizing.
- Use approved ESD handling procedures during installation.
- Ensure retaining clips and mechanical guides are fully engaged.
- Verify firmware, application parameters, and controller configuration before returning equipment to service.

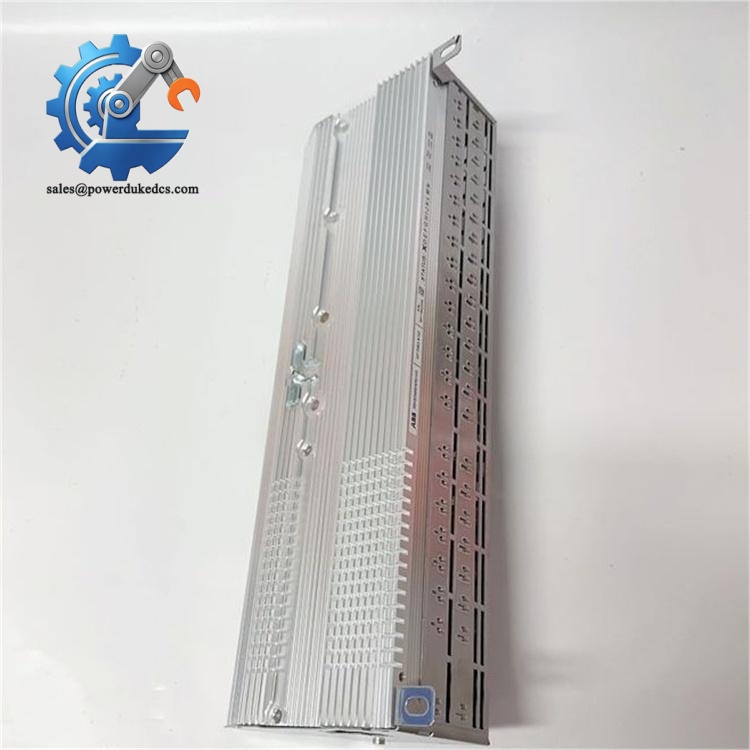

ABB GFD563
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the ABB GFD563?
A: Industrial controller modules are commonly evaluated under HS 8537 or related electrical control equipment categories. The final classification depends on the module function, destination-country customs rules, and declared use.
Q: Does Country of Origin (COO) documentation matter for this ABB controller module?
A: Yes. COO records support customs clearance, supplier qualification, warranty tracking, and lifecycle asset management. Retain ABB labels, serial records, and receiving inspection documentation.
Q: Should shipping insurance be purchased for the GFD563?
A: Yes. Controller modules contain sensitive electronic assemblies that can be affected by shock, moisture, and ESD events. Use anti-static packaging, impact protection, and declared-value freight coverage.
Q: Does the ABB GFD563 include the latest firmware pre-loaded?
A: Firmware depends on the specific production revision and AC 800PEC application configuration. Confirm firmware compatibility and engineering database settings before installation; the module should not be assumed to contain the latest approved software revision.
