ABB GJR2391500R1210 | OEM 81EU01 Input Module Warranty

Description

• Brand: ABB
• Full Model Number: GJR2391500R1210
• ABB Product Type: 81EU01 Input Module universal
• System / Series Family: ABB Procontrol P14 I/O
• Core Function: 16-channel universal input module for binary and analog transmitters
• Top 3 Hardcore Specs: 16 input channels / Binary and analog transmitter support / 81EU01 module type
• Catalog Description: 81EU01 Input Module universal
• Long Description: 16-fold for binary and analog transmitters
• Product Type: I/O Module
• HS Code: 85423190
• Stock Status: New Surplus / Factory Sealed — verify exact physical stock before quotation

ABB’s current product-detail documentation identifies GJR2391500R1210 as the 81EU01 Input Module universal, with a 16-fold configuration for binary and analog transmitters.

Module 3: Technical Product Introduction

A failed input module in an ABB Procontrol P14 cabinet can remove multiple field signals from the control system at once. The GJR2391500R1210 is the ABB 81EU01 universal input module, designed as a 16-channel I/O module for both binary and analog transmitters. That channel density makes it particularly relevant when a maintenance team needs to restore an existing P14 I/O position without redesigning individual field circuits. ABB’s product documentation specifically describes the unit as “16 fold” for binary and analog transmitters.

For replacement work, the important specification is the module architecture rather than unsupported generic claims about speed or protocol. Available ABB product data confirms the 81EU01 designation, 16-channel configuration, and Procontrol P14 I/O classification. A third-party dimensional listing gives approximately 260 × 200 × 20 mm and 0.44 kg, but those mechanical figures should be treated as reference values until the physical unit is inspected.

Module 4: Application Scenarios & Field Realities

• Inside ABB Procontrol P14 I/O cabinets, the GJR2391500R1210 is used where a single module must accommodate a combination of binary and analog transmitter signals. This is useful in legacy process installations where field instrumentation was added over several project phases.
• During a shutdown replacement, the 16-channel architecture helps maintenance personnel restore a failed I/O position without immediately changing every associated field termination. First compare the cabinet drawing with the module identification; channel numbering must match the engineering database.
• Where mixed transmitter types are present, the universal-input designation is particularly relevant. Do not assume that every possible analog signal is electrically interchangeable, however. Confirm the transmitter type and the P14 configuration before energizing the replacement.
• For long-running legacy control systems, exact part-number matching becomes more important than selecting a newer-looking ABB module. GJR2391500R1210 is specifically cataloged as 81EU01, so substitution with another P14 I/O module should be based on documented compatibility rather than physical appearance.

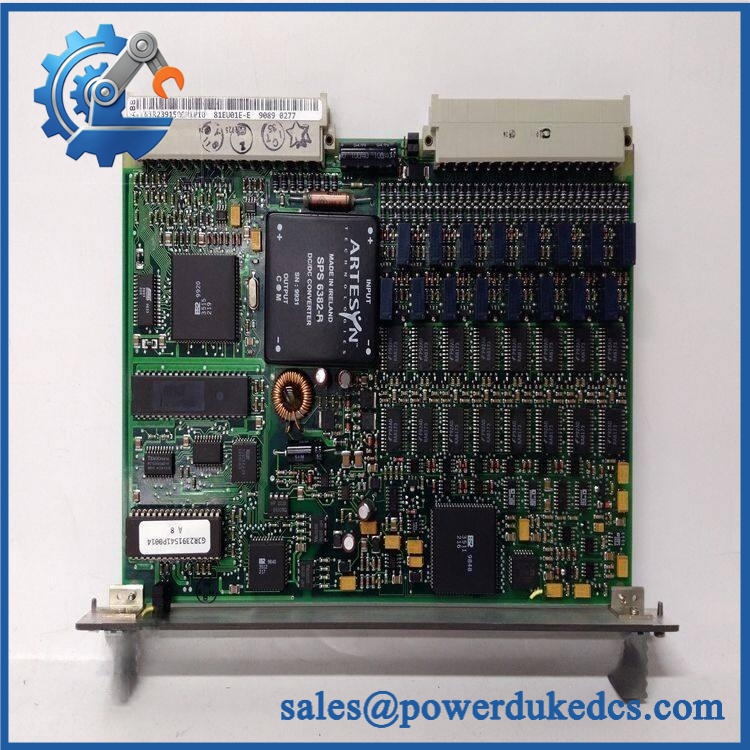

ABB GJR2391500R1210

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Configuration mismatch: The 81EU01 is specifically described as a 16-fold module for binary and analog transmitters. Before replacing it, compare the existing engineering configuration with the replacement identification. A module that fits mechanically may still have a different configured function.

Do not infer Modbus RTU compatibility: Some third-party listings incorrectly or generically associate with Modbus RTU and broad signal specifications. ABB’s product-detail record instead identifies the unit as an 81EU01 universal input module for binary and analog transmitters. Do not specify a communications protocol, input range, or accuracy in a purchase specification unless it is confirmed from the applicable ABB documentation for the installed system.

Revision and wiring check: Record the existing module’s complete label before removal. In older P14 installations, field modifications may not be reflected in the latest cabinet drawing—so terminal-by-terminal verification is worth the extra few minutes.

Module 6: Quality Assurance SOP

Our pre-shipment inspection for an ABB should use a traceable hardware-check procedure:

1. Part-number verification — Confirm the physical label reads and cross-check the 81EU01 designation against the order documentation.
2. OEM anti-counterfeit visual inspection — Examine ABB labeling, PCB markings, connectors, fasteners, enclosure construction, and manufacturing identifiers for inconsistencies or unauthorized alterations.
3. Mechanical inspection — Check the housing, connector interfaces, mounting points, PCB condition, corrosion indicators, impact marks, and evidence of previous repair.
4. Power-on self-test (POST) — Where the appropriate test fixture is available, energize the module under controlled conditions and check applicable status indicators and fault indications.
5. Input-channel verification — Using a controlled test setup, verify representative binary and analog input channels against the applicable P14 engineering specification. Record the channel response and any abnormal indication.
6. Configuration identification check — Confirm that the tested hardware corresponds to the quoted 81EU01 / configuration rather than a visually similar ABB I/O module.
7. Communication / system handshake verification — Where a compatible Procontrol P14 test environment is available, verify module recognition and expected I/O exchange with the system configuration.
8. Final inspection and packaging — Photograph the identification label, record test results, apply ESD protection, protect connectors, and package the module against shock and moisture during transportation.

The acceptance record should tie the exact serial/identification markings, visual inspection, electrical test results, and packing record to the unit being shipped. ABB documentation confirms the core identification: , 81EU01 Input Module universal, 16-fold for binary and analog transmitters.
