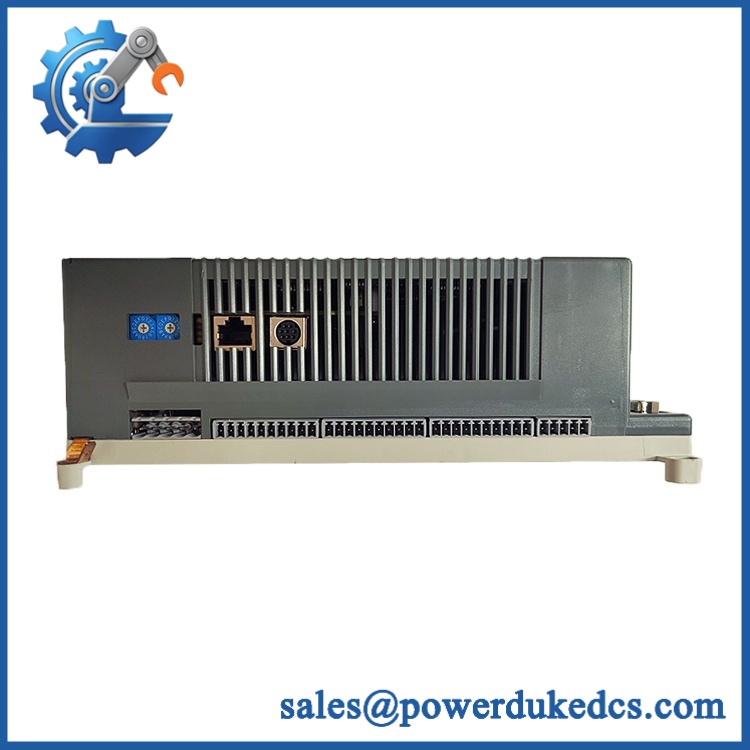

ABB GJR5253000R0200 07KT97 | AC31 PLC Central Unit

Description

• Brand: ABB
• Full Model Number: GJR5253000R0200
• System/Series Family: AC31 PLC / Advant Controller 31
• One-Sentence Core Function: 07KT97 central PLC unit providing CPU processing, local digital and analog I/O, CS31 bus communication, and application memory
• Top 3 Hardcore Specs: 24 VDC supply; 480 KB user-program memory + 256 KB user-data memory; 50 kHz maximum hardware-counter input frequency
• Stock Status: New Surplus / Fully Tested Refurbished — actual hardware revision and condition verified before shipment

Module 3: Commercial-Technical Deep Dive

A failed central unit can take an entire AC31 control node offline even when the connected field wiring and expansion modules remain serviceable. The ABB 07KT97, product ID GJR5253000R0200, is the standard central PLC unit for the AC31 family, using a 24 VDC supply and providing the processor, local I/O, memory, and CS31 system-bus interface in one unit. ABB’s product record identifies 07KT97 as the type designation and lists operation from 0 to +55°C, with storage from -25 to +75°C. The R0200 version is the standard configuration; ABB documents other 07KT97 variants with additional PROFIBUS, ARCNET, or Ethernet interfaces, so the suffix should not be ignored during replacement.

The I/O density is substantial for a compact legacy PLC. Published ABB data specifies 24 digital inputs, 16 digital transistor outputs, 8 configurable I/O points, 8 analog inputs, and 4 analog outputs, alongside 480 KB user-program memory and 256 KB user-data memory. The analog-input section supports voltage, current, and PT100 signals, while the analog outputs support ±10 V and 0–20 mA operation. A hardware-counter input frequency of up to 50 kHz is also specified. Those numbers directly affect replacement planning: a unit may power up correctly yet still be unsuitable if its exact communication variant or application configuration differs from the original.

ABB GJR5253000R0200 07KT97

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific replacement for the ABB AC31 07KT97 central PLC family.
• Official identification: GJR5253000R0200, ABB Type Designation 07KT97, Catalog Description PLC Central unit, 24V DC.
• Base configuration: The R0200 version is the standard 07KT97 configuration with CS31-Bus; ABB separately identifies R0220, R0260, R0262, R0270, and other variants with additional communication interfaces.
• Firmware requirement: Do not assume firmware is identical between old and replacement units. Record the controller firmware and application project before removal.
• Logic rewrite: A verified like-for-like replacement normally does not require rewriting the PLC application, but the complete application, I/O mapping, CS31 configuration, and communication parameters must be restored and checked.
• Communication caveat: Do not substitute a PROFIBUS-, ARCNET-, Ethernet-, or other enhanced 07KT97 variant unless the existing system architecture supports it.

⚠️ Field Traps (Watch Out)

• Variant mismatch: The family name 07KT97 is not enough. The exact R0200 suffix identifies a particular hardware configuration. An R0260 or R0270 may have a different communication interface and therefore a different system role.
• Program/data backup: Preserve both the user program and user-data configuration before removing the original CPU. The published specification provides 480 KB user-program memory and 256 KB user-data memory; an apparently healthy replacement still requires the correct application project.
• I/O scaling: Do not copy analog scaling blindly. The 07KT97 accepts multiple analog signal formats, including 0–20 mA, 4–20 mA, ±10 V, and PT100, so each channel’s configured signal type must be verified.
• CS31 bus configuration: Expansion modules and remote I/O depend on the existing CS31 architecture. Verify node addressing and bus configuration after restoring the CPU.
• ESD and 24 VDC polarity: Isolate the control supply, confirm polarity, and use grounded ESD handling before removing or installing the controller.

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB GJR5253000R0200 / 07KT97 focuses on CPU identity, local I/O, memory, and communication:

1. OEM anti-counterfeit visual inspection — verify ABB markings, 07KT97 designation, complete GJR5253000R0200 part number, serial information, revision labels, connector arrangement, and enclosure condition.
2. Variant verification — confirm the exact R0200 hardware configuration rather than accepting another 07KT97 option code.
3. PCB and connector inspection — examine terminals, connectors, solder joints, LEDs, enclosure interfaces, and evidence of corrosion, contamination, or thermal damage.
4. 24 VDC input inspection — verify supply terminals and polarity before controlled energization.
5. Power-on self-test (POST) — energize under controlled conditions and verify processor startup, status LEDs, diagnostics, and absence of abnormal current draw.
6. Digital-input verification — stimulate representative inputs and confirm correct CPU state recognition and LED/status response.
7. Digital-output verification — command representative transistor outputs using a controlled load and verify switching behavior.
8. Analog-input verification — test representative voltage, current, and PT100 input modes with calibrated sources appropriate to the channel configuration.
9. Analog-output verification — measure representative ±10 V and 0–20 mA output conditions against the applicable test procedure.
10. Hardware-counter test — where the test fixture supports it, apply a controlled pulse train below the specified 50 kHz maximum and confirm accurate counting.
11. communication handshake verification — connect the unit to a compatible expansion/I/O test environment and confirm expected bus initialization and data exchange.
12. Memory and application check — verify accessible user-memory behavior and, where customer configuration is supplied, load a controlled test project without altering the customer’s original application archive.
13. Extended observation — monitor CPU operation, I/O stability, temperature, and bus behavior during controlled continuous operation.
14. Final QC record — document part number, revision, firmware, test values, communication results, and photographs.
15. ESD packaging — use antistatic protection, connector guards, cushioning, and moisture protection before shipment.

ABB’s published product data gives the core acceptance criteria for this unit: 24 VDC, 0 to +55°C operating temperature, 480 KB user-program memory, 256 KB user-data memory, , and the stated local I/O configuration.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB GJR5253000R0200 obsolete, and how do I verify authenticity?

The belongs to ABB’s legacy AC31 PLC family. ABB’s own product record identifies the exact product ID and type designation. Verify the complete part number, R0200 suffix, labels, PCB/CPU assembly, and hardware revision before accepting a replacement.

2. Is the same as every 07KT97?

No. ABB produced several 07KT97 configurations. The R0220 version adds PROFIBUS, R0260 adds ARCNET, R0262 combines PROFIBUS and ARCNET, and later versions include Ethernet options. The R0200 version is the standard configuration with -Bus.

3. Can the 07KT97 be hot-swapped?

Do not assume live replacement is permitted. The unit is a central PLC controller with external I/O and bus connections, not a generic hot-swappable field module. Isolate the 24 VDC control supply and follow the applicable AC31 maintenance procedure and site LOTO requirements before removal.

4. What I/O is built into ?

Published ABB data specifies 24 digital inputs, 16 digital transistor outputs, 8 configurable I/O points, 8 analog inputs, and 4 analog outputs. The analog inputs support multiple voltage/current formats and PT100, while the analog outputs support ±10 V and 0–20 mA.
