Description
- Model: GRBTU-01
- Part Number: 3BSE013175R1
- Brand: ABB
- Part Type: Module Termination Unit (MTU)
- Associated Hardware: LDGRB-01 Gray Encoder Board
- Application: ABB industrial drive/control hardware
Technical Introduction
The ABB GRBTU-01 (3BSE013175R1) is a Module Termination Unit (MTU) associated with the ABB LDGRB-01 Gray Encoder Board. It serves as the termination/interface hardware between the field-side wiring and the associated encoder board assembly.
For maintenance teams supporting older ABB drive installations, this distinction matters. GRBTU-01 should not be treated as a generic PLC communication module or interchangeable terminal base. The replacement should be matched against the installed LDGRB-01 hardware and the complete ABB part-number marking.
Best Suited For
- ABB legacy drive maintenance
- Replacement of damaged GRBTU-01 termination hardware
- Spare inventory supporting LDGRB-01 encoder assemblies
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | GRBTU-01 |
| Ordering Part Number | 3BSE013175R1 |
| Product Type | Module Termination Unit (MTU) |
| Associated Board | LDGRB-01 Gray Encoder Board |
| Application | ABB industrial automation / drive systems |
| Condition | New surplus or refurbished availability may vary |
| Compatibility | Verify against the installed LDGRB-01 assembly |

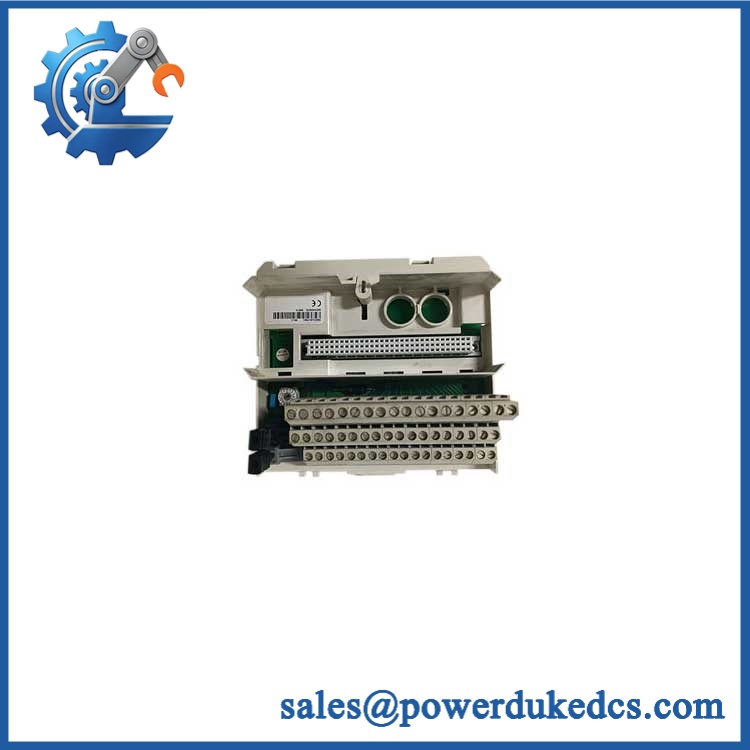

ABB GRBTU-01 3BSE013175R1
Available references identify 3BSE013175R1 as GRBTU and describe GRBTU-01 as a Module Termination Unit for the Gray Encoder Board. Publicly available sources do not provide sufficient OEM documentation to establish a complete electrical specification, terminal assignment, dimensions, or environmental rating. Please refer to the applicable ABB documentation for complete installation requirements.
Field Engineer’s Tech Notes
- Check the associated encoder board before replacing the MTU. is application-specific hardware associated with the assembly. Matching only the physical terminal layout can result in an incorrect spare.
- Document every field connection before removal. Encoder circuits can be sensitive to wiring polarity, shielding, and termination. Photograph the existing terminal arrangement and cable identification before disconnecting the old unit.
Adaptive QA & Testing Protocol
QA begins with verification of the / 3BSE013175R1 identification, followed by inspection of terminal points, connector interfaces, mounting features, and PCB or insulating components for cracking, corrosion, contamination, or heat damage.
Where the corresponding ABB test equipment is available, the unit is checked together with the applicable Gray Encoder Board rather than relying solely on a visual inspection. Encoder interface continuity and termination integrity are verified against the applicable wiring documentation.
Inspection photographs, test reports, and available test videos can be provided upon request.
Buyer’s FAQ
Q: What is ABB used for?
A: It is identified as a Module Termination Unit (MTU) for the ABB Gray Encoder Board assembly.
Q: Is 3BSE013175R1 the same identification as ?
A: Yes. ABB-related references identify with ordering number 3BSE013175R1.
Q: Is the replacement supplied new or refurbished?
A: Stock condition varies. Confirm whether the specific unit is New Surplus (NSFP), unused, or refurbished before purchase.
Q: What information should I provide for compatibility verification?
A: Provide the complete existing nameplate marking, the associated board information, and clear photographs of the terminal/connector arrangement. This provides a much safer basis for replacement verification.
