ABB IEMMU21 | Bailey Module Mounting Unit Rear Mount

Description

• Brand: ABB Bailey
• Full Model Number: IEMMU21
• System/Series Family: Bailey / Symphony control system accessory
• One-Sentence Core Function: Rear-mounted mechanical mounting unit for installing ABB control-system modules within the cabinet architecture
• Top 3 Hardcore Specs: 12-module capacity; rear-mount configuration; 0 to 70°C internal cabinet operating range
• Stock Status: New surplus or fully tested refurbished, subject to lot confirmation

ABB identifies the IEMMU21 as a Module Mounting Unit, while ABB system documentation also shows it used as part of Symphony and related control-system hardware assemblies.

Module 3: Commercial-Technical Deep Dive

A failed mounting assembly can become a surprisingly expensive outage problem when the control-system chassis is already installed and the replacement hardware does not match the original cabinet layout. The ABB IEMMU21 is a rear-mount module mounting unit intended to support ABB Bailey control-system module installation, including configurations associated with Symphony control hardware. Published technical listings specify capacity for up to 12 modules, making it useful when restoring an existing cabinet rather than redesigning the entire mounting arrangement. ABB documentation also lists the IEMMU21 within bundled system hardware for communication modules and related assemblies.

The practical ROI is mechanical compatibility and reduced installation rework—not processing speed. The IEMMU21 is documented for a 0 to 70°C internal cabinet operating range, with a published physical weight of approximately 3.63 kg; those figures matter when checking enclosure loading and thermal conditions. It is also identified as a rear-mount unit, so cabinet depth, rail position, cable routing, and existing termination hardware should be checked before ordering. (The mounting unit itself is passive hardware; do not expect firmware, scan-time, or communication performance improvements from replacing it.)

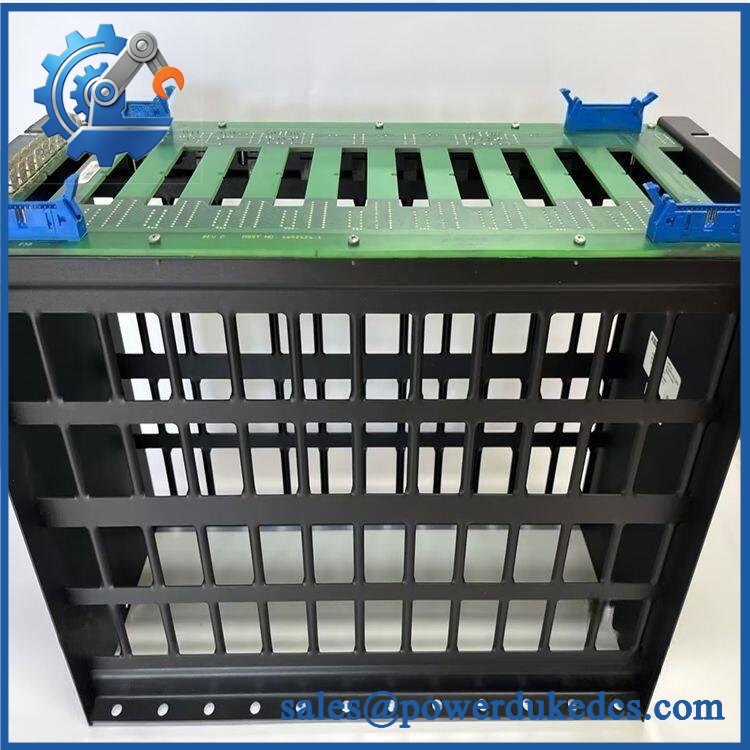

ABB IEMMU21

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Mechanical/system mounting component rather than a CPU, I/O, or communication processor.
• Firmware flash: Not applicable to the IEMMU21 itself.
• Logic rewrite: Not applicable to the mounting unit itself.
• Drop-in status: Potentially direct for an existing cabinet position, but verify the original mounting arrangement, module family, cabinet hardware, and associated cables before treating it as a blind drop-in.
• ABB documentation shows the used with Bailey/Symphony-related module assemblies, including packaged communication-system configurations.

⚠️ Field Traps (Watch Out)

1. Rear-mount geometry is easy to overlook.
Check cabinet rail spacing, mounting-hole alignment, enclosure depth, and cable bend radius before removing the original hardware. A visually similar mounting unit can still create interference with termination panels or adjacent wiring.

2. Do not confuse mounting hardware with energized module hardware.
The is a mounting unit, not the active electronic module. Any power-down, hot-swap, or energized replacement procedure must be determined by the installed control-system modules and the specific cabinet architecture—not by the part number alone.

3. Verify the complete bill of materials.
ABB’s -KIT documentation lists the mounting unit together with an NKEB01 expander bus cable, wire/terminal assemblies, cable assembly, spring nuts, and mounting screws. A bare may therefore not constitute a complete installation kit for every retrofit.

Module 5: Quality Assurance SOP

Every ABB supplied from controlled inventory should pass a documented inbound and pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Check ABB markings, part-number labeling, machining quality, mounting geometry, finish, and identification consistency against known reference documentation.
• Part-number verification: Confirm against the purchase order, internal stock record, and cabinet BOM where available.
• Mechanical inspection: Check mounting surfaces, fastener points, rails, connectors or interfaces associated with the assembly, and signs of impact, corrosion, deformation, or unauthorized modification.
• Configuration check: Confirm that the supplied unit is the required rear-mount version and not a visually similar Bailey mounting component. ABB documentation specifically identifies as a rear-mounted module mounting unit.
• Power-on self-test (POST): Not applicable to the as a passive mounting unit. Where the mounting unit is supplied together with active ABB modules as a tested assembly, the associated powered hardware can be checked for expected ERR/RUN LED states.
• Communication handshake verification: Not applicable to the passive mounting unit alone. For complete tested assemblies containing active communication modules, verify the appropriate network or system handshake after installation.
• Final QC: Photograph the part number and physical condition, record inspection results, protect mounting surfaces from transit damage, and issue a QC status record before shipment.

Module 6: CRO-Driven Buyer FAQ

1. Is the ABB obsolete, and how do I verify authenticity?

remains identifiable in ABB documentation as a module mounting unit used within Bailey/Symphony-related system assemblies. For surplus inventory, authenticity should be established through part-number markings, physical inspection, traceability records, and comparison with ABB technical documentation.

2. Can I hot-swap an ?

The itself is a passive mounting unit, so the part number does not define a hot-swap procedure. Power-down requirements must be determined from the active modules, power architecture, and cabinet procedure being used. Do not remove or install energized electronic modules solely on the assumption that the mounting hardware permits live replacement.

3. Does installing an require a firmware update or logic download?

No firmware or control-logic update is required for the mounting unit itself. Firmware and application compatibility become relevant only to the active modules installed in the mounting assembly.

4. How many modules can the accommodate?

Published product information specifies a capacity of 12 modules for the mounting unit.

5. What warranty and technical support should I expect?

Warranty coverage should be stated on the commercial quotation for the exact inventory condition supplied. Technical support should cover product identification, mechanical compatibility, inspection records, and installation guidance within documented system limits; application-specific control logic, undocumented cabinet modifications, or energized field work should be handled by qualified site personnel.
