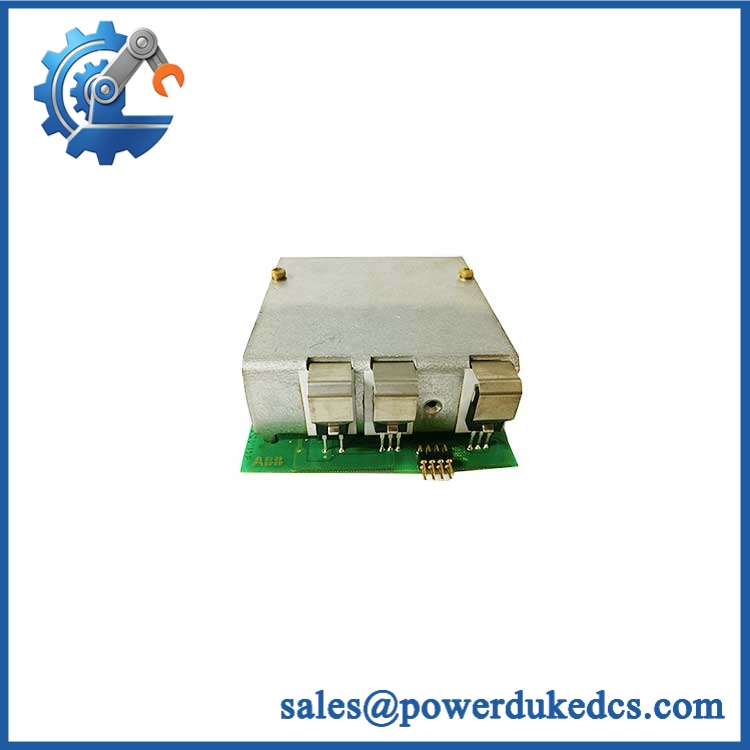

ABB KU C711 AE 3BHB003688R0101 | Gate Unit PCB Assembly

Description

• Brand: ABB
• Full Model Number: 3BHB003688R0101
• System/Series Family: ACS1000 Medium-Voltage AC Drive
• One-Sentence Core Function: KU C711 AE varnished gate-unit power-supply sub-board used within ABB ACS1000 drive assemblies
• Top 3 Hardcore Specs: ABB Type Designation KU C711 AE; varnished PCB sub-board; 0.15 kg net weight
• Board Description: PCB Assembly, Varnished, Sub-board 20V
• Functional Category: Gate Unit Power Supply Sub-board
• Application: ABB ACS1000 drive system
• Previous Product ID: 3BHB003688R0001
• ABB Ordering Status: Quote-only / made-to-order catalog item in the referenced ABB record
• Minimum Order Quantity: 1 piece
• Stocked Locations: FIPSEEXPU, US Drive Services, FIPSEEXPU007, SGRDC002EXPU
• Stock Status: New / Factory Supply Subject to Availability

ABB’s current product record identifies 3BHB003688R0101 as KU C711 AE, with the catalog description “PCB ass. varn. Subb. 20V” and a net weight of 0.15 kg. ABB also identifies it as a replacement for product ID 3BHB003688R0001 and lists the part under ACS1000 medium-voltage AC drives.

ABB KU C711 AE 3BHB003688R0101

Module 3: Commercial-Technical Deep Dive

For an ACS1000 maintenance team, a failed gate-unit power-supply sub-board is a component-level issue inside a much larger medium-voltage drive assembly. The ABB 3BHB003688R0101, Type Designation KU C711 AE, is documented by ABB as a varnished PCB sub-board associated with the gate-unit power-supply function. ABB’s parts data places the item under ACS1000 medium-voltage AC drives and identifies it as a replacement for the earlier 3BHB003688R0001 part number. That makes exact part-number matching more important than substituting a generic drive power board.

The physical specification is unusually useful for procurement. ABB lists a 0.15 kg net weight, which is consistent with a relatively small sub-board rather than a complete gate unit or drive power module. The “varnished” construction description also matters in a medium-voltage drive environment because coating and board construction are part of the component’s environmental design. One limitation should be stated clearly: the ABB catalog record does not provide a complete field-level electrical specification for the board itself, so claims such as a specific input voltage, output current, connector pinout, or operating-temperature range should not be treated as verified unless the applicable service documentation confirms them.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Drive Platform: ABB medium-voltage AC drive.
• ABB Type Designation: KU C711 AE.
• Catalog Description: PCB assembly, varnished, sub-board 20V.
• Replacement Relationship: ABB identifies 3BHB003688R0001 as the previous product ID replaced by 3BHB003688R0101.
• Component Level: Sub-board rather than a complete gate-unit assembly.
• Direct Replacement: Appropriate as the documented successor to 3BHB003688R0001, subject to the exact drive configuration and service documentation.
• Logic Rewrite: Not normally expected for a like-for-like hardware replacement; configuration and commissioning procedures still depend on the host system.
• Procurement Check: Verify the full 3BHB003688R0101 identifier and KU C711 AE designation before shipment.

⚠️ Field Traps (Watch Out)

1. Do not confuse this sub-board with a complete gate unit or power assembly.
ABB’s own description is specifically a PCB assembly / varnished sub-board 20V. Several third-party listings incorrectly characterize the same part as a complete controller, high-voltage circuit board, or generalized industrial power module. The ABB catalog designation should take precedence for identification.

2. Treat the 20V designation carefully.
The ABB description includes “Subb. 20V,” but the catalog record does not establish a complete field electrical specification such as input range, output current, or connector pinout. Do not design a replacement power interface from the catalog description alone. Verify the service drawing for the exact drive revision before energization.

3. Medium-voltage drive maintenance requires system-level isolation.
This is an internal drive component. Replacement should follow the site’s approved medium-voltage isolation, discharge, grounding, and access procedure. A low-voltage PCB inspection procedure by itself is not sufficient for an energized cabinet.

Module 5: Quality Assurance SOP

Each available ABB 3BHB003688R0101 should undergo a controlled component-level inspection before shipment:

• OEM anti-counterfeit visual inspection: Verify ABB identification, complete 3BHB003688R0101 catalog number, KU AE designation, PCB markings, connector geometry, coating, and board construction.
• Part-number verification: Confirm the requested R0101 suffix rather than assuming that the earlier 3BHB003688R0001 version is automatically identical in every service context. ABB identifies R0001 as the previous product ID.
• Varnish/coating inspection: Check the conformal coating for cracking, delamination, contamination, exposed areas, or evidence of chemical or thermal damage.
• PCB condition inspection: Examine solder joints, connectors, discrete components, transformers or inductive elements where present, and mounting points for mechanical stress.
• Weight and physical-form verification: Confirm the assembly is consistent with the ABB catalog net weight of 0.15 kg, using dimensions and mounting geometry from the applicable service documentation rather than a generic enclosure specification.
• Power-off electrical inspection: Perform controlled resistance and continuity checks against an approved service-test procedure before applying power.
• Power-on self-test (POST): Where the approved test fixture permits isolated sub-board testing, verify power-up behavior and the associated gate-unit supply indications.
• Communication handshake verification: Where the sub-board participates in an instrumented gate-unit test architecture, verify the expected host-side response and feedback path.
• Gate-unit functional simulation: Use an approved low-voltage test fixture to simulate the associated gate-unit operating conditions rather than connecting an unverified replacement directly to a production medium-voltage assembly.
• Insulation and safety checks: Perform the applicable insulation, grounding, and dielectric checks required by the maintenance procedure after installation.
• Final QC record: Record catalog number, KU AE designation, revision markings, serial/trace data where available, inspection results, test fixture, and technician sign-off.
• ESD-safe packaging: Protect the board against electrostatic discharge, moisture, vibration, and mechanical stress during shipment.

For this particular part, identification accuracy is a core quality-control item. ABB’s catalog record is quite specific about the KU AE designation, varnished sub-board construction, previous product ID, and application. A test report should preserve those identifiers instead of reducing the result to a generic “PCB passed inspection.”

Module 6: CRO-Driven Buyer FAQ

What is ABB 3BHB003688R0101?

ABB identifies 3BHB003688R0101 as , catalog description “PCB ass. varn. Subb. 20V.” The part is associated with ABB medium-voltage AC drives and is a PCB-level sub-board rather than a complete drive or complete gate-unit assembly.

Is 3BHB003688R0101 a replacement for 3BHB003688R0001?

ABB’s product data identifies 3BHB003688R0001 as the previous product ID for 3BHB003688R0101. For a live replacement, the installed drive type, revision, and service documentation should still be checked before treating the newer part number as an unconditional field swap.

Is this part a complete gate-unit power supply?

No. The ABB catalog describes it as a PCB assembly, varnished, sub-board 20V. Third-party listings use several broader descriptions, but the ABB product record supports the narrower PCB/sub-board identification.

Can I install the 3BHB003688R0101 while the is energized?

No assumption of live replacement should be made. This is an internal component of an medium-voltage drive. Installation requires the site’s approved shutdown, isolation, discharge, grounding, and access procedures for the drive assembly.

What warranty and technical support should I expect?

Warranty duration should be stated for the exact unit condition and source on the quotation. Technical support should cover part-number verification, successor-part matching, compatibility review, installation guidance, and documented inspection/test results. Detailed medium-voltage commissioning or drive-control engineering should be treated separately unless explicitly included.
