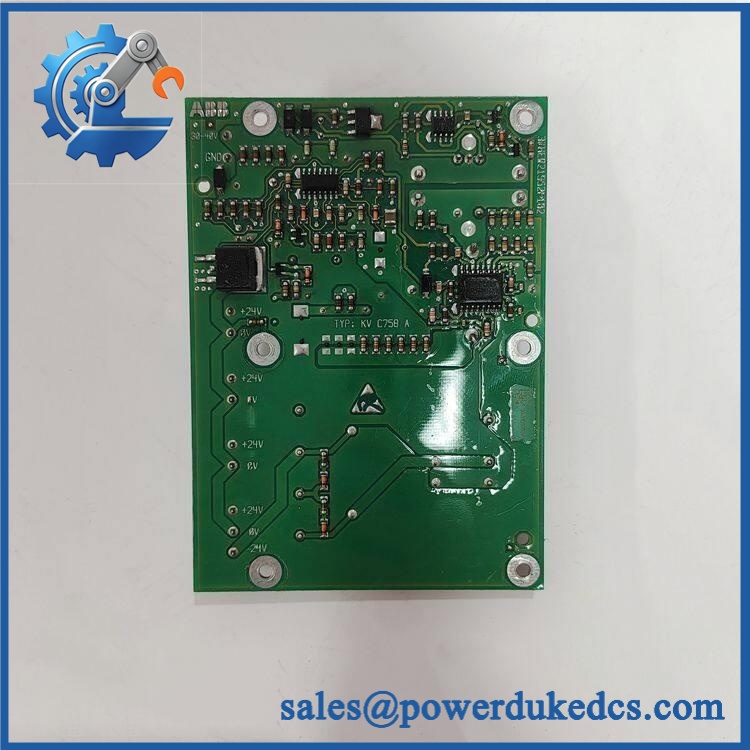

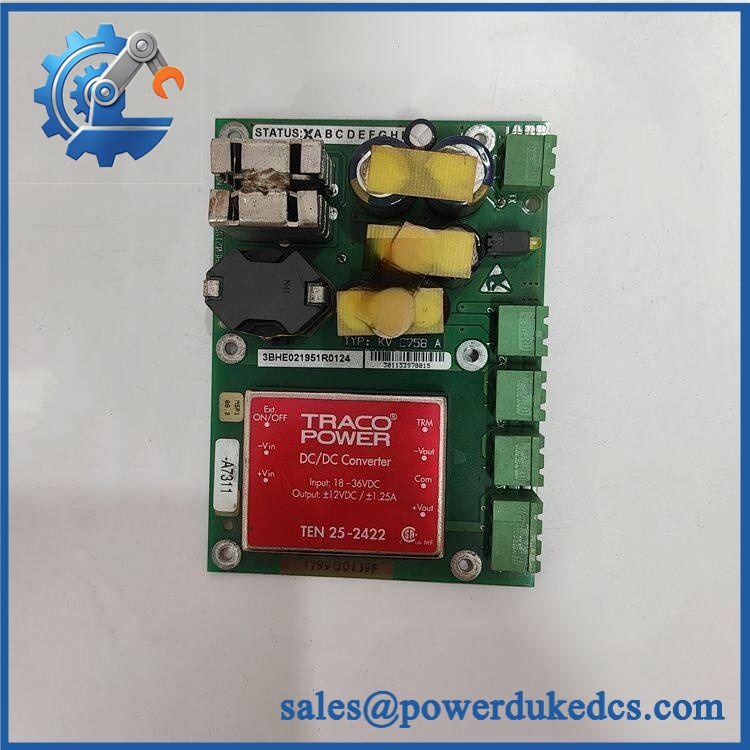

ABB KVC758A124 3BHE021951R0124 | Drive DC DC Converter

Description

• Brand: ABB
• Full Model Number: KVC758A124
• ABB Part Number: 3BHE021951R0124
• System / Series Family: ABB Medium-Voltage Drive and Power Electronics Systems
• Core Function: DC/DC converter module used within ABB drive power-electronics assemblies
• Top 3 Hardcore Specs: DC/DC conversion / ABB power-electronics architecture / 3BHE021951R0124 identification
• Product Type: DC/DC Converter Module
• Related Assembly: ABB drive power-supply and control circuitry
• Application Class: Medium-voltage drive systems
• Stock Status: New Surplus / Factory Sealed — exact physical condition to be confirmed before quotation

Module 3: Technical Product Introduction

A failed auxiliary power-conversion module can prevent an ABB medium-voltage drive from operating even when the main power semiconductor section remains healthy. The KVC758A124, identified by ABB part number 3BHE021951R0124, is listed as a DC/DC converter module associated with ABB medium-voltage drive equipment. An ABB drive spare-parts reference specifically identifies KVC758A124 / 3BHE021951R0124 as a DC/DC Converter Module, placing it in the power-conversion section rather than the primary motor-control CPU or general-purpose I/O layer.

For replacement work, the exact ordering code is critical. The available references consistently associate KVC758A124 with 3BHE021951R0124, while other listings incorrectly attach the same KVC758A124 designation to 3BHE021951R1024. Those suffixes should not be treated as interchangeable without ABB documentation for the installed drive. The safest procurement specification is therefore KVC758A124 / 3BHE021951R0124, followed by verification against the cabinet BOM and the physical label before installation.

Module 4: Application Scenarios & Field Realities

• Inside ABB medium-voltage drive cabinets, the serves in the DC/DC power-conversion portion of the equipment. It should be evaluated as part of the complete drive power architecture, not as a standalone generic DC/DC converter.
• When an auxiliary supply fault appears, maintenance personnel should check the converter module together with its upstream supply, downstream loads, connectors, fuses, and associated control circuitry. Replacing the without identifying the original overload condition can result in a second failure.
• During ACS-series drive maintenance, exact part-number verification is especially important. The available ABB spare-parts reference places / 3BHE021951R0124 among ACS1000 and ACS6000 drive components, but the customer’s actual drive model and hardware revision should still be confirmed before substitution.
• For brownfield equipment with mixed spare inventories, watch the final suffix carefully. A reference listing as 3BHE021951R1024 conflicts with the more consistently documented 3BHE021951R0124 designation. Photographing the existing nameplate before ordering is a worthwhile maintenance step.

ABB KVC758A124 3BHE021951R0124

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Ordering-code suffix: is associated with 3BHE021951R0124 in an ABB medium-voltage drive parts reference. Other online records list 3BHE021951R1024 under the same designation. Because this is a power-conversion component, do not substitute the R1024 variant solely because the model name appears identical. Verify the physical label and applicable ABB documentation first.

Do not invent electrical ratings: Available third-party listings provide conflicting specifications, including one listing that describes the unit with generic 24 VDC characteristics. Those figures are not sufficiently supported for a procurement specification. Input voltage, output voltage, power rating, efficiency, and protection limits should be taken from the documentation corresponding to the customer’s exact drive configuration.

Check the surrounding power circuit: If the original failed, inspect its upstream protection, downstream load, connectors, and wiring before energization. An auxiliary converter can fail because of a secondary fault elsewhere in the cabinet.

ABB KVC758A124 3BHE021951R0124

Module 6: Quality Assurance SOP

The pre-shipment inspection for an ABB / 3BHE021951R0124 should follow a component-specific verification sequence:

1. Part-number verification — Confirm the physical marking against and 3BHE021951R0124. Record serial number, revision markings, date codes, and other traceability information.
2. OEM anti-counterfeit visual inspection — Examine ABB markings, PCB identification, connector construction, component placement, soldering quality, labels, and manufacturing identifiers for inconsistencies or evidence of unauthorized rework.
3. Mechanical inspection — Check the enclosure, PCB, connectors, mounting points, terminal areas, and insulation surfaces for cracks, corrosion, contamination, deformation, or impact damage.
4. Power-on self-test (POST) — Where an approved test fixture is available, energize the module under controlled conditions and inspect applicable status indications and fault behavior. Do not apply an unverified supply voltage merely to demonstrate operation.
5. DC/DC conversion verification — Test the module using the applicable ABB-approved or engineering-defined input and output conditions. Record measured output behavior against the specification for the exact 3BHE021951R0124 variant.
6. Protection and load screening — Where the test system permits, verify normal operation under an appropriate controlled load and check for abnormal current draw, overheating, unstable output, or fault indication.
7. Drive-system compatibility review — Cross-check the quoted / 3BHE021951R0124 against the customer’s drive model, cabinet BOM, existing module label, and connector arrangement.
8. Communication / system handshake verification — If the converter participates in a monitored drive power architecture, verify the associated system recognizes normal auxiliary-power operation. A standalone converter test does not replace complete drive commissioning.
9. Final inspection and packaging — Photograph the exact identification label, record test results, apply ESD protection, protect connectors and PCB surfaces, and package the module against mechanical shock and moisture.

The acceptance record should tie the identification, 3BHE021951R0124 part number, physical inspection, electrical screening, and final packing record to the exact unit shipped. For this component, suffix verification is a critical procurement control because available references show conflicting part-number associations.
