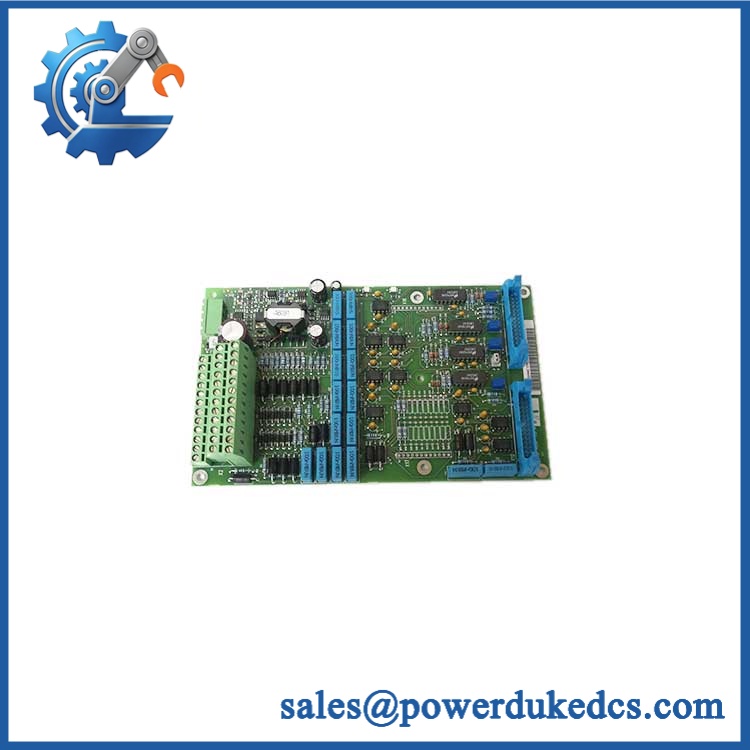

ABB LDMTR-01 63940135F | Measuring Transducer Board for ABB Drives

Description

• Model: LDMTR-01
• Part Number: 63940135F
• Brand: ABB
• Product Family: ABB LD drive / VFD spare parts
• Core Function: Electrical signal measurement and transducer interface
• Product Type: Measuring transducer board
• Associated Part Number: 3BHB007445P0001
• Application: ABB industrial drive systems

The available sources identify LDMTR-01 / 63940135F as a measuring transducer board and associate it with ABB LD drive equipment. Some reseller pages instead label it generically as an I/O module, so the precise system-level function should be confirmed against the drive-specific manual or nameplate before replacement.

Key Technical Specifications

ABB LDMTR-01 63940135F

The part-number association with 3BHB007445P0001 is independently shown by multiple industrial automation suppliers.

Product Introduction

ABB LDMTR-01 (63940135F) is identified in industrial automation parts databases as a measuring transducer board used within ABB drive equipment. Its role is associated with acquiring electrical measurement signals and providing the control system with the information required for drive monitoring and control functions.

For procurement, this is a drive-specific spare rather than a generic PLC I/O card. The exact electrical interface, signal channels, and mating hardware should therefore be checked against the installed drive revision before substitution.

Application Scenarios & Pain Points

Drive measurement boards are easy to overlook until a drive starts producing abnormal feedback, protection alarms, or incorrect control values. In a repair situation, replacing the wrong board can create a second fault rather than solve the first one.

Typical Application Scenarios

1. High-power industrial drives — electrical feedback
   The board is used within ABB drive equipment to support measurement and feedback functions needed by the control electronics.
2. Motor control systems — protection and monitoring
   Accurate measurement data is required for control logic and protective functions. A defective transducer circuit can therefore affect both regulation and fault handling.
3. Drive maintenance — legacy spare replacement
   LDMTR-01 is particularly relevant when maintaining older ABB drive installations where the original board must be matched by exact part number rather than by general board type.
4. Shutdown maintenance — critical spare stocking
   For plants running legacy ABB drives, keeping the exact board reference in stores can be more practical than relying on a generic replacement because interface and calibration characteristics may differ.

Engineering Note

I would not classify 63940135F as a universal ABB I/O module merely because several reseller pages use that description. Other sources specifically identify it as an MTR measuring transducer board, including the association with 3BHB007445P0001.

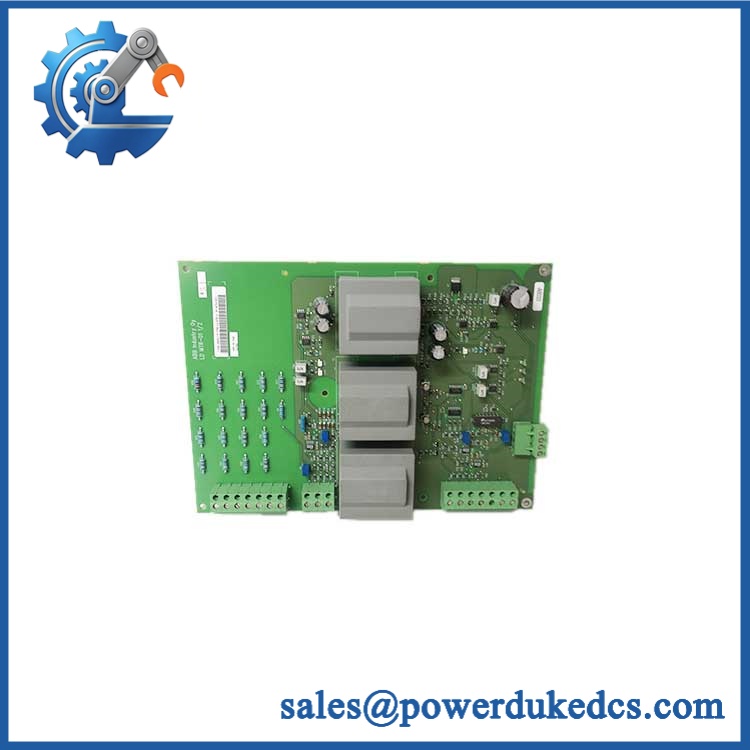

ABB LDMTR-01 63940135F

Compatibility & Replacement Matrix

Critical replacement check: verify the drive model, complete board label, revision, connector arrangement, and associated board number before installation. Public reseller data is inconsistent on the exact technical specification of this part, so unsupported voltage, channel-count, dimensional, or environmental values should not be used as purchasing specifications.
