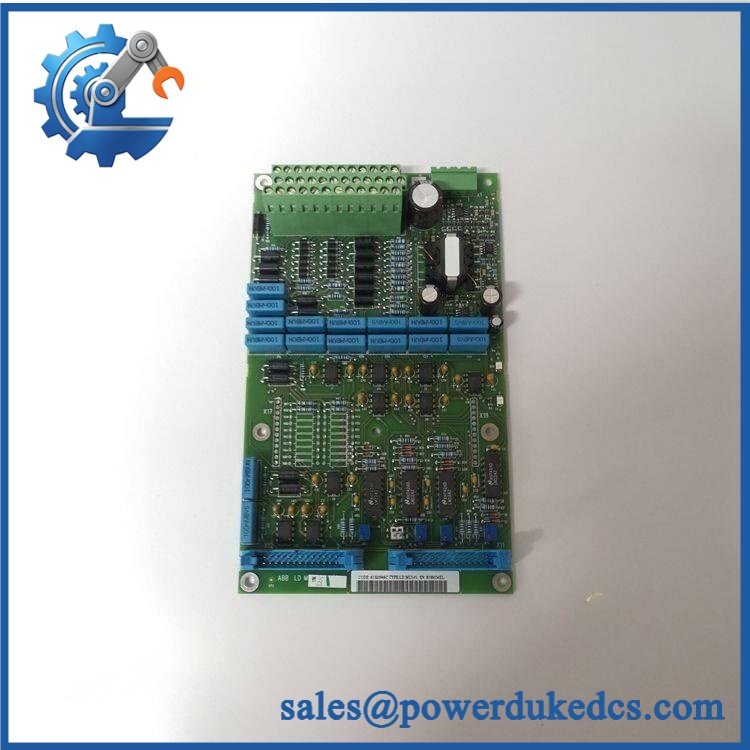

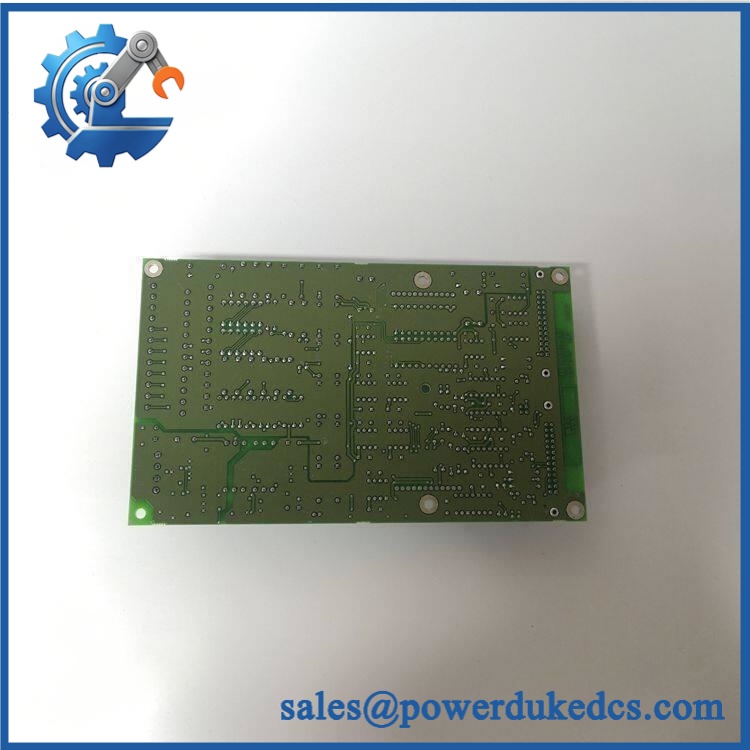

ABB LDMUI-01 61320946 | Analog Measurement Interface

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: LDMUI-01
• Related Part Numbers: 61320946C; 3AFE61320946P0001
• Lifecycle Status: Legacy / availability-dependent
• Core Function: Measurement and interface module for ABB drive systems
• Top 3 Technical Specs: Analog measurement interface; ACV 700 / DCV 700 application references; backplane/interface electronics
• Stock & Condition: New Surplus / Tested Stock; availability to be confirmed before order

Available records associate LDMUI-01 with ABB drive equipment and identify 61320946C and 3AFE61320946P0001 as related identifiers. The technical descriptions found online are inconsistent, so exact electrical ratings should be verified from the module label and applicable ABB documentation before engineering approval.

Module 3: Supply Chain & Technical Deep Dive

A failed legacy measurement interface can create a disproportionate maintenance problem: the drive itself may be repairable, yet production remains down while the obsolete control card is sourced. ABB LDMUI-01 is associated with ABB ACV 700/DCV 700 and other drive-control applications, where it serves as an interface between measurement signals and the drive control electronics. That makes an exact part-number match important when restoring an older installation.

From a TCO standpoint, the value is mainly in avoiding extended downtime and cabinet modification. Some supplier records describe analog current/voltage measurement functions and galvanic isolation, but these specifications are not consistently documented across available sources. Do not approve a substitute from those figures alone. For procurement, retain the complete identification — LDMUI-01, 61320946C, and where applicable 3AFE6132046P0001 — and compare the physical label before shipment.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Trap 1 — Part-number confusion

Online records associate LDMUI-01 with several identifiers, including 61320946C and 3AFE6132046P0001. Some pages also describe it as an analog input/output module, programmable controller module, or measurement unit. Those descriptions are not sufficiently consistent to establish interchangeability.

⚠️ Field Trap 2 — Incorrect electrical assumptions

Do not configure the replacement based on a generic claim such as “24 V DC,” “4–20 mA,” or a particular channel count. Published third-party specifications conflict with one another. Use the original drive schematic and the physical module marking as the control references.

ESD warning: Handle the board in an ESD-controlled area. Avoid touching connector contacts or exposed circuitry.

ABB LDMUI-01 61320946

Module 5: Quality Assurance & Testing SOP

For inventory stock, the unit should pass a documented inspection sequence before shipment.

1. Incoming identity inspection

• Verify ABB identification and complete part number.
• Compare the label against the purchase specification.
• Record serial number, date code, and hardware revision where visible.
• Perform an OEM-style anti-counterfeit visual inspection.
• Inspect connectors, PCB surfaces, housing, and mounting points.
• Check for corrosion, scratches, discoloration, rework marks, or damaged terminals.

2. Visual and mechanical inspection

• Examine solder joints and accessible PCB areas.
• Check connector alignment.
• Inspect mounting hardware.
• Compare board layout against known reference photographs.
• Photograph the unit before testing.

3. Electrical inspection

• Check for visible short circuits or damaged components.
• Measure relevant resistance values where the applicable test procedure defines acceptable limits.
• Verify isolation where applicable.
• Do not apply arbitrary high-voltage tests to an electronic board without the manufacturer’s test specification.

4. Power-on functional test

• Install the module in an appropriate ABB-compatible test environment.
• Apply the specified supply voltage.
• Check power-up behavior.
• Record LED/status indications where fitted.
• Check communication or interface status.
• Verify measurement channels against known test signals where the test fixture supports them.

5. System-level test

• Run the module under controlled operating conditions.
• Check analog signal response where applicable.
• Monitor for abnormal temperature rise.
• Record test readings.
• Generate a Test Report with serial number, test date, technician, and result.

6. Final inspection and packing

• QC technician signs the inspection record.
• Place the module in an ESD-safe bag.
• Add protective cushioning.
• Use a rigid carton suitable for electronic equipment.
• Apply a QC Passed label with inspection date.
• Store the test photographs with the shipment record.

For obsolete stock, this traceability matters. A clean label is useful; a documented test record is much more useful.

ABB LDMUI-01 61320946

Module 6: Procurement-Driven FAQ

1. Is genuinely in stock, and what is the cutoff for overnight shipping?

Stock should be confirmed against the physical warehouse unit, not a catalog listing. Request a current photograph showing the part number and serial/date information. For overnight dispatch, confirm the warehouse cutoff, destination, carrier service, and whether testing must be completed before release.

2. How do you verify the condition of an obsolete or surplus ?

The unit should undergo identity verification, visual inspection, connector inspection, electrical checks where applicable, and controlled power-on testing. For a tested unit, request the serial-number-linked Test Report and inspection photographs. New Surplus should be clearly separated from refurbished or repaired stock.

3. What warranty and return protection should I require?

For an industrial electronic module, specify the warranty period in the quotation and define what constitutes a functional failure. A sensible process is serial-number tracking, installation-condition documentation, and return authorization before the unit is shipped back. Warranty coverage should also state whether damage caused by incorrect wiring, overvoltage, ESD, or unauthorized modification is excluded.

4. Are there firmware compatibility issues?

Potentially, but the available references do not establish a specific firmware threshold for this part. Before replacement, record the existing module’s hardware revision and any software or drive configuration associated with it. Do not flash firmware simply because the replacement has a different revision. Confirm the approved version first.

5. Can I replace with another ABB analog module?

Not based on the model name alone. The available technical records disagree on several specifications, while the part is associated with specialized ABB drive measurement/interface applications.

For purchasing, provide the supplier with + the complete part number printed on the installed unit + a clear nameplate photograph. That combination gives engineering and procurement teams a much safer basis for a replacement decision.
