Description
- Model: LDMUI-01
- Part Number: 61320946C
- Brand: ABB
- Series: ABB LD Series
- Core Function: Industrial I/O signal interface and processing
- Product Type: I/O Module / Interface Module
- Key Specs: ABB LD-series application | I/O signal interface | Industrial automation system component
Publicly available product listings consistently identify LDMUI-01 61320946C as an ABB I/O module. However, the detailed electrical channel configuration is not sufficiently supported by an authoritative ABB technical document in the sources reviewed, so those values should be confirmed against the physical unit or original documentation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | LDMUI-01 |
| Part Number | 61320946C |
| Product Category | I/O Module / Interface Module |
| Product Family | ABB LD Series |
| Primary Function | Industrial I/O interface and signal processing |
| System Application | Industrial automation / control systems |
| Communication | Not confirmed from reliable primary documentation |
| Input Channels | Configuration-dependent; exact count requires verification |
| Output Channels | Configuration-dependent; exact count requires verification |
| Power Supply | Not confirmed from primary ABB documentation |
| Dimensions | Not confirmed from primary ABB documentation |
| Weight | A reseller listing reports 0.68 kg; verify against the physical unit before shipping |
| Status | Spare/replacement item; exact lifecycle status requires ABB catalog verification |

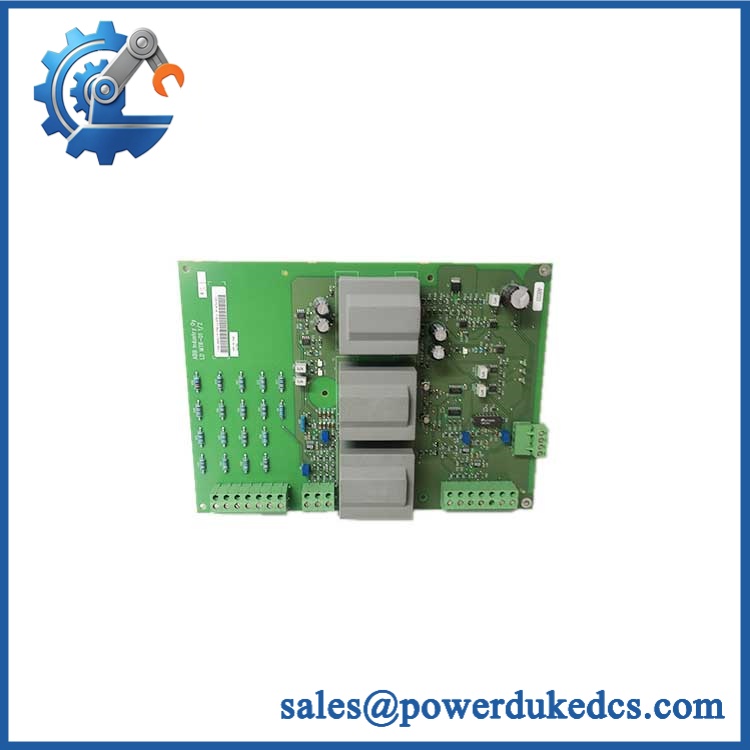

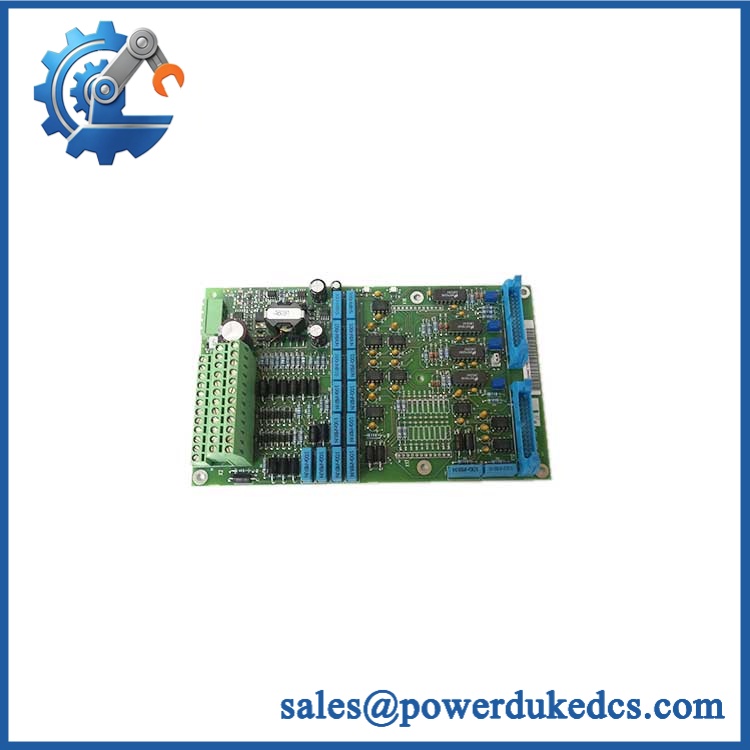

ABB LDMUI-01 61320946C
Product Introduction
The ABB LDMUI-01 61320946C is identified in industrial automation inventories as an ABB I/O module used within control-system architectures. It is intended for signal interfacing between field-level devices and the associated control system rather than serving as a general-purpose standalone PLC CPU.
For procurement, the suffix 61320946C is important. ABB part-number revisions can correspond to different hardware variants, so the complete designation should be matched against the existing module, including the nameplate and connector arrangement.
Application Scenarios & Engineering Considerations
An I/O replacement often looks simple on paper. In the field, the difficult part is usually not inserting the module; it is confirming that the signal assignment, wiring, firmware environment, and hardware revision all match.
Typical Applications
- Industrial Process Control
Used as an interface between field instruments and an industrial control system where analog or digital signals must be acquired or transferred.
- Drive and Machinery Control
Suitable for automation architectures in which field signals need to be interfaced with ABB control equipment.
- PLC/DCS Panel Replacement
Useful as a maintenance spare where an existing ABB LD-series installation requires replacement of an I/O assembly.
- Plant Maintenance Stock
Keeping one verified spare can reduce restoration time when an installed I/O module fails unexpectedly.
Engineering Note
Do not assume the complete I/O specification from the model designation alone. One commercial listing describes the device as a multifunction I/O module and gives specific power, channel, isolation, and signal figures, but those details are not corroborated by a primary ABB datasheet in the sources reviewed.
For an actual replacement order, confirm:
- Exact 61320946C revision
- Connector and terminal arrangement
- I/O channel type and quantity
- Supply voltage
- Firmware or hardware revision
- Existing system compatibility
- Physical dimensions and mounting arrangement
ABB LDMUI-01 61320946C
Compatibility & Replacement Matrix
| Existing / Candidate Model | Compatibility | Engineering Note |
|---|---|---|
| ABB LDMUI-01 61320946C | Direct same-part replacement | Preferred option. Match complete part number and hardware condition. |
| ABB LDMUI-01 61320946 | Requires verification | Same base designation, but the missing C revision should not be ignored. |
| ABB LD-series I/O modules | Requires engineering review | Similar family does not establish identical I/O mapping or connector configuration. |
| ABB LDSTA-01 | Not a direct substitute | Different functional designation; requires system-level validation. |
| ABB LDMTR-01 | Not a direct substitute | Different module designation and function. |
| Generic PLC I/O module | Not recommended as direct replacement | Signal characteristics, addressing, connectors, and system integration may differ. |
Replacement Risk Points
1. Hardware revision mismatch
The complete part number should be checked rather than purchasing only on the base designation.
2. Wiring mismatch
Before removing the old module, photograph the terminal and connector arrangement. Compare pin assignments against the replacement unit.
3. Signal-type mismatch
Do not assume an analog input is equivalent to a digital input simply because both modules are described as I/O modules.
4. System configuration
Record the existing module’s hardware/firmware information and controller configuration before replacement.
5. ESD protection
Use an antistatic wrist strap and ESD-safe work surface when handling the module.
Procurement Assessment
Identification confidence: Medium. The model/part-number pairing ABB / 61320946C is consistently identified online as an ABB I/O module, including dedicated product listings.
Technical-specification confidence: Limited. I would not publish the claimed channel count, signal ranges, power consumption, isolation voltage, or communication protocol as confirmed specifications until the original ABB datasheet or the physical nameplate is available. The available third-party listing contains those figures, but they are not independently verified.
