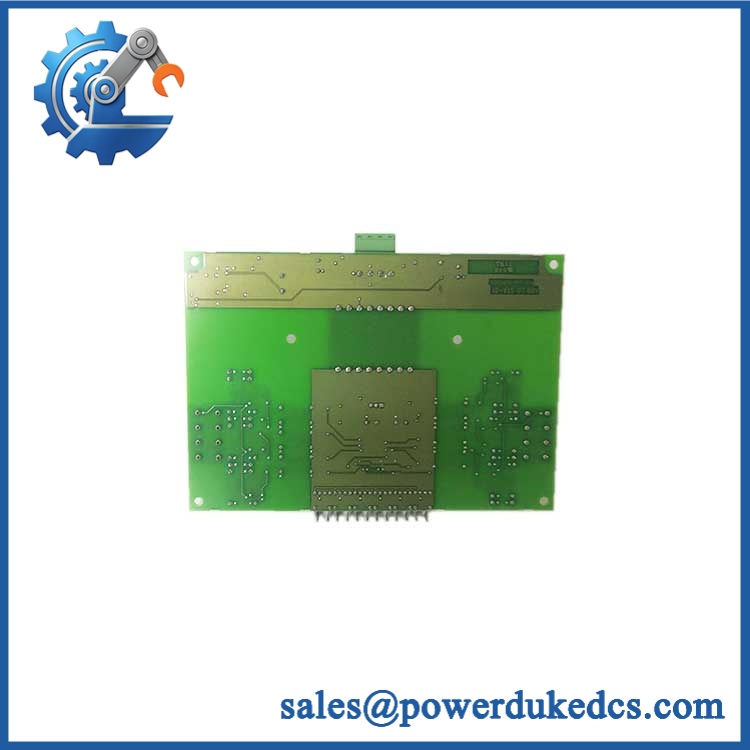

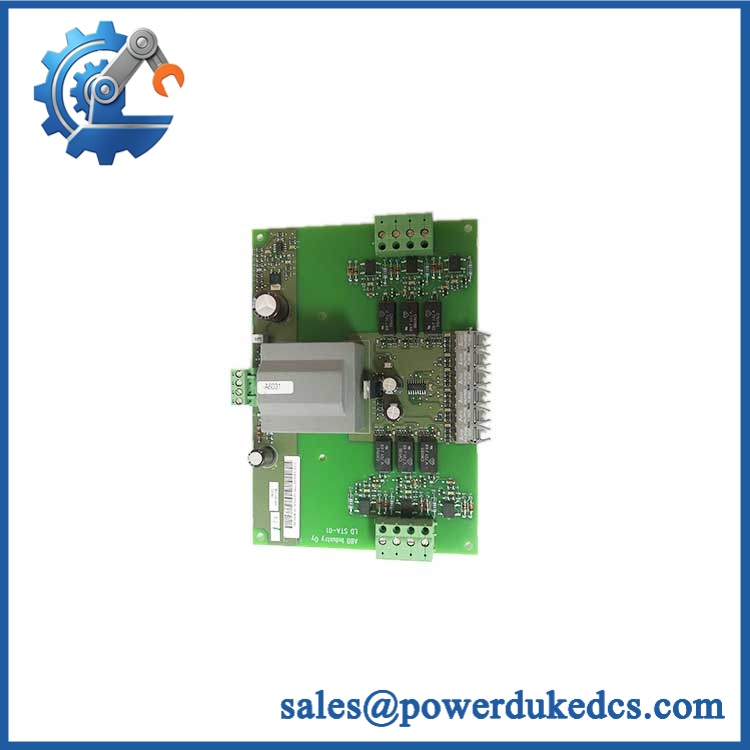

ABB LDSTA-01 63940143B | ACS6000 Thyristor Status Board

• Model: ABB LDSTA-01
• Part Number: 63940143B
• ABB Product ID: 63940143
• Brand: ABB
• Series: ACS6000 medium-voltage drive system
• Core Function: Monitors thyristor status in the drive power circuit
• Product Type: Thyristor status board / drive PCB
• Application: ACS6000 / ACS6000C drive systems
• Related Part: 3BHB007441P0001
• Catalog Description: THY. STATUS BOARD

ABB part listings identify 63940143 as the THY. STATUS BOARD, LD STA-01 for the ACS6000C system. Multiple industrial listings identify the physical variant as 63940143B and associate it with LD STA-01.

Key Technical Specifications

ABB LDSTA-01 63940143B

The clearest system-level evidence places 63940143 / LD STA-01 in the ACS6000C spare-parts list, specifically under “THY. STATUS BOARD.”

There are conflicting third-party descriptions that incorrectly call this a general PLC communication or CPU board. I would not use those specifications for procurement. The ACS6000C spare-parts evidence and the THY. STATUS BOARD description are much more specific.

Product Introduction

ABB LDSTA-01 63940143B is a thyristor status board used in ABB ACS6000-class medium-voltage drive equipment. Its role is tied to monitoring the status of the drive’s thyristor power section rather than providing a general-purpose PLC or fieldbus function. ABB spare-parts data identifies the underlying 63940143 item as THY. STATUS BOARD LD STA-01.

For replacement work, the important point is identification accuracy. The marketplace suffix 63940143B should be checked against the actual PCB marking, revision, and installed drive configuration before purchase. Do not substitute a similarly named ABB control board just because the connector layout appears close.

Application Scenarios & Pain Points

A medium-voltage drive failure is rarely a convenient maintenance event. When the power section stops reporting the expected thyristor status, the control engineer can spend hours deciding whether the problem is in the semiconductor stack, sensing circuit, interface wiring, or the monitoring board itself.

The LD STA-01 exists in that diagnostic chain. ABB’s ACS6000C spare-parts records specifically classify it as the thyristor status board, alongside other thyristor and drive power-section components.

Typical Application Scenarios

1. Mining and mineral processing — large motor drives
   ACS6000-class drives are used where a failed power-section monitoring circuit can stop major conveyors, mills, fans, or pumps. A board-level spare can therefore matter during emergency maintenance.
2. Metals and rolling equipment — medium-voltage drive systems
   Large drive cabinets contain multiple sensing and power-control stages. The status board helps the control system interpret the condition of the thyristor section.
3. Pulp, paper, and process plants — continuous-duty motors
   These plants dislike diagnostic ambiguity. A missing or incorrect thyristor-status signal can make a healthy power device look defective, sending the troubleshooting effort in the wrong direction.
4. Drive overhaul and planned maintenance — spare board replacement
   During a major outage, engineers may replace aging PCBs proactively. The correct hardware revision should be preserved rather than treating every LD board as interchangeable.

Engineering Case

I have seen this type of fault handled badly: the engineer sees a thyristor-related alarm, immediately orders a semiconductor assembly, and only later discovers that the status feedback board was the real suspect.

The better sequence is simple. Read the alarm history, verify the sensing path, compare the board revision, then test the semiconductor section. Swapping expensive power components before checking the monitoring circuit is backwards.

ABB LDSTA-01 63940143B

Compatibility & Replacement Matrix

Replacement Checks

Before installing the replacement, verify:

• Installed drive: ACS6000, , or another exact ABB drive variant
• Board marking: LD
• Part number: 63940143B / 63940143
• Revision: Compare PCB revision and hardware marking
• Connector arrangement: Match every connector before energizing
• Drive documentation: Use the applicable ABB service manual and electrical drawings

Quality Inspection & Test SOP

1. Incoming Inspection

• Verify supplier traceability and purchase documentation.
• Confirm the physical marking .
• Check 63940143B against the purchase order.
• Inspect PCB coating, connectors, mounting points, and components.
• Look for corrosion, oxidation, heat damage, cracked solder joints, or previous repair work.
• Photograph the complete board and identification labels before testing.

2. Live / Functional Test

This board is part of a medium-voltage drive assembly, so it should not be treated like an ordinary low-voltage PLC card.

The safest approach is an ABB-compatible test environment or the actual drive during a controlled maintenance outage. Do not improvise a bench power-up when the applicable service documentation requires drive-level interlocks or measurement circuits.

Functional checks should include:

• Correct board recognition by the drive control system.
• Thyristor-status feedback behavior.
• Alarm and diagnostic response.
• Connector and signal-path verification.
• Controlled drive operation where permitted by the service procedure.

Record the results in a Test Report.

3. Electrical Inspection

Use the applicable ABB service procedure rather than applying arbitrary hipot or insulation tests directly to populated electronics.

Recommended inspection steps:

• Continuity checks on appropriate unpowered circuits.
• Connector inspection.
• Grounding and shielding verification at the drive level.
• Visual inspection for heat-stressed components.
• Controlled power-up only after all isolation procedures are complete.

4. Firmware / Configuration Verification

Do not assume this PCB has a user-accessible standalone firmware revision.

Record:

• PCB hardware revision
• Drive control-board revision
• Drive software/firmware version
• Existing parameter backup
• Connector and wiring photographs
• Relevant alarm history before replacement

This information is often more valuable than simply recording the board serial number.

5. Final QC & Packaging

• QC technician sign-off.
• Protect all connectors against impact and contamination.
• Use ESD-safe packaging.
• Add cushioning inside a rigid carton.
• Attach QC Passed + test date.
• Provide test photos or video when required for customer acceptance.

Technical Pitfalls to Avoid

1. Misidentifying the Board Function

❗ LD is not a generic PLC communication module.

Some reseller pages describe it as a CPU, fieldbus, or communication board. Those descriptions conflict with the more specific spare-parts listing, which identifies it as a THY. STATUS BOARD.

For procurement, use the drive documentation and physical marking as the authority.

2. Ignoring the 63940143 / 63940143B Difference

This is important.

ABB-related records identify 63940143 as the product ID, while several current distributor listings use 63940143B for the actual LD board. That is enough of a discrepancy to justify a physical-label check before substitution.

Do not remove the suffix from your purchase description unless engineering has confirmed it.

3. Replacing the Board Before Checking the Thyristor Circuit

A thyristor-status alarm does not automatically mean the status board is defective.

Check:

• Thyristor device condition
• Gate/control circuitry
• Sensing connections
• Fiber or interface wiring where applicable
• DC/control supply
• Board connectors
• Alarm sequence

Replacing the board without checking the complete signal chain can simply move the problem around.

4. Wrong Board Revision

This is the medium-voltage-drive version of the classic firmware mismatch problem.

Two boards may share the same family name but differ in hardware revision, sensing interface, connector population, or software expectations.

Photograph the old board before removal. Record every revision marking.

5. ESD and Contamination

❗ This is a PCB used inside a power-electronics environment.

Use:

• ESD wrist strap
• ESD work surface
• Clean gloves where appropriate
• Controlled storage
• Proper connector protection

Never handle exposed PCB circuitry immediately after working around energized power electronics.

Procurement Status & Inventory Note

For MRO stocking, I would classify this as a critical, low-volume drive spare when the associated equipment remains production-critical. A single board failure can create a long troubleshooting cycle, and the board is not a generic PLC component that can be substituted casually.

ABB-related product records also show an older product ID HB007441P0001 being replaced by 63940143 for LD , which supports maintaining strict part-number traceability when building a legacy-drive spare inventory.

Recommended purchasing description:
ABB LD Thyristor Status Board, P/N 63940143B, for / — verify drive type and board revision before shipment.
