Description

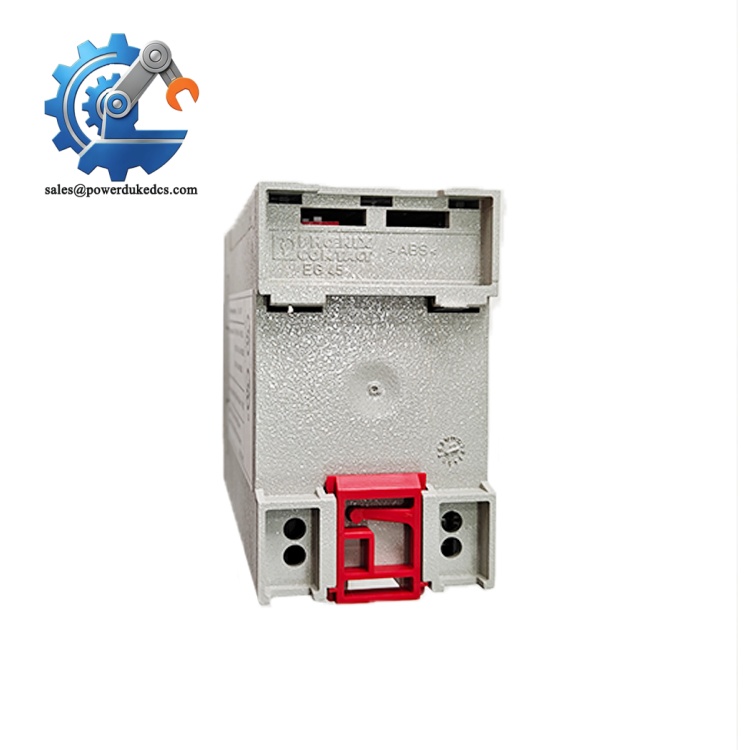

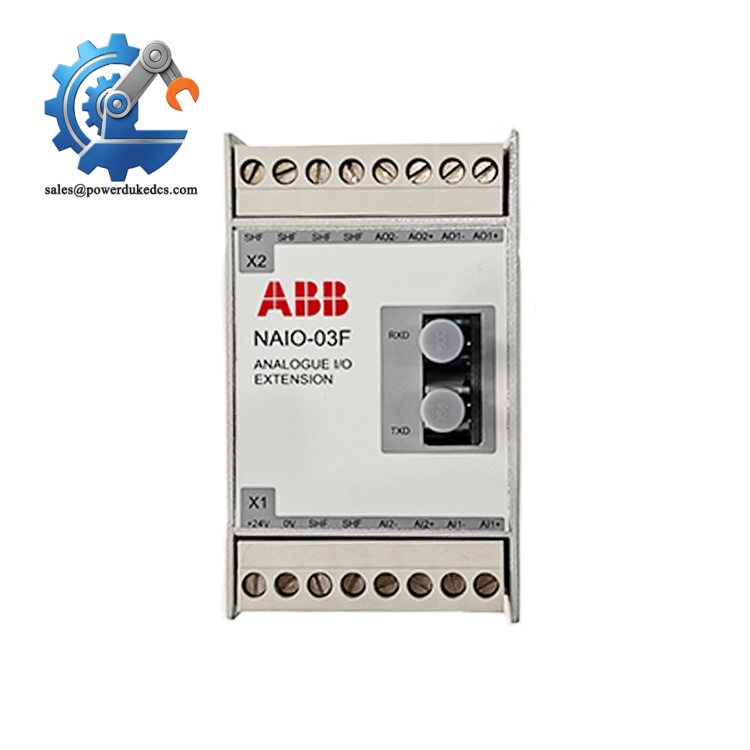

ABB NAIO-03F | Isolated Analog Input Output Board For Variable Speed Drives

Product Core Brief

Model: NAIO-03F
Brand: ABB
Series: ACS800 Drive Option Modules
Core Function: Expand analog input and analog output channels for ACS800 frequency converters
Type: Analog I/O Extension Option Board
Key Specs: 4 isolated analog inputs, 2 analog outputs; standard 0/4–20 mA, 0–10 V signal range
Condition: New Surplus, fully bench tested
Lifecycle Notice: ⚠️ ACS800 platform discontinued, limited remaining inventory

Product Introduction

Built-in analog channels on standard ACS800 drives cannot satisfy complex closed-loop control systems with multiple feedback signals. Additional external signal converters introduce extra wiring points and potential signal interference on site.

ABB NAIO-03F is a pluggable analog I/O extension board developed exclusively for ACS800 single drives and multi-drive systems. It delivers galvanic isolation on all analog input channels to suppress common-mode noise from heavy industrial environments. Operators can connect multiple sensors, transmitters and external indicator instruments without adding auxiliary signal isolators.

This option board installs internally inside the drive cabinet. No extra mounting space is required. It works well with pressure transmitters, speed feedback potentiometers and flow sensors widely used in metallurgy, water treatment and material conveying lines. Proper installation reduces analog signal drift during continuous variable-speed operation.

Key Technical Specifications

Model Code: NAIO-03F
Compatible Drives: ABB ACS800 Single Drive & ACS800 MultiDrive Series
Analog Inputs (AI): 4 channels, galvanically isolated; 0–10 V / 0(4)–20 mA configurable
Analog Outputs (AO): 2 channels; 0–10 V / 0–20 mA configurable
Resolution: 11-bit for analog channels
Signal Isolation: Galvanic isolation between AI channels and drive power circuit
Installation Method: Internal plug-in onto drive control unit slot
Configuration Tool: DrivePanel or DriveWindow software
Operating Temperature: -20 °C ~ +55 °C
Storage Temperature: -40 °C ~ +70 °C
Protection Class: Internal board, protected by drive enclosure
Supported Functions: Process feedback collection, external setpoint input, speed/torque signal output
ABB NAIO-03F

Installation & Configuration Guide

Pre-Installation Preparation (12 mins)

⚠️ Safety Preconditions

Carry out lockout-tagout procedures. Cut off all three-phase main power and control supply of the ACS800 drive. Keep power disconnected for minimum 10 minutes to discharge DC bus capacitors.

Tool Preparation

ESD wrist strap, Phillips PH1 screwdriver, mobile phone for photos, laptop installed with DriveWindow.

Backup & Pre-check

Upload all existing drive parameters and save offline. Record original control board slot layout. Confirm the target expansion slot is free and undamaged.

Old Board Removal (8 mins)

Step 1: Open drive front cover after sufficient capacitor discharge.

Step 2: Take clear photos of all flat cables connected to the original option board.

Step 3: Gently disconnect ribbon cables by holding plastic connectors; avoid pulling wires directly.

Step 4: Unscrew fixing screws and extract the board vertically.

Step 5: Check slot gold fingers for oxidation or dust contamination.

New NAIO-03F Installation (10 mins)

Step 1: Wear ESD protection at all times. Circuit chips suffer hidden damage from static electricity.

Step 2: Confirm part number NAIO-03F. Do not mix with NAIO-03 or other similar I/O boards.

Step 3: Align board with the expansion slot and insert evenly. Fasten mounting screws gently.

Step 4: Reconnect all ribbon cables strictly matching photo records. Ensure connectors click into locked position.

Self-Check List

All ribbon cables fully engaged ✅

Board secured without tilt ✅

No loose hardware left inside cabinet ✅

ESD protection worn throughout operation ✅

Power-On & Commissioning (25 mins)

Pre-power inspection: Visually confirm no cables are pinched or shorted after closing cabinet cover.

Step 1: Switch on control supply first, do not close main power immediately.

Step 2: Enter drive parameter group for option module identification. Enable NAIO-03F via parameter settings.

Step 3: Configure each AI/AO signal type (voltage or current) according to field transmitter specifications.

Step 4: Connect test signal source to analog inputs and verify measured values on control panel.

Step 5: Trigger analog output channels to confirm external instruments receive corresponding signals.

Step 6: Run drive trial operation under low speed; monitor analog feedback stability for over 30 minutes.

Troubleshooting Tip: Unstable analog readings mostly come from poor sensor cable shielding or incomplete parameter activation of the option module.

Quality Inspection Process

Incoming Visual Inspection

Check PCB surface for discoloration, scratches or repair traces. Verify clear NAIO-03F marking on the circuit board.
ESD Packaging Verification

All units packed inside certified anti-static shielding bags before delivery.
Bench Test On ACS800 Test Rack

Insert board into spare ACS800 unit. Confirm drive successfully identifies NAIO-03F after startup.
Channel Function Test

Inject standard analog signals to every AI channel; check corresponding AO output response.
Cable Interface Check

Test ribbon connector contact continuity to avoid intermittent connection faults.
Record Archive

Log serial number and test results. Pack with bubble film and attach QC Pass label.

Field Replacement Pitfall Guide

❗ Insufficient Capacitor Discharge Time

10-minute waiting rule must be followed. Residual DC voltage can cause electric shock or hardware burnout during board replacement.

❗ Confusing NAIO-03 and NAIO-03F

These two variants are not fully interchangeable. Parameter compatibility and channel characteristic differences will appear if mismatched.

❗ Skipping Module Activation Parameters

Physically installing the board alone cannot enable I/O channels. Relevant drive parameters must be set to activate the option module.

❗ Improper Cable Shielding

Unshielded analog wiring introduces heavy noise. Run sensor cables separately from high-power motor cables.

❗ Ribbon Cable Damage

Twisting or excessive pulling of flat ribbon cables leads to intermittent communication failures that are hard to diagnose.

❗ Static Damage During Installation

Many damaged boards show no visible marks. Always use grounded ESD wrist straps inside drive cabinets.

Frequently Asked Questions (FAQ)

Which ABB drives support NAIO-03F?

It is designed exclusively for ACS800 single drive and ACS800 multi-drive series. It cannot work with ACS510, ACS550, ACS880 or other drive families.
Can I use NAIO-03F for both current and voltage transmitters?

Yes. Each analog input channel can be configured for 0–10 V voltage or 4–20 mA current signals via drive parameters.
Is hot swapping allowed while the drive is powered?

Hot swap is strictly forbidden. Power must be fully isolated and DC bus discharged before installing or removing the board.
Why does the drive fail to recognize the newly installed NAIO-03F?

Common causes: loose ribbon connector, damaged slot contacts, or missing module activation parameter settings.
Can multiple NAIO-03F boards be installed in one ACS800 unit?

Depends on available expansion slots of the control unit. Check ABB ACS800 hardware manual for maximum option board quantity limits.
What warranty coverage is provided?

All stocked NAIO-03F modules carry a 12-month warranty. Damage caused by static discharge, wrong wiring or surge voltage is not covered.
What replacement options exist if NAIO-03F runs out of stock?

ACS880 uses different types of I/O extension modules. Platform migration requires full drive replacement and control logic modification; direct drop-in upgrade is unavailable.
