ABB NDBU-95C 64008366D | DDCS Branching Unit, 9 Outputs

• Model: ABB NDBU-95C
• Part Number: 64008366D
• Brand: ABB
• Series: ABB DDCS communication / branching accessories
• Core Function: Splits one DDCS link into multiple branch connections
• Product Type: DDCS branching unit
• Outputs: 9 branch outputs
• Communication: DDCS
• Rated Data Rate: 10 Mb per output
• ABB Product ID: 64008366

ABB’s official product record identifies 64008366 as NDBU-95, described as a star connection branching unit with 9 outputs, 9 × 10 Mb. ABB-related records identify the type designation as NDBU-95C and the long description as “NDBU-95C, DDCS BRANCHING.”

Key Technical Specifications

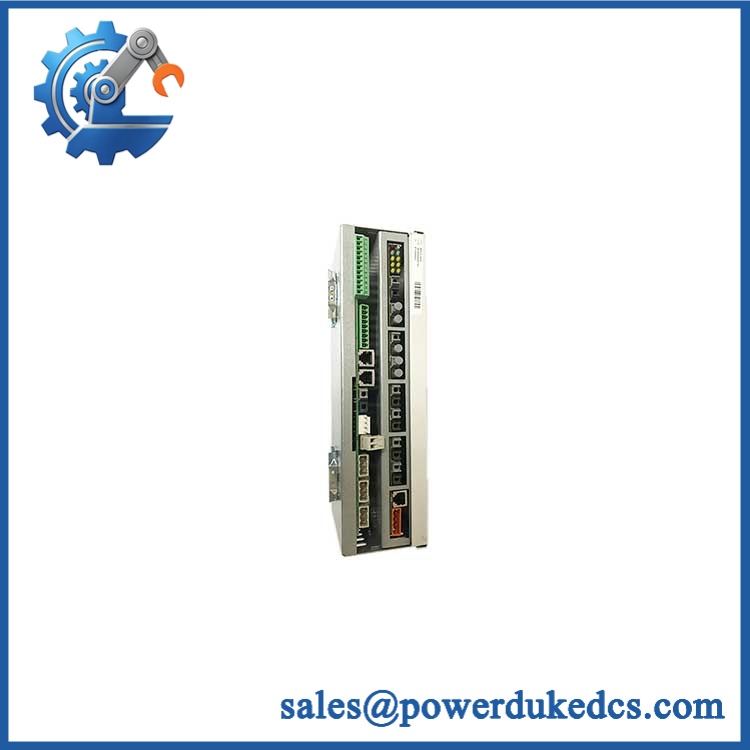

ABB NDBU-95C 64008366D

Technical note: ABB’s official listing confirms the nine-output, 10 Mb star-connection function. I would not publish connector type, supply voltage, operating temperature, or exact optical/electrical interface without the applicable ABB hardware manual, because reseller specifications for this item are inconsistent.

Product Introduction

ABB NDBU-95C 64008366D is a DDCS branching unit used to distribute an ABB drive communication connection to multiple branches. The published ABB data identifies the NDBU-95 as a star connection unit with 9 outputs at 10 Mb, making it a network distribution component rather than a PLC I/O module.

In a drive system, the important question is not simply whether another branching unit has nine ports. The DDCS interface, branch topology, transmission medium, connector arrangement, and system configuration must all match the installed ABB equipment.

Application Scenarios & Pain Points

I have seen communication faults in drive cabinets misdiagnosed as controller failures when the actual problem was much simpler: the branching point was incorrect, one branch was poorly connected, or the replacement unit belonged to a different communication arrangement.

The NDBU-95C sits in that communication path. ABB’s identification of it as a DDCS branching unit is the key fact for engineering selection.

Typical Application Scenarios

1. ABB drive systems — multi-branch DDCS communication
   Used where one DDCS communication path must be distributed to multiple connected drive-related nodes.
2. Drive control cabinets — communication topology expansion
   The star-connection architecture provides a defined branching point rather than forcing multiple devices onto an improvised wiring arrangement.
3. Large industrial drive systems — maintenance replacement
   A failed branching unit can affect several downstream communication paths at once, making the correct spare valuable during an outage.
4. Planned drive overhaul — legacy spare stocking
   Older ABB drive installations can require dedicated DDCS hardware that is not interchangeable with modern Ethernet-based communication modules.

Engineering Case

A typical fault looks like this: several drives disappear from the control system at once, and the engineer immediately suspects the main controller.

That is not always the right conclusion.

When multiple DDCS branches fail simultaneously, check the common branching point first. A problem upstream of several branches can produce a much larger symptom set than the actual hardware failure would suggest.

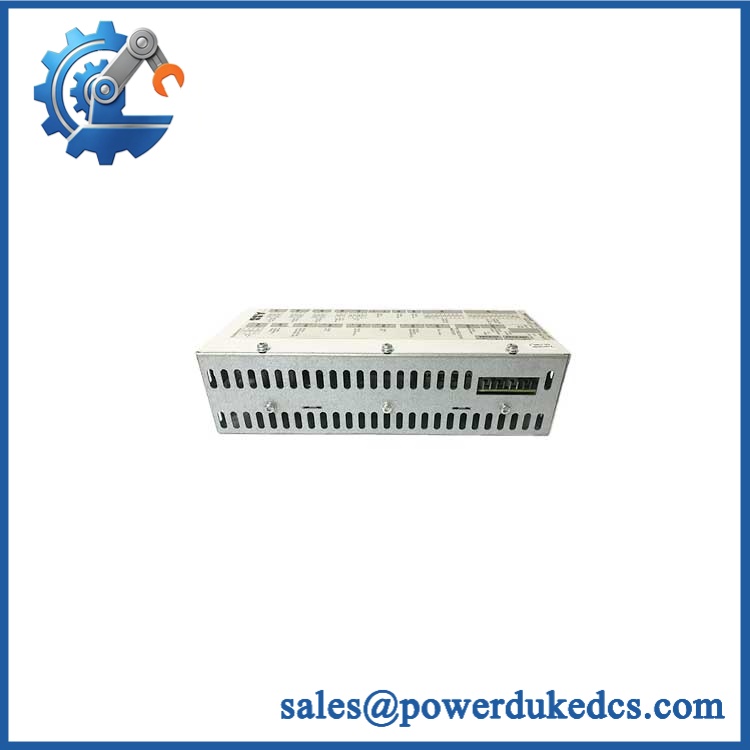

ABB NDBU-95C 64008366D

Compatibility & Replacement Matrix

Do not treat the part as a generic fiber splitter. Some reseller pages use that terminology, but ABB’s product identification specifically calls the device a DDCS branching unit.

Quality Inspection & Test SOP

1. Incoming Inspection

• Verify supplier traceability and packing documentation.
• Confirm marking.
• Confirm 64008366D on the physical label.
• Inspect connectors and housing for cracks, contamination, corrosion, or impact damage.
• Check for signs of unauthorized repair or component replacement.

2. Live / Functional Test

For a communication branching unit, a meaningful test requires a compatible ABB DDCS test environment or the actual drive system.

Recommended checks:

• Confirm the device is correctly installed.
• Verify communication with the upstream DDCS node.
• Verify each connected branch individually.
• Confirm all nine branch paths that are intended for use.
• Monitor communication errors during a controlled operating period.
• Generate a Test Report with the drive configuration and observed branch status.

A generic bench power-up alone is not sufficient evidence that the branching unit is operational.

3. Electrical / Interface Inspection

• Inspect all communication connectors.
• Check continuity only where permitted by the applicable ABB wiring procedure.
• Verify shielding and grounding arrangements at the system level.
• Inspect communication cables for damage, contamination, and incorrect routing.
• Do not apply arbitrary insulation or hipot tests to communication electronics.

4. Configuration Verification

There is no confirmed standalone user firmware requirement for this passive-style branching function.

Record instead:

• Connected drive/controller model
• DDCS topology
• Branch assignment
• Cable type
• Connector positions
• Existing communication settings
• Relevant fault history

5. Final QC & Packaging

• QC technician sign-off.
• Protect all optical/electrical communication interfaces.
• Use ESD-safe packaging.
• Add internal cushioning to prevent connector damage.
• Attach QC Passed + inspection date.
• Provide test photographs when required by the customer.

Technical Pitfalls to Avoid

1. Confusing DDCS With Ethernet

❗ is a DDCS branching component.

Do not select a replacement based only on the number of ports. Ethernet switches, fieldbus hubs, and generic optical splitters are not automatically suitable substitutes.

2. Ignoring the Part-Number Suffix

ABB’s official product database identifies 64008366 as NDBU-95, while the supplied component is marked 64008366D.

That suffix should remain in the purchasing description until the installed hardware and applicable ABB documentation confirm interchangeability.

3. Troubleshooting the Controller First

If several downstream drive nodes lose communication simultaneously, the common DDCS branching point deserves inspection early in the troubleshooting sequence.

One common-point failure can create many downstream alarms.

4. Using the Wrong Cable or Interface

A branching unit can be perfectly healthy while the communication link fails because of:

• Wrong cable type
• Damaged connector
• Poor termination
• Excessive routing stress
• Incorrect branch assignment
• Contamination at the interface

5. Treating Nine Ports as Nine Independent Ethernet Ports

The specification “9 outputs = 9 pcs 10 Mb” describes the ABB branching architecture, not nine generic network switch ports.

That distinction matters when engineers redesign an old drive cabinet.

Procurement & Inventory Note

For legacy ABB drive installations, I would classify this as a specialized communication spare rather than a general PLC module. The official ABB identification is clear: NDBU-95 / Product ID 64008366 / 9-output, 10 Mb star connection branching unit.

For the supplied 64008366D stock item, the safest purchasing description is:

ABB 64008366D, DDCS Branching Unit, 9 Outputs, 10 Mb — verify exact drive application and hardware revision before replacement.
