ABB NDCU-33CX 3AUA0000052751 | ACS800 Drive Control Unit

Description

• Brand: ABB
• Full Model Number: NDCU-33CX / 3AUA0000052751
• System/Series Family: ACS800 Drive Control Architecture
• One-Sentence Core Function: Central drive control unit providing analog I/O, digital I/O, relay outputs, 24 V auxiliary power, and DDCS communication interfaces
• Top 3 Hardcore Specs: NIOC-02C + AM33C architecture; 6 digital inputs; Multiple DDCS channels plus analog I/O and relay outputs
• Stock Status: New Surplus / Fully Tested Refurbished — Stock Condition Confirmation Required

ABB’s ACS800 hardware documentation identifies the NDCU-33Cx as a drive control unit consisting of the NIOC-02C and AM33C boards. Its documented connector set includes analog I/O, six digital inputs, relay outputs, 24 V input/output, RS-485 connections, and several DDCS communication channels.

Module 3: Commercial-Technical Deep Dive

A failed NDCU-33CX can stop the control layer of an ACS800 converter even when the power section, motor, and field wiring remain serviceable. This is not a generic communication card. ABB’s documentation places the NDCU-33Cx directly in the drive-control architecture, with the unit built around NIOC-02C and AM33C boards. The interface set includes X21 analog inputs and outputs, X22 digital inputs, X25-X27 relay outputs, 24 V supply connections, control-panel RS-485, and DDCS channels for I/O, master-follower, PC, and application-controller functions.

That I/O density is where a correct replacement pays off. X21 provides three differential analog-input channels plus two analog-output channels, while X22 provides six digital inputs and dedicated 24 V/DC ground terminals. Three relay-output groups are available through X25-X27. The control unit also exposes multiple DDCS links, making communication architecture part of the replacement decision rather than an afterthought. A physically similar ACS800 board with a different control-unit type can have a materially different connector map, so exact article-number verification remains the faster path to a controlled restart.

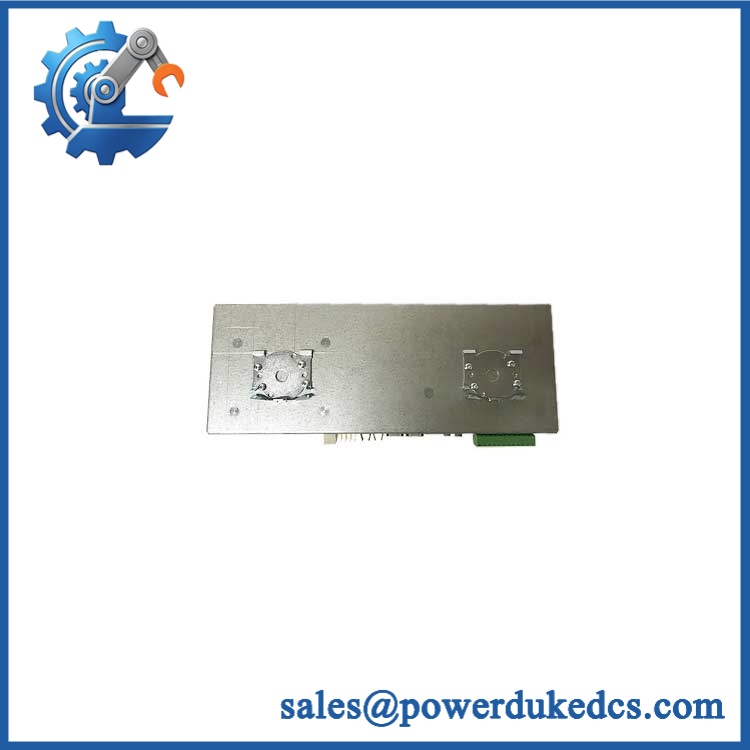

ABB NDCU-33CX 3AUA0000052751

Module 4: Compatibility & Installation Traps

Migration/Compatibility

The NDCU-33CX should be treated as an ACS800 drive control unit, not as an AC 800M controller communication module. ABB documentation explicitly describes the NDCU-33Cx within the ACS800 converter architecture and distinguishes it from the RDCU-12C used on the grid side. The documented NDCU-33Cx hardware consists of the NIOC-02C and AM33C boards.

For a like-for-like replacement, the safest assumption is hardware replacement followed by configuration verification, not an automatic logic rewrite. Firmware and parameter compatibility must still be checked against the target application and installed control configuration. Do not assume that settings from an NDCU installation transfer directly to an ACS880 platform; the product family and control architecture are different.

⚠️ Field Traps (Watch Out)

• Connector-function mismatch: X21, X22, X23-X27, X28/X29, X14, and the DDCS interfaces serve different functions. Copy terminal assignments from the existing unit and verify them against the exact drive schematic before energization. ABB’s documented NDCU connector map is unusually important here because several interfaces carry control, I/O, and communication functions.
• DDCS channel error: CH0 through CH3 and the associated DDCS connections are not interchangeable signal points. Incorrect master/follower, I/O, application-controller, or PC connections can leave the hardware apparently powered while the drive-control network remains nonfunctional.

Module 5: Quality Assurance SOP

Before shipment, each ABB NDCU-33CX should pass a documented board-level inspection and functional test sequence.

1. OEM anti-counterfeit visual inspection — Verify ABB labeling, article number 3AUA0000052751, model designation, board markings, connector construction, PCB layout, and revision identifiers where present.
2. Physical inspection — Check the NIOC-02C/AM33C assembly for corrosion, contamination, cracked components, bent connector pins, damaged terminals, heat discoloration, and unauthorized rework.
3. Configuration capture — Photograph connectors, jumpers, switches, option positions, and existing cable routing before test handling. Record all visible identifiers.
4. Power-on self-test (POST) — Apply the specified auxiliary supply through a controlled test fixture and verify startup behavior, diagnostic indications, and absence of unexpected fault states.
5. I/O verification — Check representative analog-input, analog-output, digital-input, and relay-output paths against the documented connector assignments. ABB’s hardware manual identifies three analog-input pairs plus two analog outputs on X21 and six digital inputs on X22.
6. Communication handshake verification — Verify applicable DDCS channels, control-panel RS-485, and other supported interfaces using a compatible test environment.
7. 24 V auxiliary verification — Check the documented 24 V input and auxiliary-output paths for correct electrical behavior before final release.
8. Final QC release — Record article number, revision, serial/traceability information where available, test results, photographs, inspector approval, ESD packaging, and shipment condition.

A test report should distinguish between electrically tested hardware and a fully configured service replacement. Those are not equivalent purchasing conditions.

Module 6: CRO-Driven Buyer FAQ

Is ABB NDCU-33CX 3AUA0000052751 an control unit?

Yes. ABB’s hardware documentation identifies the NDCU-33Cx specifically as a drive control unit and describes its NIOC-02C and AM33C board architecture. The same documentation provides the unit’s detailed connector and DDCS interface layout.

Can the NDCU-33CX be hot-swapped?

Do not assume hot-swap capability. The available ABB hardware documentation does not establish a universal energized replacement procedure for this control unit. Use the applicable shutdown, isolation, discharge, and ESD procedures before removing the module.

Does replacing the require firmware or parameter restoration?

Potentially. A replacement control unit should not be assumed to contain the exact application parameters, firmware state, or configuration of the failed unit. Capture the existing drive configuration before removal and verify compatibility with the target control environment before commissioning.

Is compatible with ABB ACS880 drives?

It should not be treated as a direct ACS880 substitute. The NDCU-33Cx belongs to the control architecture documented by ABB. and ACS880 use different generations of drive-control hardware, so platform migration requires a separate compatibility assessment.

What warranty and technical support are included?

Warranty duration should be confirmed for the exact inventory condition on the quotation or order confirmation. Technical support should cover part-number identification, hardware revision checks, connector verification, available test documentation, and pre-installation guidance. Site-specific drive parameter engineering, commissioning, and application changes remain the responsibility of qualified plant personnel.
