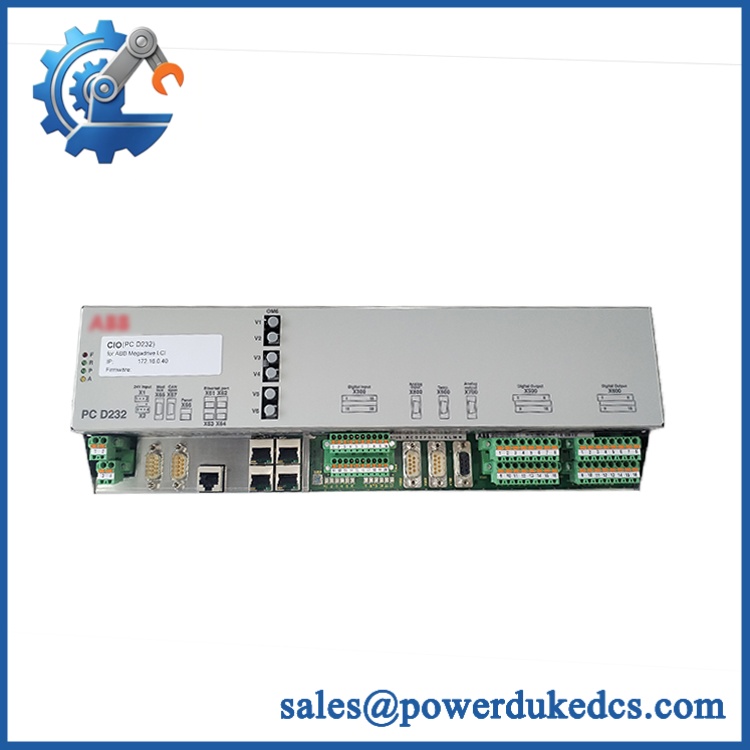

ABB PCD232A 3BHE022293R0101 | PEC80-CIO I/O Interface

Description

• Model: PC D232 A / PCD232A
• Brand: ABB
• Series: PEC80-CIO / AC 800PEC / UNITROL 6000
• Part Type: Combined Input/Output interface device
• Core Function: Handles mixed digital, analog, relay, temperature, and communications I/O within UNITROL 6000 excitation systems.
• Key I/O: 16 relay outputs, 12 digital inputs, 3 analog inputs, and 3 analog outputs.

Product Introduction

The ABB PC D232 A sits in the UNITROL 6000 control architecture as the PEC80-CIO Combined Input Output device, providing the field and system interfaces required for mixed control signals.

Built around the AC 800PEC platform, the assembly combines the PEC80-CU control unit, PEC80-PM processor, PEC80-PS power supply, and PEC80-OM optical module. It provides 16 relay outputs, 12 digital inputs, three analog inputs, three analog outputs, temperature-sensor interfaces, Ethernet switching, RS232, RS485/Modbus, CAN, and optical links. ABB identifies 3BHE022293R0101 as PC D232 A: PEC80-CIO.

In field deployments, this is typically a system-level replacement rather than a generic PLC I/O swap. Keep the installed configuration and application revision under control during a legacy migration or emergency spare replacement.

Core Technical Specifications

ABB PCD232A 3BHE022293R0101

ABB documentation identifies the unit as the PC D232 A: PEC80-CIO, while the technical datasheet describes its I/O and communication architecture.

Application Scenarios & Pain Points

A common outage scenario: an excitation-system CIO device fails and leaves temperature inputs, relay outputs, or control signals unavailable. Replacing the PCD232A restores the combined interface without redesigning the surrounding UNITROL architecture.

Generator excitation systems: The PC A is specified as a general-purpose interface device for UNITROL 6000 systems, where mixed analog and digital signals must be handled by the excitation controller.

Hydropower and thermal generation: Temperature monitoring can use PT100 or PTC inputs, while relay outputs handle plant-side control and indication circuits.

High-speed control environments: Four 10/100 MB Ethernet ports, RS485/Modbus, CAN, and optical links support communication between the CIO device and the rest of the excitation-control architecture.

Hot control cabinets: The documented operating range reaches 70°C, but actual cabinet temperature, airflow, and nearby heat-producing equipment still need to be considered during installation.

Common Error Codes & Diagnostic Symptoms

Symptom: Multiple field signals disappear simultaneously → Diagnosis: A CIO interface failure can affect several unrelated I/O groups at once because the PC A combines digital, analog, relay, and temperature interfaces in one device. → Action: Check CIO status indicators, supply inputs, and system diagnostics before replacing the module.

Symptom: UNITROL system loses communication with the CIO device → Diagnosis: The failure may involve the PEC80 control architecture, Ethernet/RS485/CAN interface, or internal module communication rather than an individual field sensor. → Action: Verify redundant 24 V supply and communication status, then replace the CIO unit if hardware diagnostics identify the module.

Symptom: Relay outputs and analog inputs fail together → Diagnosis: A common interface-device fault is more likely than simultaneous independent field-device failures. → Action: Compare channel behavior and system diagnostics; inspect the PCD232A before changing field instruments.

No universal numeric fault-code list was found in the available OEM documentation for the PCD232A itself, so unsupported error numbers should not be assigned to this part.

Cross-Reference & Lifecycle Migration

Primary identification: 3BHE022293R0101 = PC A: PEC80-CIO. ABB’s UNITROL 6000 spare-parts documentation lists the same identification under the **PC D23

A later UNITROL 6000 CIO-related product is listed as PC D235 A: FU, 3BHE032025R0101. It should not be treated as an automatic drop-in replacement for 3BHE022293R0101; the D235 A designation repres

ABB’s current product-detail document shows 3BHE022293R0101 with a minimum order quantity of one piece and country-of-origin information and.

Lifecycle guidance: Treat the PCD232A as a legacy UNITROL 6000 spare when building plant inventory. For systems that cannot tolerate prolonged excitation-system downtime, maintaining an exact, tested spare is preferable to waiting for a cross-reference approval after failure.

No reliable public source was found establishing a mandatory firmware-flash requirement when replacing this exact PCD232A. Firmware and application compatibility should therefore be checked against the installed UNITROL configuration before commissioning.

Field Engineer’s Tech Notes

1. The two redundant CIO devices are part of the architecture.
ABB’s technical documentation states that redundancy of the system interfaces can be supported using two PC A devices. Before removing one unit, document which CIO instance is installed in the redundant arrangement and preserve its configuration.

2. Do not mix up ±10 V and ±20 mA analog configurations.
The analog input section supports configurable signal types. Check the actual channel wiring, scaling, and signal source before commissioning a replacement. A correct hardware installation with incorrect signal scaling can produce misleading excitation-system measurements.

Strict QA & Testing SOP

1. Inbound inspection: Verify 3BHE022293R0101 / PC A / , revision markings, connectors, mounting hardware, optical interfaces, and enclosure condition. Inspect for corrosion, contamination, bent contacts, and heat damage.

2. Configuration capture: Photograph the supplied unit’s identification labels and any accessible configuration settings. Compare the spare against the failed unit and the applicable UNITROL documentation.

3. Power verification: Check the redundant 24 VDC supply path using a controlled test source and verify appropriate startup behavior before connecting field circuits. The documented supply range is 20–28 VDC for the redundant 24 V inputs.

4. I/O testing: Verify representative digital inputs, relay outputs, analog inputs, and analog outputs. Use calibrated analog simulation for ±10 V / current-input channels and controlled PT100/PTC simulation where the test rack supports it.

5. Communications testing: Check Ethernet, RS485/Modbus, CAN, RS232, and applicable optical communication paths according to the installed UNITROL architecture.

6. Final QA: Record test results, inspect the device again, place it in ESD-safe packaging, and protect optical interfaces and connectors during shipment.

Test reports, inspection photographs, and available test videos can be provided upon request.

Buyer’s FAQ

Is 3BHE022293R0101 the same as ?

Yes. ABB documentation identifies 3BHE022293R0101 as PC A: , and the technical datasheet identifies the pr

Can I hot-swap the ?

Do not assume hot-swapping is permitted. This is an integrated controller/interface device in a UNITROL excitation system, and replacement should follow the applicable ABB maintenance procedure with the system placed in the required safe maintenance state.

How do I verify that a supplied unit is an original ABB part?

Check the 3BHE022293R0101 Product ID, ABB identification labels, hardware markings, and physical construction. For a critical outage spare, request photographs of the actual unit and a test report before shipment.

Is the still available and what warranty applies?

ABB’s product-detail information lists 3BHE022293R0101 as a purchasable part with a minimum order quantity of one piece, but actual field availability can differ by region and inventory. Confirm current stock, condition, warranty, athe uotation.
