ABB PCD244A101 3BHE042816R0101 | Excitation Control Module

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: PCD244A101 / 3BHE042816R0101
• Lifecycle Status: Legacy / lifecycle status requires confirmation
• Core Function: Excitation system control and interface
• Top 3 Technical Specs: ABB excitation platform; 24 V DC system interface*; controller/interface PCB
• Stock & Condition: New Surplus / Tested Refurbished; physical stock confirmed before shipment

*Available secondary sources conflict on the exact electrical specifications and even the functional description of this part. Verify the nameplate, system BOM, and ABB documentation for the specific unit before engineering approval.

Module 3: Supply Chain & Technical Deep Dive

A failed excitation-system controller can create a much larger outage than the component itself suggests. ABB PCD244A101, part number 3BHE042816R0101, is identified by available supplier records as an ABB controller/control-board component associated with excitation equipment. One source specifically identifies it as an Excitation Unit Controller used in generator excitation systems.

The procurement priority here is exact identification rather than broad compatibility. Available online records are inconsistent: one source describes the part as a dual-platen component, while others describe it as a control board or excitation controller. Because of that conflict, unsupported figures such as channel count, voltage rating, IP rating, or temperature range should not be treated as confirmed specifications for this exact order number. For TCO planning, one verified spare can be justified when the installed excitation system is production-critical and replacement lead time is uncertain.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Trap 1 — Conflicting Product Descriptions

This part number appears with inconsistent descriptions in secondary databases. One listing calls it a dual platen, another calls it an excitation unit controller, and other listings describe it as a generic control/interface board.

Do not approve a substitute based only on a web description.

Match:

1. Original ABB label
2. Complete order number
3. Installed excitation-system model
4. PCB layout
5. Connector arrangement
6. Hardware revision
7. Site BOM

⚠️ Field Trap 2 — Excitation System Settings

Before removing the old controller, back up the applicable configuration and record the existing settings. Photograph terminals and connector positions.

For generator excitation equipment, incorrect wiring or configuration can affect voltage regulation and protection behavior. Commissioning must follow the site’s approved excitation-system procedure.

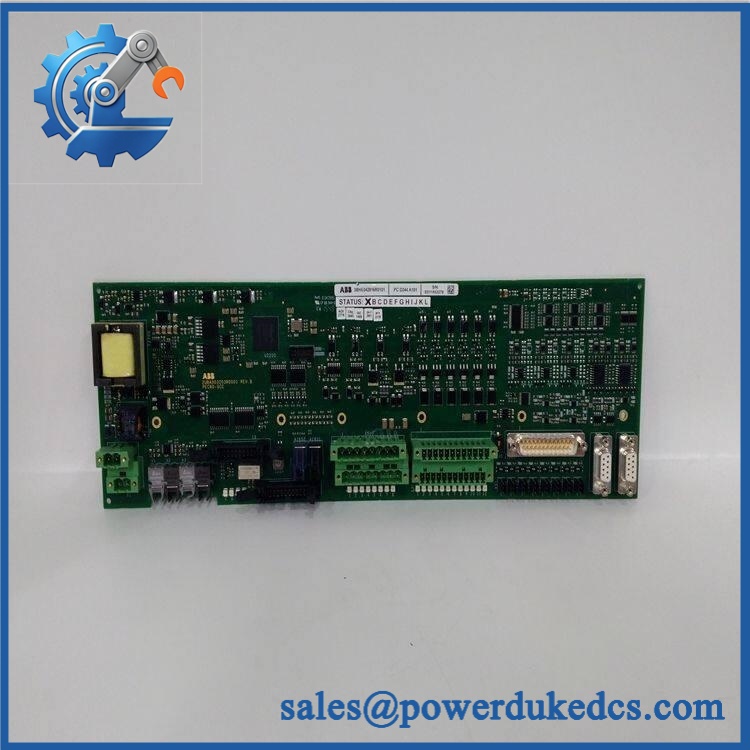

ABB PCD244A101 3BHE042816R0101

Module 5: Quality Assurance & Testing SOP

For a legacy excitation-system spare, traceability is more important than a simple visual check.

1. OEM Identification Inspection

• Verify ABB branding.
• Confirm PCD244A101 / 3BHE042816R0101.
• Record serial number.
• Record hardware revision.
• Inspect PCB, connectors, terminals, and mounting points.
• Check for corrosion, heat discoloration, cracked components, or repair traces.
• Photograph the complete identification label.

2. Power-On Self-Test

Using an approved ABB-compatible excitation-system test environment:

• Apply the specified system supply.
• Check startup behavior.
• Observe status indicators where fitted.
• Check diagnostic messages.
• Monitor abnormal current draw.
• Inspect for abnormal temperature rise.

3. Interface Test

Verify the interfaces that are actually present on the supplied hardware:

• Controller communication
• Excitation-system interface
• Digital signals
• Analog signals, where configured
• Diagnostic communication
• Protection-related interfaces, where applicable

Do not claim an I/O load test unless the actual installed interfaces have been tested.

4. Functional Test

Where the correct ABB test equipment is available:

• Load the approved test configuration.
• Verify controller recognition.
• Check command and feedback signals.
• Verify excitation-system communication.
• Check diagnostic status.
• Run an extended observation test.
• Record all test results.

For a generator application, final protection and excitation performance testing should be completed by qualified personnel before energization.

5. Final QC

• Part number recorded
• Serial number recorded
• Hardware revision recorded
• Power-on test completed
• Interface test completed
• Functional test documented
• ESD packaging applied
• Protective cushioning installed
• QC report archived
• Shipment photographs retained

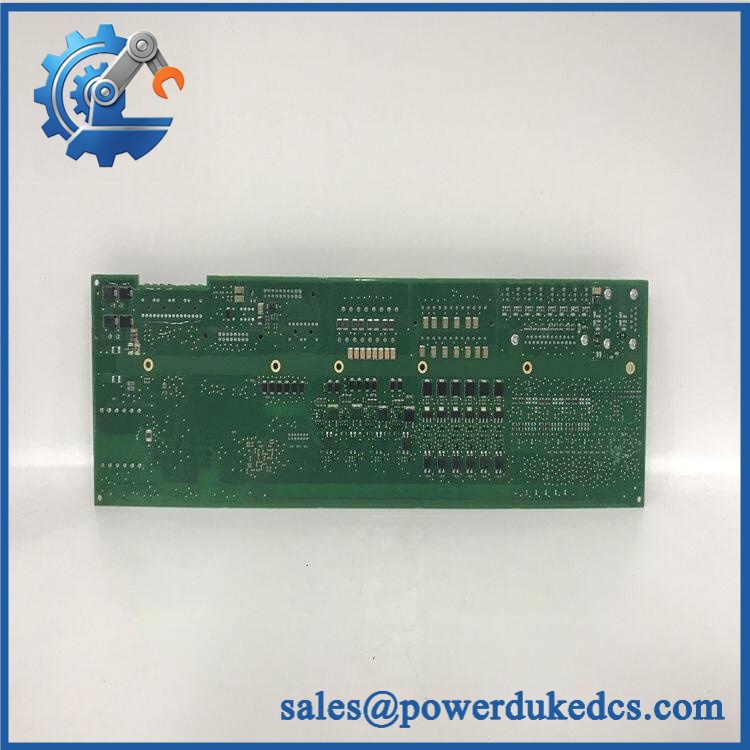

ABB PCD244A101 3BHE042816R0101

Module 6: Procurement-Driven FAQ

1. Is ABB PCD244A101 3BHE042816R0101 physically in stock, and when can it ship?

Physical inventory should be confirmed against the actual unit. For an outage-critical excitation application, confirm the exact part number, condition, test status, serial number, and shipping cutoff before issuing the purchase order.

2. How can I verify that this is the correct ABB excitation-system spare?

Do not rely on the part number alone. Send the supplier the existing unit label and system nameplate, then compare the replacement against the site BOM, connector layout, hardware revision, and installed controller configuration.

This is especially important because available secondary listings provide conflicting descriptions for this part number.

3. How do you verify the condition of a surplus unit?

The inspection should include OEM identification, serial-number recording, PCB inspection, connector inspection, power-up testing, diagnostic checks, and functional testing in a compatible environment where available.

Request the actual test record for the supplied serial number.

4. Could firmware or configuration differences cause a replacement problem?

Yes. The replacement should be checked against the installed excitation-system configuration before commissioning. Record the existing firmware and configuration first, then verify the replacement before loading any saved parameters.

5. Can I use another ABB board with the same physical dimensions as a substitute?

No—not without engineering confirmation. Physical dimensions do not establish electrical or functional compatibility. For this part, the available descriptions are inconsistent enough that exact part-number and system-level verification should be treated as mandatory.
