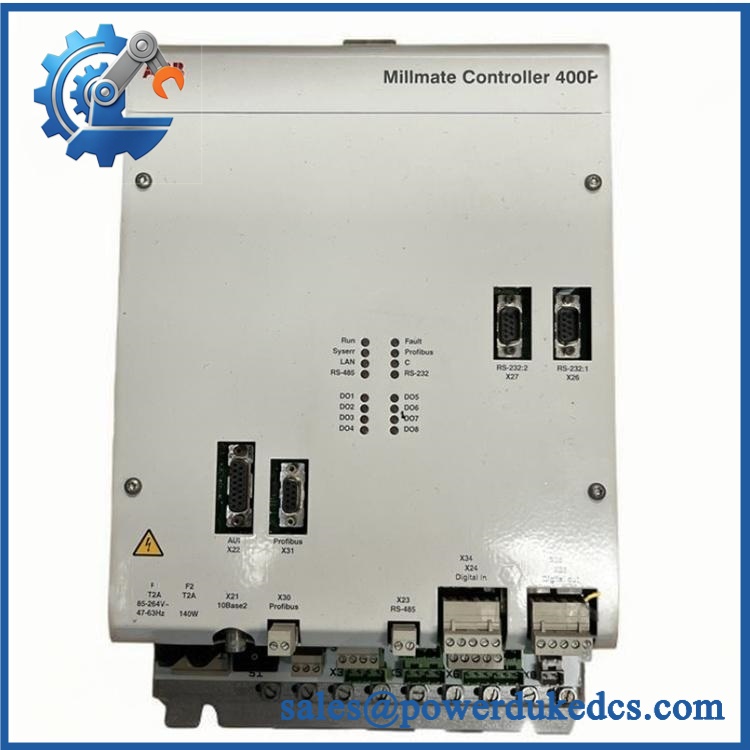

ABB PFCA401SF 3BSE024387R4 | Direct Replacement Tension Measurement Unit

Description

• Model: PFCA401SF
• Brand: ABB
• Series: Millmate / Web Tension Control
• Core Function: Processes tension measurement signals
• Type: Tension control unit
• Key Specs: 4 analog inputs; Profibus interface; web tension load-cell applications
• Condition: New Original (New Surplus), if supplied as new surplus

ABB product information identifies 3BSE024387R4 as PFCA 401SF, a control unit with 4 analog inputs and Profibus for web-tension load cells. It also lists Sweden as the country of origin, a 5 kg net weight, and 5 kg gross weight.



Product Introduction

When a rolling or web-processing line starts showing unstable tension readings, the controller is one of the places engineers check. ABB PFCA401SF 3BSE024387R4 is a dedicated control unit for web-tension measurement systems, designed to work with ABB tension load cells and related measurement electronics. ABB’s product data describes it specifically as a PFCA 401SF Control Unit with four analog inputs and Profibus.

The unit belongs to the Millmate tension-control product family. One practical point matters during replacement: do not identify it only by the housing appearance. Confirm the complete order number, installed system, sensor arrangement, and communication configuration. Available ABB-related documentation also associates the PFCA401 family with 100–240 V AC supply and configurable analog/digital I/O, but the exact PFCA401SF configuration should be checked against the original documentation before commissioning.



Key Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product ID	3BSE024387R4
ABB Type Designation	PFCA 401SF
Catalog Description	PFCA 401SF Control Unit
Product Type	Control Unit
Main Application	Web tension measurement/control
Analog Inputs	4
Communication	Profibus
Compatible Sensors	Web tension load cells
Product Family	Millmate / Tension Electronics
Country of Origin Listed	Sweden
Net Weight	5 kg
Gross Weight	5 kg
Minimum Order Quantity	1 piece
ABB Product Status Data	Part / stocked spare information available

ABB product information lists the device as a PFCA 401SF Control Unit, with four analog inputs and Profibus for web-tension load cells.

Technical data requiring caution: Some third-party listings add detailed figures such as 24 V DC supply, 4–20 mA inputs, Ethernet, PROFINET, 0–5 A outputs, or DIN-rail mounting. These claims conflict with the more specific ABB product description and should not be treated as confirmed specifications for 3BSE024387R4 without the original ABB manual or nameplate.



Installation & Configuration Guide

Estimated replacement time: 30–45 minutes, assuming the replacement has already been configured or the original configuration can be restored.

Stage 1: Pre-Installation — About 10 minutes

⚠️ Safety first.

1. Notify the production team of the planned shutdown.
2. Stop the web-processing machine safely.
3. Isolate the controller and associated power circuits.
4. Verify that hazardous voltage is absent.
5. Wear an ESD wrist strap when handling the controller.

Prepare:

• ESD wrist strap and mat
• Insulated screwdriver
• Multimeter
• Cable labels
• Marker
• Phone or camera
• Backup/configuration storage

Before touching the wiring, photograph:

• Complete controller position
• Every terminal connection
• Profibus connector
• Address/configuration switches, if fitted
• Sensor wiring
• Grounding connection
• Existing nameplate

Take the photos first. It is much easier to compare a new installation against a clear photo than to reconstruct the wiring from memory.

Stage 2: Remove Existing Unit — About 8–10 minutes

1. Record the old unit’s serial number.
2. Label every connected cable.
3. Disconnect the power supply after isolation.
4. Disconnect analog sensor wiring.
5. Disconnect the Profibus connection.
6. Release the mounting hardware.
7. Remove the controller carefully.
8. Inspect the connector pins and terminals.

Pay special attention to the tension-sensor wiring.

A swapped signal pair can produce plausible-looking data while the actual tension value is wrong. That is worse than an obvious communication fault because the machine may continue running.

Stage 3: Install Replacement — About 10 minutes

1. Confirm PFCA401SF / 3BSE024387R4 against the old nameplate.
2. Check connector condition.
3. Install the replacement controller.
4. Reconnect the sensor wiring according to the original wiring diagram.
5. Reconnect Profibus.
6. Restore the power connection.
7. Verify shielding and grounding.
8. Compare every terminal against the photographs.

Do not assume that a similar PFCA module has identical terminal assignments.

ABB’s PFCA family contains several related products, including PFCA401SF and other tension-control components. The exact product number matters.

Stage 4: Power-On and Functional Test — About 10–15 minutes

1. Recheck all connections.
2. Energize the controller according to the machine procedure.
3. Check status indicators.
4. Confirm Profibus communication.
5. Check that all four analog input channels report valid values where applicable.
6. Verify zero/tare behavior.
7. Apply a known tension condition.
8. Compare displayed tension with the reference value.
9. Check alarm and limit functions.
10. Run the machine at low speed before returning to normal production.

Do not calibrate from memory. Use the original machine parameters and approved sensor calibration procedure.

Record:

• Replacement date
• New serial number
• Firmware/version information, if accessible
• Profibus address
• Configuration values
• Calibration result
• Test engineer



FAQ

1. What is ABB 3BSE024387R4 used for?

It is the PFCA401SF control unit used in ABB web-tension measurement systems. ABB’s product information specifies four analog inputs and Profibus, with the unit intended for web-tension load-cell applications.

2. Is the same as PFCA401?

Not necessarily.

The complete designation matters:

Identification	Meaning
PFCA401	Product family/reference
	Specific type designation
3BSE024387R4	Exact ABB product/order number

For purchasing, use 3BSE024387R4 together with the designation. Do not order only by the shortened PFCA401 name.

3. My system uses Profibus. Can this unit work with it?

ABB’s product data specifically lists Profibus for the and identifies four analog inputs for web-tension load cells.

Before replacement, record the existing Profibus address and configuration. A physically correct module with the wrong bus configuration can still fail to communicate.

4. Can I directly replace a failed unit?

Usually, replacement planning should start with an exact part-number match.

Check these five items:

1. ABB order number
2. Type designation
3. Sensor/load-cell configuration
4. Profibus configuration
5. Existing calibration parameters

If any item differs, confirm compatibility with the applicable ABB documentation before energizing the machine.

5. What should I ask for when buying a surplus unit?

Ask for:

• Clear nameplate photograph
• Exact product number
• Serial number
• Physical-condition photographs
• Functional test information
• Packaging photographs
• Warranty terms
• Actual stock status

For a high-value control unit, test evidence is more useful than a generic product photograph.

6. How should I stock this spare?

This is a classic slow-moving critical spare.

If one failed PFCA unit can stop a rolling or web-processing line, a reasonable starting policy is:

• Min: 1 unit
• Max: 1–2 units
• Buffer stock: 1 unit on-site for critical equipment
• Reorder trigger: When the only spare is consumed
• Last-time-buy: Consider if the installed system is approaching EOL
• Vendor consolidation: Prefer a supplier that can provide tested units and traceable documentation

Holding more than two units should be justified by failure history and lead time variability. The part has a relatively high capital cost, so excess stock directly increases carrying cost.

7. How do I avoid buying the wrong PFCA module?

Use the full ABB number.

The PFCA family contains related control and tension-measurement products, and online listings sometimes mix PFCA401, , -related components, and unrelated excitation-control descriptions.

For procurement, send the supplier the 3BSE024387R4 nameplate photo plus the complete machine/system model. That small step can prevent an expensive return and several hours of production downtime.
