ABB PFEA111-65 3BSE050090R65 | OEM Fast Shipping Unit

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: PFEA111-65
• ABB Product ID: 3BSE050090R65
• Lifecycle Status: Active product record / spare part
• Core Function: Web tension measurement and signal processing
• Top 3 Technical Specs: 2 load cell inputs; A+B voltage/current output; IP65 enclosure
• Supply Voltage: 24 V DC
• Power Consumption: Approx. 8 W
• Operating Temperature: +5 to +55 °C
• Stock & Condition: New Original / New Surplus; physical stock confirmation required

ABB’s current product record identifies 3BSE050090R65 as PFEA111-65 Tension Electronics. ABB documentation also places PFEA111-65 within its web tension measurement product family.

Module 3: Supply Chain & Technical Deep Dive

When a web-handling line loses its tension electronics, the problem is rarely just one failed circuit board. Unstable tension can affect winding, coating, slitting, printing, and material handling. The PFEA111-65 is designed for web tension measurement, accepting signals from two load cells and providing A+B processing for control or monitoring. The IP65 version is housed for industrial installation rather than exposed circuit-board mounting.

The investment case is straightforward: replacing the correct tension electronics can avoid mechanical retuning and extended line downtime. Published specifications list 24 V DC supply, approximately 8 W power consumption, two load-cell inputs, and adjustable filtering. The display can show A, B, A+B, and A-B values, which gives maintenance staff useful diagnostic information during commissioning.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

ABB’s product information identifies 3BSE028140R65 as the old ordering number replaced by 3BSE050090R65. The ABB web tension documentation separately lists -20, -65, PFEA112-20, PFEA112-65, and PFEA113 variants, so the suffix should not be ignored during procurement.

⚠️ Field Traps

1. Load-cell wiring mismatch

There are two load-cell inputs. Before removing the old unit, photograph every terminal and record the A and B signal wiring. Do not assume that similarly labeled tension equipment uses the same load-cell wiring arrangement.

2. Output configuration

The unit processes A and B signals and can provide A+B output with adjustable filtering. Confirm whether the existing machine uses voltage or current output before commissioning. Published records identify both voltage and current output functions, so the machine-side signal configuration matters.

3. IP65 enclosure

The “-65” designation matters. Do not replace an IP65 installation with an IP20 unit merely because the electrical model family appears similar. ABB listnd as separate variants.

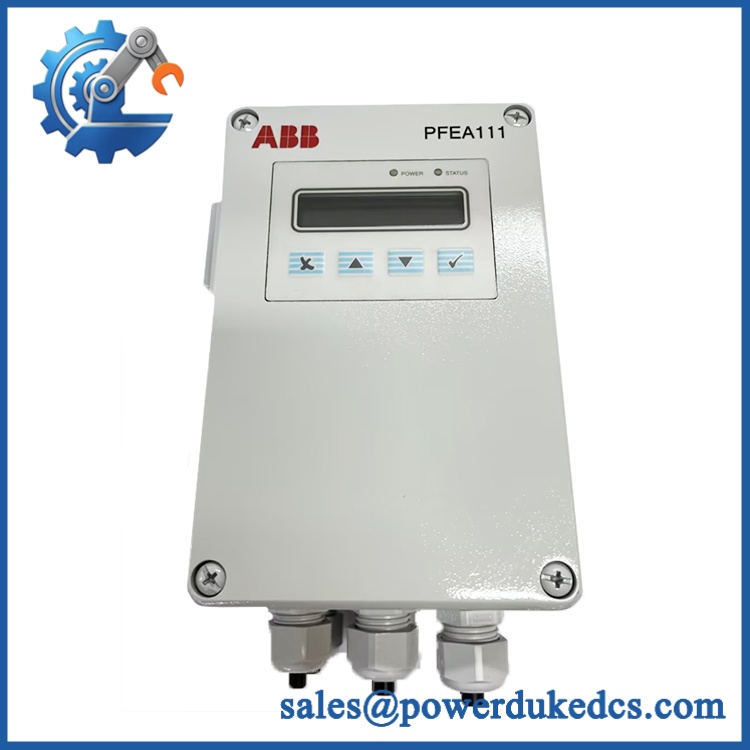

ABB PFEA111-65 3BSE050090R65

Module 5: Quality Assurance & Testing SOP

A tension controller should not leave inventory based on visual inspection alone. Our pre-shipment process should establish both identity and operating condition.

1. OEM identity inspection

• Verify ABB product ID: 3BSE050090R65
• Verify type designation:
• Check serial number and date information where visible
• Compare the nameplate against the order specification
• Perform OEM anti-counterfeit visual inspection
• Inspect enclosure, connectors, cable glands, and mounting points
• Check for corrosion, cracks, impact marks, or evidence of previous repair

2. Electrical inspection

• Verify the 24 V DC supply requirement
• Check input-side wiring condition
• Inspect load-cell terminals
• Check relevant resistance and continuity points according to the approved test procedure
• Verify protective grounding where applicable

3. Power-on self-test

Place the unit on an approved test setup.

• Apply controlled 24 V DC power
• Check startup behavior
• Inspect display operation
• Check diagnostic/status indications
• Confirm stable operation without abnormal heating

4. Load-cell signal test

Use calibrated test signals to simulate the two load-cell inputs.

• Verify channel A
• Verify channel B
• Verify A+B calculation
• Check A-B display behavior
• Adjust test filtering as required
• Compare displayed values with reference measurements

ABB documentation identifies the display functions as A, B, A+B, and A-B, with adjustable filtering.

5. Output verification

• Test voltage output where configured
• Test current output where configured
• Confirm output response against the applied input
• Record measured values
• Check repeatability

6. Final QC

• Generate a serial-number-linked Test Report
• Record test date and technician
• Photograph the tested unit
• Seal in suitable protective packaging
• Use ESD protection for exposed connectors/electronics
• Apply QC Passed identification

Testing records can be supplied to the buyer where requested.

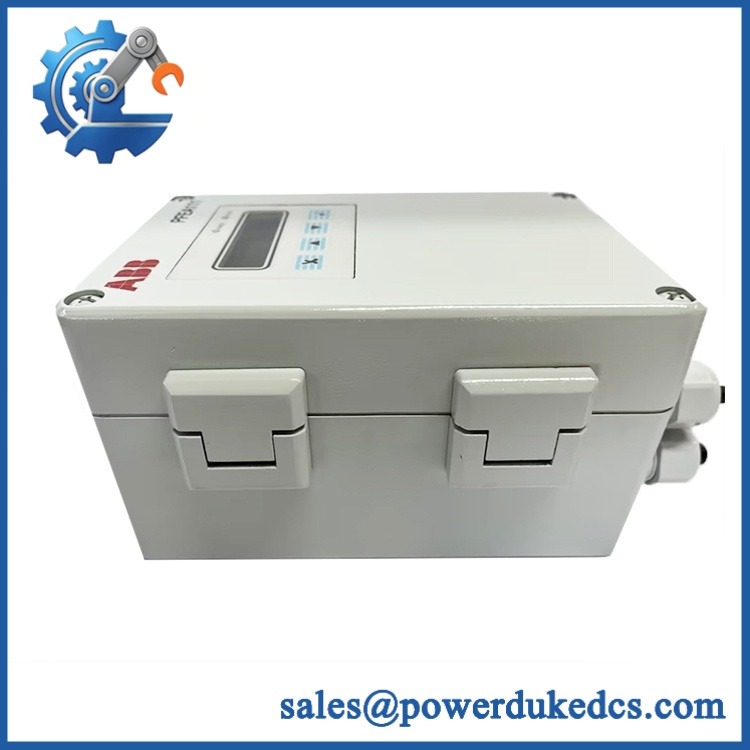

ABB PFEA111-65 3BSE050090R65

Module 6: Procurement-Driven FAQ

BB 3BSE050090R65 genuinely in stock, and what is the overnight shipping cutoff?

Physical stock should be confirmed before order release. A current ABB product record confirms the exact product identity, while supplier listings may show different lead times or inventory positions.

For urgent replacement, confirm the unit’s physical location, inspection status, dispatch cutoff, and carrier service before payment.

2. How do you verify the condition of obsolete ous units?

The unit should pass identity verification, enclosure inspection, electrical checks, power-on testing, load-cell signal simulation, and output verification.

Request the serial-number-linked Test Report if the application is production-critical. New Original, New Surplus, Used, and Refurbished should be stated separately on the quotation.

3. What warranty and return protection should I require?

Set the warranty period and return procedure in writing before purchase. A practical warranty record should identify the supplied serial number and describe the process for reporting a functional defect.

Installation damage, incorrect supply voltage, wiring errors, and unauthorized modification should be clearly separated from genuine product defects.

4. Are there firmware compatibility issues?

This unit is a dedicated web tension electronics device, not a conventional PLC CPU. The main replacement checks are the exact part number, model variant, load-cell wiring, output configuration, supply voltage, and application setup.

For an existing installation, record the current configuration before removal. Do not change filtering or output settings during a basic hardware replacement unless the machine commissioning procedure requires it.

5. Can I use -20 iof ?

Do not treat them as automatic substitutes. ABB listnd as distinct variants, with the “-65” version intended for an IP65 installation.

If the existing cabinet or machine requires protection, retain the specification unless the engineering team has formally approved a different enclosure arrangement.
