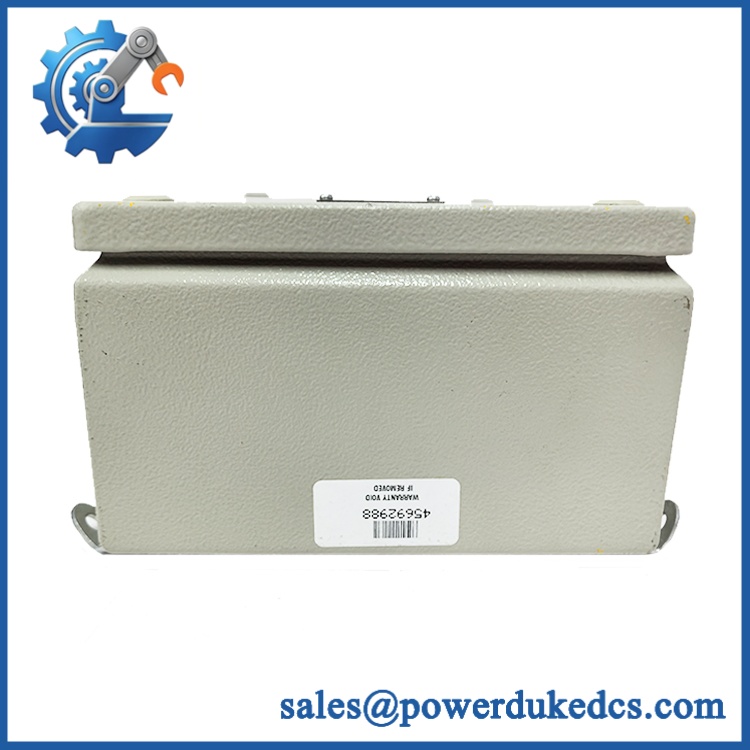

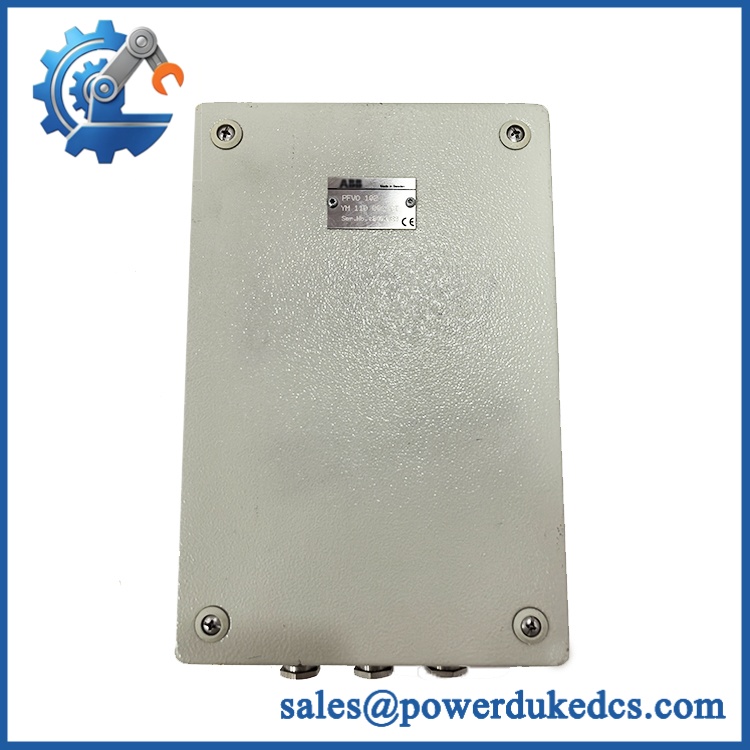

ABB PFVO-102 | Millmate Controller 400 Compatibility

Description

• Manufacturer: ABB
• Model: PFVO-102 / PFVO 102
• Product Type: Matching unit associated with ABB Millmate roll-force equipment
• System Family: ABB Millmate Roll Force Systems
• Application: Load-cell signal matching/interface equipment
• Physical Dimensions: Exact W × H × D dimensions are not reliably established from the ABB documentation located for this exact designation. Confirm the mechanical drawing before cabinet planning.
• Estimated Shipping Weight: Not reliably established for PFVO-102 itself. Do not use the approximately 7 kg value reported for some PFVO102/PFVO142 listings because those listings appear to combine different product descriptions and may represent packaged equipment.
• What’s in the Box: PFVO-102 matching unit; mounting hardware and documentation depend on the supplied configuration and condition.
• Related Models: PFVO 142/143 are documented as matching units for ABB Millmate roll-force applications

Identification caution: Public reseller data for “PFVO 102” is inconsistent. Some listings incorrectly describe it as a 16-channel digital I/O module, while ABB’s Millmate documentation clearly uses PFVO 102/142 in the context of matching units. For asset registration, the physical nameplate and ABB documentation should take priority.

Product Introduction

Architecture hook: In the ABB Millmate architecture, PFVO 102 is associated with the signal-matching side of the roll-force measurement system rather than functioning as a conventional AC 800M I/O card. ABB documentation identifies PFVO 142/143 as matching units, and the Millmate Controller 400 manual specifically includes a procedure for checking PFVO 102/142 matching units

That makes correct part identification particularly important. A matching unit interfaces with measurement hardware where signal integrity directly affects force calculations and process control (a small wiring or configuration error can therefore propagate into the control system). The available Millmate documentation also specifies a 0–70°C operating range and −40–70°C storage range for the associated controller equipment.

Core Technical Specifications

ABB PFVO-102

The PFVO 102/142 matching-unit identification is supported by the Millmate Controller 400 documentation. Avoid importing specifications from unrelated online PFVO listings, particularly the claims describing PFVO 102 as a generic 16-channel digital I/O module. Those claims conflict with the ABB Millmate documentation.

? Global Compliance & Industry Certifications

For an ABB Millmate measurement/control assembly, certification should be evaluated at the complete equipment/system level unless ABB provides a separate certificate for the PFVO unit.

Potential documentation may include:

• CE Mark — potentially applicable to the complete ABB equipment configuration supplied to the European market.
• UL / cUL — may apply to particular North American configurations.
• IEC conformity documentation — relevant to the applicable measurement/control equipment and installation.
• ATEX / IECEx — do not assume hazardous-area approval from the PFVO designation alone.
• Marine approvals such as DNV — require confirmation for the specific equipment configuration and application.

For measurement equipment, certification and installation requirements matter because incorrect grounding, shielding, or isolation can introduce measurement errors as well as electrical hazards.

Verify specific lot certifications with OEM.

For compliance records, retain the nameplate photograph, hardware revision, serial/date code, supplier Certificate of Conformance, COO evidence, and any ABB declaration applicable to the installed Millmate system.

? Long-Term Storage & Asset Preservation Guide

1. Protect the matching unit against ESD and contamination. Keep the electronics in its original ESD shielding packaging. Do not place exposed connectors or circuit boards directly on metal shelving.
2. Control humidity. Maintain a clean, dry storage environment, preferably below approximately 60% RH, and avoid condensation caused by moving cold equipment into warm humid areas. Connector contacts and low-level measurement circuitry are particularly sensitive to contamination.
3. Preserve the complete identity record. Photograph the label, ABB markings, serial/date code, revision, and any attached connector identification before shelving. Store that information with the asset record (legacy Millmate equipment can be difficult to identify from generic catalog descriptions alone).

Do not perform unnecessary powered testing merely because the unit has been stored for an extended period. Follow the applicable ABB Millmate service procedure if functional verification is required.

ABB PFVO-102

Physical Installation Prerequisites

• Install only in the ABB Millmate system configuration for which it is specified.
• Do not substitute a generic DIN-rail mounting arrangement without an ABB-approved mechanical configuration.
• Verify the exact mounting location and cable-routing requirements from the applicable Millmate mechanical documentation.
• Keep signal wiring separated from high-current motor, drive, and AC power conductors.
• Follow ABB requirements for shield termination, protective grounding, and signal reference connections.
• Verify the associated load-cell and matching-unit configuration before commissioning.
• Inspect all connectors for bent contacts, oxidation, contamination, or mechanical damage.
• Maintain adequate clearance for cable bending and service access rather than applying an arbitrary cabinet-clearance number.

The Millmate system uses the matching unit as part of the measurement chain, so signal wiring is an installation-critical item, not merely a cabinet housekeeping concern.

Buyer’s FAQ

Q: What HS tariff code should be used for ?
A: There is no sufficiently reliable basis to assign a universal HS code from the model designation alone. Because is associated with a specialized measurement/matching function, the customs broker should classify it using the actual technical description, construction, and importing-country tariff schedule. Do not copy the tariff code of an unrelated ABB I/O module.

Q: Does the Country of Origin have to match the seller’s country?
A: No. Country of Origin (COO) refers to the applicable manufacturing origin, not the seller’s location or shipping point. Obtain the COO from the physical nameplate, ABB documentation, or traceable supplier records. Keep the evidence with the commercial invoice and packing list.

Q: Should shipping insurance be purchased?
A: Yes, particularly for international shipments. Measurement-interface hardware can suffer connector, PCB, or enclosure damage that is not immediately visible after delivery. Photograph the unit and packaging before dispatch, then retain the receiving inspection record.

Q: Does include the latest firmware pre-loaded?
A: Do not assume a firmware package is applicable. is documented in the Millmate architecture as a matching-unit type rather than a conventional programmable controller. If a supplier claims that a specific firmware revision is included, request ABB documentation identifying the exact hardware/software relationship before accepting the claim.
