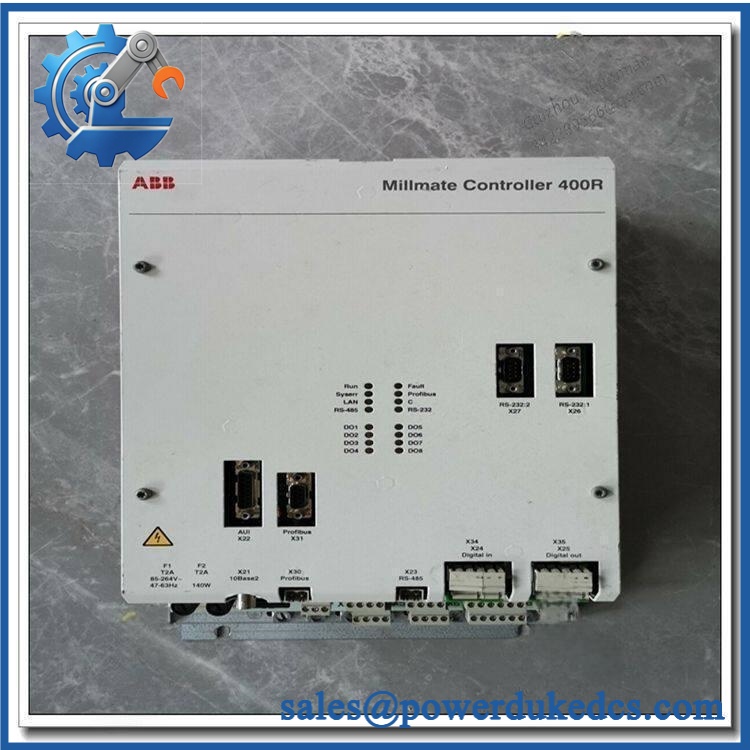

ABB PFXA401SF 3BSE024388R4 | Profibus Measurement Module

Description

• Model: PFXA401SF
• Brand: ABB
• Part Number: 3BSE024388R4
• Series: Millmate 400
• Part Type: Control unit for load-cell / force measurement applications
• Core Function: Processes measurement signals and provides control-system interfaces for rolling-force and related mill applications
• Key Specs: Up to 4 analog inputs, Profibus communication, 85–264 VAC supply, approximately 5 kg net weight

Product Introduction

For a rolling-mill maintenance team, losing the measurement controller can take an otherwise healthy force-measurement loop out of service.

The ABB PFXA401SF 3BSE024388R4 is a Millmate 400 control unit used in ABB measurement and control applications. ABB’s Millmate 400 platform provides configurable analog and digital I/O, sensor excitation, self-diagnostic functions, simulation capability, RS-232 interfaces, and Ethernet connectivity to other Millmate units and control systems. Exact PFXA401SF references identify the unit as a load-cell control unit with four analog inputs, Profibus communication, and angle compensation for ABB QGPR 102/104 load cells up to 2 MN.

For legacy rolling-force systems, this is the type of controller worth carrying as New Surplus or refurbished buffer stock because an exact hardware replacement can reduce commissioning work during a shutdown.

Core Technical Specifications

ABB PFXA401SF 3BSE024388R4

ABB’s published Millmate 400 data supports the platform-level electrical, I/O, environmental, and mechanical specifications above. Exact PFXA401SF listings identify the four-channel analog-input configuration, Profibus interface, QGPR 102/104 compatibility, and 2 MN reference capacity.

Please refer to the OEM documentation for the exact PFXA401SF firmware, terminal assignments, Profibus configuration, sensor excitation settings, and application-specific limits.

Application Scenarios & Pain Points

Rolling mills are the primary fit. The PFXA401 family is part of ABB’s Millmate measurement platform, where force and load-cell signals have to be conditioned and integrated into the mill control architecture.

When a controller fails during a production campaign, having the same hardware revision available can avoid a broader measurement-loop redesign. This matters even more on older mills where the original configuration and cabinet wiring have already been validated.

At 50°C+ ambient cabinet conditions, inspect ventilation, enclosure loading, and power quality before installing a replacement. The controller itself is specified for operation up to 70°C, but the full cabinet environment still has to remain within the limits of every connected component.

For planned maintenance, keeping a tested spare with its configuration records can materially reduce restart risk compared with sourcing an untested used unit after a failure.

Common Error Codes & Diagnostic Symptoms

Publicly indexed sources reviewed for do not provide a verified OEM numeric fault-code table. The following are therefore practical diagnostic symptoms rather than invented ABB error numbers.

No valid load-cell measurement / unstable force reading → Diagnosis: Check sensor excitation, analog-input wiring, load-cell condition, shielding, and controller input health before condemning the unit → Action: Replace the controller only after the external signal path has been verified.

Profibus communication loss → Diagnosis: Check bus addressing, termination, cable integrity, connector seating, and controller-side communication status → Action: Replace the if the communication fault remains with a known-good network and correct configuration.

Controller fails to initialize or loses I/O unexpectedly → Diagnosis: Verify incoming AC supply, internal protection, connectors, and cabinet power quality → Action: Replace the unit after the external power and wiring path are confirmed.

Cross-Reference & Lifecycle Migration

The exact aftermarket reference for this unit is . Multiple industrial listings identify these two numbers as the same ABB control-unit assembly.

ABB’s official Millmate 400 documentation covers the broader PFXA401 control-unit family, including analog/digital I/O, sensor excitation, diagnostics, simulation, Ethernet, RS-232, and optional high-speed fieldbus connectivity.

No reliable public source reviewed here establishes a specific predecessor part number, universal drop-in revision range, or mandatory firmware-flashing procedure for . Do not assume an earlier PFXA401 variant is automatically interchangeable. Verify the complete part number, installed firmware, fieldbus option, load-cell application, and cabinet wiring.

Lifecycle status: Treat this as a legacy maintenance spare rather than a part for new system design. For installed Millmate 400 equipment, maintaining at least one tested spare is a reasonable buffer-stock approach when production depends on the measurement loop.

Field Engineer’s Tech Notes

1. Do not replace the controller before checking the load-cell signal chain. The sits in a measurement system, so excitation failure, damaged sensor cabling, grounding problems, or a bad load cell can present symptoms that look like controller failure.
2. Capture the existing configuration first. Record Profibus addressing, analog scaling, terminal wiring, and any application parameters before removing the old unit. The physical replacement is only half of the job; the measurement loop still has to reproduce the original scaling and control behavior.

Strict QA & Testing SOP

1. Inbound identification
Confirm and 3BSE024388R4 on the nameplate, inspect revision markings, and record serial information for traceability.

2. Physical inspection
Check the enclosure, terminal blocks, connectors, mounting points, PCB condition where accessible, battery/fuse provisions, and signs of overheating or contamination.

3. Power verification
Verify controlled operation from the applicable AC supply range. Confirm startup behavior and diagnostic indications before connecting field loads.

4. Analog signal testing
Use calibrated signal simulation to verify representative analog-input channels. Where the test setup permits, check sensor-excitation behavior and measurement scaling.

5. Digital and communication testing
Exercise representative digital inputs and outputs. For fitted Profibus hardware, verify node communication and data exchange with a compatible test system.

6. Application-level verification
Where a Millmate-compatible test setup is available, check measurement processing, controller diagnostics, and relevant load-cell interface behavior.

7. Final QC and packaging
Record test results, photograph the completed unit, apply ESD protection, and package the controller against shock and moisture during international shipment.

Test reports, inspection photographs, and available test videos can be provided upon request.

Buyer’s FAQ

Can I use as a direct replacement for another PFXA401?

Not automatically. The PFXA401 family contains configuration differences, so the complete part number, I/O arrangement, communication option, firmware, and application configuration should be checked before approval.

Is the unit hot-swappable?

Do not treat it as a hot-swap module. The Millmate 400 control unit is a powered electronic assembly, and the correct removal procedure depends on the installed cabinet and measurement system. Isolate power and follow the site’s electrical safety procedure before replacement.

How do I know the unit is genuinely an ABB ?

For procurement, ask for photographs of the ABB nameplate, complete identification, and available serial/revision information. New Original, New Surplus, and refurbished status should be stated explicitly on the quotation.

What warranty can be supplied?

Warranty depends on the unit condition and commercial terms. Confirm the warranty period, test coverage, return conditions, and lead time in the purchase quotation before placing the order.
