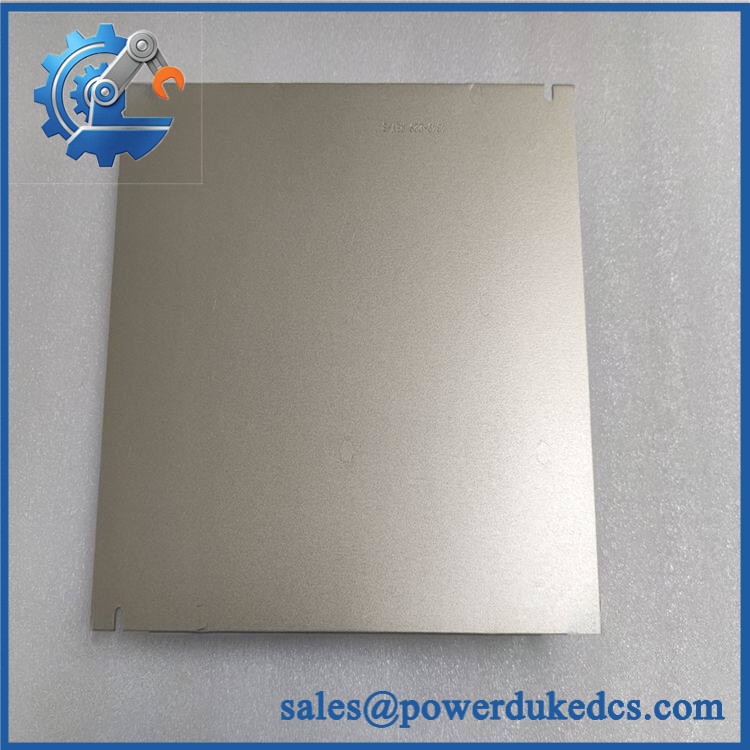

ABB PHARPS32000000 F8G2B3B6 | Harmony MPS III Replacement

Description

• Full Model: PHARPS32000000 F8G2B3B6
• Brand: ABB
• Series: MPS III / Bailey Harmony and INFI 90
• Part Type: Multi-output Power Supply Module
• Core Function: Supplies the regulated DC rails required by compatible ABB control-system chassis
• Output Ratings: 5 VDC at 60 A; +15 VDC at 3 A; -15 VDC at 3 A; 24 VDC at 17 A
• Lifecycle: ABB documentation identifies PHARPS32000000 within the MPS III power-supply family; an ABB user-group presentation previously classified the MPS III active power-system components as Limited Life Cycle, so installed-base status should be checked before relying on new procurement alone.

Product Introduction

A failed MPS III power module can take an entire legacy DCS chassis offline even when every controller and I/O board is still healthy.

The ABB PHARPS32000000 is an MPS III power supply for ABB control-system equipment. ABB’s product data identifies the unit as a multi-rail supply delivering 5 VDC at 60 A, +15 VDC at 3 A, -15 VDC at 3 A, and 24 VDC at 17 A. The designation F8G2B3B6 is associated with this PHARPS32000000 spare in aftermarket inventory records, but the publicly available ABB product record does not establish F8G2B3B6 as a separate electrical variant. For procurement, match the complete marking on the installed unit rather than assuming that every PHARPS32000000 has identical revision or configuration details.

Core Technical Specifications

ABB PHARPS32000000 F8G2B3B6

The output ratings and product dimensions above are taken from ABB’s published product data. One secondary database reports a nominal product weight of zero, which is clearly unsuitable as a shipping-weight reference; actual packed weight should be established from the physical unit.

Application Scenarios & Pain Points

During a DCS cabinet outage, loss of the common MPS III supply can produce multiple downstream symptoms at once: controller resets, I/O communication loss, and abnormal rack indications. Replacing individual control boards first can waste valuable shutdown time when the common power source is the actual fault.

For legacy Bailey INFI 90 and Harmony installations, the multiple DC rails are significant. The 5 V rail alone is rated to 60 A, while the positive and negative 15 V rails support 3 A each, and the 24 V rail supports 17 A. Those ratings should be checked against the actual rack load and redundancy arrangement before a replacement is commissioned.

At elevated cabinet temperatures, thermal loading becomes a practical concern. Do not judge a power module only by whether it starts; verify output stability under an appropriate load and inspect the chassis ventilation path.

For legacy migration projects, an available New Surplus spare can provide useful buffer stock while the installed control platform remains operational. ABB historical material has identified MPS III power-system components as Limited Life Cycle, making lifecycle planning relevant for sites still dependent on this architecture.

Common Error Symptoms & Diagnostic Symptoms

Symptom: Multiple rack modules reset simultaneously
→ Diagnosis: A common DC supply disturbance or loss of one of the MPS III output rails is a strong suspect. Measure the affected rails before replacing individual controller or I/O modules.
→ Action: Verify output stability under load and replace the power module if the supply fails the applicable test limits.

Symptom: 5 V rail drops when the chassis is fully loaded
→ Diagnosis: The power supply may be overloaded, thermally stressed, or developing an internal regulation fault.
→ Action: Check total chassis load and all output rails, then replace the module if its regulated outputs cannot remain within the OEM limits.

Symptom: 24 V field/control circuits are unstable while logic power remains present
→ Diagnosis: A fault isolated to the 24 V output stage or downstream loading may be present.
→ Action: Separate the supply from downstream loads using the approved maintenance procedure and verify the 24 V rail independently.

Cross-Reference & Lifecycle Migration

belongs to ABB’s MPS III power-supply family. ABB lists PHARPS03000000, , PHARPS32010000, PHARPS32200000, and PHARPS40000000 as distinct MPS III power-supply products with different output configurations. This is important: these part numbers should not be treated as interchangeable merely because they share the MPS III family name.

ABB’s published product record gives the specific output combination of 5 V / 60 A, +15 V / 3 A, -15 V / 3 A, and 24 V / 17 A. PHARPS32010000 and PHARPS32200000 have different output configurations, so substitution requires a chassis-load and system compatibility check.

Firmware: No firmware requirement was identified for the power supply itself. This is a power-system component rather than a programmable CPU. Any required chassis configuration or redundancy checks should follow the applicable MPS III installation procedure.

Lifecycle: ABB historical material identifies MPS III power-system components as having moved to Limited Life Cycle. For an installed INFI 90/Harmony system, maintaining at least one verified spare can make sense where an extended legacy-system migration is planned.

Field Engineer’s Tech Notes

1. Don’t test only the unloaded output.
A supply can produce nominal voltage with little load and still collapse when the chassis is energized. Because the provides several independent rails, test each applicable output under a controlled load rather than accepting a single no-load voltage measurement.

2. Check the chassis and cooling path before condemning the replacement.
If a known-good power supply develops the same symptom as the failed unit, suspect downstream loading, connector resistance, chassis distribution, or inadequate cooling. Replacing power modules repeatedly without finding the underlying load fault is expensive and rarely fixes the problem.

Strict QA & Testing SOP

Step 1 — Inbound identification
Verify and the associated F8G2B3B6 marking, serial/traceability information where available, housing condition, connectors, mounting features, and nameplate information.

Step 2 — Visual inspection
Check for damaged terminals, contaminated connectors, cracked insulation, corrosion, overheated areas, fan or ventilation obstruction, and evidence of previous electrical stress.

Step 3 — Electrical pre-check
Using an appropriate test fixture, verify insulation and continuity where applicable. Do not apply arbitrary hipot levels to the complete electronic power module; follow the relevant OEM procedure and component ratings.

Step 4 — Rail-by-rail functional test
Energize the unit using an approved MPS III test arrangement and verify the four documented DC output rails: 5 V, +15 V, -15 V, and 24 V. Check voltage stability, ripple where the test procedure specifies it, startup behavior, and response under an appropriate controlled load.

Step 5 — Load verification
Exercise the supply progressively rather than applying full load immediately. Monitor temperature rise and output stability, especially on the 5 V high-current rail.

Step 6 — Final QC and packaging
Record measured values, photograph the tested nameplate, protect connectors against mechanical damage, and use ESD-conscious packaging suitable for electronic power equipment.

Test reports, inspection photographs, and available test videos can be provided upon request.

Buyer’s FAQ

Is F8G2B3B6 the same as an ABB 5 V / 60 A MPS III supply?

The ABB product record confirms that is an MPS III supply with 5 V at 60 A, +15 V at 3 A, -15 V at 3 A, and 24 V at 17 A. is an associated marking found in aftermarket listings; the complete physical nameplate should be checked before ordering.

Can I hot-swap this power module?

Do not assume hot-swapping is permitted. The safe procedure depends on the specific MPS III chassis and installed power-entry/redundancy arrangement. Follow the applicable ABB maintenance procedure and isolate power when the chassis design does not explicitly support live replacement.

How do I know the supplied unit is New Original or New Surplus?

Request clear nameplate photographs, serial/traceability information where available, physical-condition confirmation, and any factory or supplier documentation. New Surplus (NSFP) should be distinguished from used or refurbished stock on the quotation.

What warranty can be provided?

Warranty depends on the actual stock condition and supplier terms. For shutdown-critical procurement, request the stated warranty period together with the inspection/test report, exact part marking, quantity available, and shipping lead time before issuing the PO.
