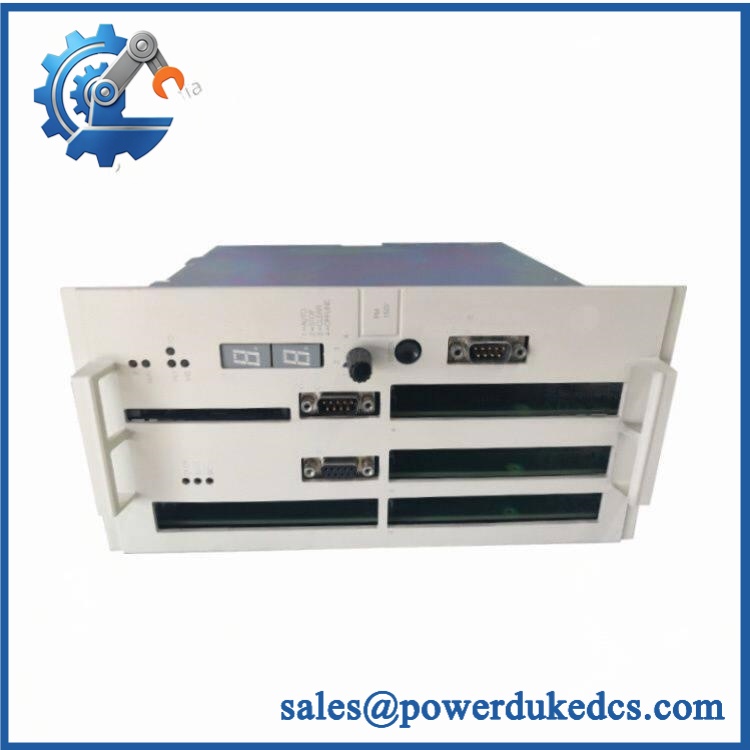

ABB PM150 3BSE003641R1 | PM510 Processor Module for Advant OCS

• Brand: ABB
• Full Model Number: PM150
• ABB Part Number: 3BSE003641R1
• Product Designation: PM510 Processor Module
• Product Family: ABB Advant OCS
• Lifecycle Status: Legacy / obsolete industrial automation spare
• Core Function in System: Processor unit for ABB Advant OCS control systems
• Top 3 Hardcore Specs: PM510 processor architecture; Advant OCS controller hardware; Redundancy-oriented controller application
• Form Factor: Rack-mounted processor board/module
• Typical Use: Legacy ABB industrial process-control systems
• Reported Shipping Dimensions: Approximately 12.7 × 27.9 × 25.4 cm
• Reported Weight: Approximately 2.6 kg
• Condition & Lead Time: Replacement stock subject to exact hardware verification; emergency dispatch based on confirmed inventory

Available industrial records identify ABB PM150 / 3BSE003641R1 as a PM510 Processor Module associated with the Advant OCS platform. The exact part number is also listed in legacy ABB repair inventories under the description PM150 PROC MOD.

Module 3: Technical Intro & Downtime Impact

A processor failure in an Advant OCS installation can stop application execution, I/O processing, sequence logic, and operator communication at the controller level. ABB PM150, 3BSE003641R1 is identified as a PM510 processor module, making exact part-number verification critical when restoring a legacy control system. A visually similar ABB processor from another generation should not be treated as an automatic substitute.

For MTTR reduction, the strongest confirmed identifiers are PM150, 3BSE003641R1, and PM510 Processor Module. Publicly available records do not provide a sufficiently authoritative specification set for processor clock speed, RAM capacity, operating temperature, supply voltage, or I/O limits for this exact ordering code. —Those values should therefore be taken from the installed Advant OCS hardware documentation and the original module label rather than inferred from newer ABB controller families.

ABB PM150 3BSE003641R1

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Preserve the legacy controller state

• Place the affected Advant OCS control system in the approved maintenance state.
• Determine whether PM150 is installed as part of a redundant controller arrangement.
• Isolate the controller power according to the system maintenance procedure.
• Verify absence of hazardous voltage before accessing the rack.
• Record / 3BSE003641R1 / PM510 exactly as marked.
• Record hardware revision and serial number.
• Back up the controller application and configuration where the engineering system permits.
• Photograph the module position, cables, termination hardware, and neighboring processor or communication cards.
• Record controller addresses and communication settings.
• Use ESD protection before handling the processor.

2. Removal — Rack-mounted processor extraction

• Confirm the controller rack is electrically safe.
• Disconnect external communication and service connections after labeling them.
• Release the module’s retaining or extraction mechanism.
• Withdraw the evenly along the card guides.
• Avoid flexing the PCB or stressing the rear connector.
• Place the removed processor in ESD-safe packaging.
• Inspect the rack connector and backplane for corrosion, contamination, bent contacts, or heat damage.

3. Installation & Configuration — Restore the original controller identity

• Verify ABB / 3BSE003641R1 before installation.
• Confirm the processor revision matches the existing system requirements.
• Install the processor into the original rack position.
• Seat the card fully into the backplane connector.
• Secure the retaining mechanism.
• Reconnect communication and service interfaces according to the recorded wiring.
• Restore controller address, application configuration, and system parameters.
• Verify redundant-controller settings where applicable.
• Confirm any memory or configuration-retention device is installed correctly.
• Do not assume factory-default parameters are suitable for the existing Advant OCS installation.

4. Power-On Self-Test (POST) — Confirm processor and system recovery

• Restore controller power according to the Advant OCS startup procedure.
• Observe available power, RUN, status, and fault indications.
• Confirm the processor completes initialization.
• Check controller communication with the engineering or supervisory system.
• Verify application/configuration recognition.
• Confirm connected I/O and communication interfaces return to their expected state.
• Check controller diagnostics for persistent hardware faults.
• Verify critical sequence logic and interlocks.
• Perform a controlled restart or functional test where required.
• Return the process to service only after controller and I/O verification passes.

Because public documentation for this legacy part does not provide a reliable universal LED sequence or mechanical extraction specification, the installed Advant OCS service documentation should control the detailed POST procedure.

Module 5: Quality Assurance & Testing SOP

QA should establish exact identity, board condition, rack compatibility, and controller operation before shipment. A successful power-up alone is not enough for a legacy processor spare.

1. OEM identity verification

• Verify ABB
• Verify
• Verify 3BSE003641R1
• Verify Processor Module
• Compare module labels, PCB markings, revision codes, and connector arrangement
• Perform OEM anti-counterfeit visual inspection
• Photograph all identification markings

2. Physical inspection

• Inspect the processor board for corrosion, contamination, cracked components, and physical impact
• Check card-edge or backplane contacts
• Inspect extraction handles and retaining hardware
• Check connectors for bent or recessed contacts
• Inspect for thermal discoloration
• Check for evidence of unauthorized PCB repair
• Verify the board is mechanically compatible with the intended rack

3. Electrical screening

• Verify applicable supply paths using the board-specific test procedure
• Check ground/reference continuity where applicable
• Inspect connector integrity
• Check for abnormal resistance or short-circuit conditions on accessible circuits
• Verify power-up behavior in a controlled test rack
• Do not apply arbitrary hipot voltages to populated processor electronics

4. Functional testing

• Install the unit in a compatible Advant OCS test environment
• Perform power-on self-test
• Check processor status indications
• Verify controller recognition
• Verify engineering-system communication
• Load a controlled test configuration where supported
• Exercise representative logic execution
• Verify applicable I/O communication
• Test controller restart and application recovery
• Verify redundant-controller behavior where the test configuration supports it
• Perform I/O full-range simulation on applicable connected channels
• Record hardware revision, configuration revision, test conditions, and results

5. Final QC release

• Independent QC sign-off
• Configuration/test record retained
• ESD-safe packaging
• Connector protection
• Final cross-check of / 3BSE003641R1
• Retain inspection photographs
• Retain functional-test documentation
• Release only after controller recognition and system communication pass

One current surplus-parts record identifies 3BSE003641R1 as a Processor Module and reports a unit weight of approximately 2.6 kg. These logistics figures are useful for inventory planning, but the installed module’s nameplate remains the controlling reference for technical identification.

Module 6: Maintenance & Reliability FAQ

Q1. Is ABB 3BSE003641R1 a direct drop-in replacement, or does it require a firmware flash?
Do not assume a blind replacement. Match , 3BSE003641R1, , hardware revision, rack position, and Advant OCS software compatibility. Firmware requirements depend on the specific installed controller environment and should be checked before loading the replacement configuration.

Q2. Is it safe to hot-swap the while the system is running?
Do not assume live replacement is permitted. is a processor module in a legacy control system, so removing it can interrupt application execution and controller communications. Unless the exact Advant OCS installation documentation explicitly authorizes energized removal, isolate the controller before replacement.

Q3. Will replacing the cause my current program or configuration to be lost?
The application is associated with the controller’s configuration and system storage rather than being treated as a generic replacement-board setting. Back up the complete application, controller parameters, addresses, communication configuration, and redundancy settings before removal. After installation, restore and verify the documented configuration.

Q4. What is used for?
Available industrial records identify 3BSE003641R1 as a Processor Module for ABB Advant OCS control equipment. It is therefore a controller-level processor spare rather than a standard field I/O card.

Q5. What should I verify before ordering a replacement?
Verify , 3BSE003641R1, , hardware revision, rack position, connector arrangement, controller configuration, software compatibility, and redundancy architecture. Avoid substituting specifications from newer ABB AC 800M processors; this part belongs to a legacy Advant OCS generation and requires system-specific verification.
