ABB PM591-ETH 1SAP150100R0270 | AC500 PLC Processor

Description

MBrand: ABB

• Full Model Number: PM591-ETH 1SAP150100R0270
• System/Series Family: ABB AC500 PLC
• One-Sentence Core Function: 4 MB AC500 processor module for PLC program execution, local I/O control, and Ethernet/serial communications
• Top 3 Hardcore Specs: 4 MB memory; 24 VDC supply; Ethernet + 2 x RS-232/485 + FBP interface
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection
• Extended Product Type: PM591-ETH-V14x
• Product Weight: 0.155 kg
• Product Dimensions: 62 × 67.5 × 76 mm
• Environmental Range: 0 to +60 °C operating; -40 to +70 °C storage

Module 3: Commercial-Technical Deep Dive

A failed AC500 processor does not necessarily justify replacing the rack, I/O modules, or field wiring. The ABB PM591-ETH 1SAP150100R0270 is the PM591-ETH-V14x processor module for the AC500 PLC family, with a 4 MB controller memory configuration. ABB documentation identifies a 24 VDC controller, one Ethernet interface, two RS-232/485 interfaces, an FBP interface, SD-card slot, and LCD display. Its compact package measures approximately 62 × 67.5 × 76 mm and has a net weight of 0.155 kg.

The communication mix is the practical advantage for legacy control cabinets. Ethernet provides TCP/IP connectivity, while the two serial interfaces support RS-232/485 applications; the controller also supports FBP-based integration and a CS31 bus interface. ABB’s product documentation identifies this exact product ID as 1SAP150100R0270, and an ABB lifecycle statement classifies the PM591-ETH R0270 as a Classic product. That matters during migration planning: preserve the existing AC500 project, firmware environment, memory-card content, and communication parameters before replacing the CPU. A controller that powers up correctly can still fail to run the plant application because the stored project or firmware environment does not match.

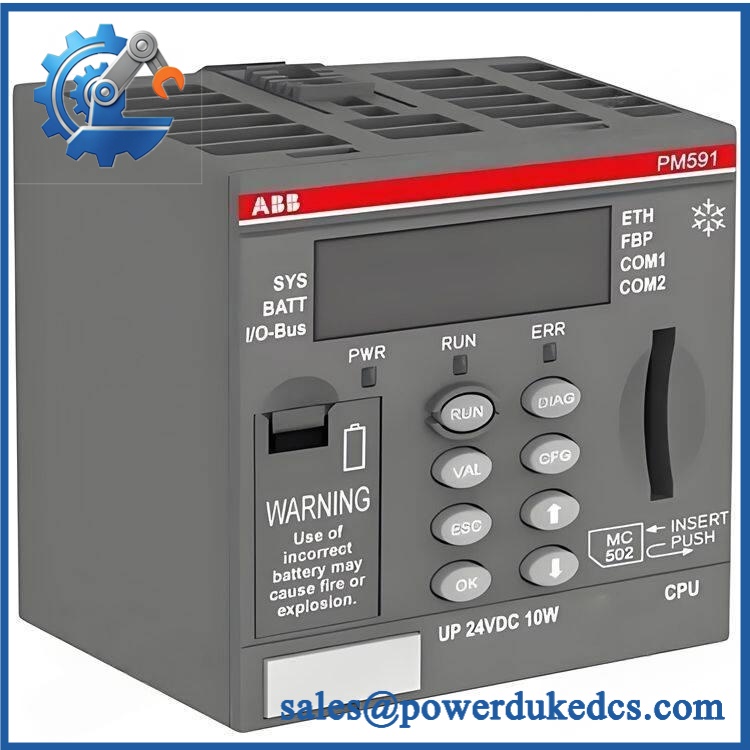

ABB PM591-ETH 1SAP150100R0270

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: ABB PM591-ETH-V14x, product ID 1SAP150100R0270.
• Logic rewrite: Normally not required for a like-for-like CPU replacement when the existing AC500 project and hardware configuration are retained.
• Firmware flash: Configuration dependent. Record the original firmware/software environment before downloading anything to the replacement.
• Drop-in status: Potentially direct for the same -V14x hardware configuration; verify the exact product ID before substitution.
• Memory: 4 MB controller memory configuration.
• Interfaces: Ethernet, 2 x RS-232/485, FBP, SD-card slot, LCD display.
• Variant warning: Do not substitute PM591-2ETH or merely because the model family is similar; these are different product configurations.

⚠️ Field Traps (Watch Out)

• Memory-card dependency: Before removing the original CPU, preserve the existing SD-card/project environment where used. Factory-default memory does not equal a commissioned controller.
• Serial-port assignment: The two RS-232/485 interfaces may be carrying separate functions such as programming, Modbus, or legacy equipment communication. Record port assignments before replacement.
• Ethernet configuration: IP settings, station parameters, and supervisory connections must be documented before the original CPU is removed.
• 24 VDC supply: Verify voltage and polarity before energizing the replacement. A controller can be damaged quickly by an incorrect DC supply connection.
• Firmware/project mismatch: Confirm the Automation Builder/ software environment before downloading the retained application.

Module 5: Quality Assurance SOP

Before shipment, the ABB 1SAP150100R0270 should pass a processor-specific inspection sequence:

1. OEM anti-counterfeit visual inspection — verify ABB markings, designation, product ID 1SAP150100R0270, V14x identification where present, display, connectors, and housing.
2. Part-number verification — photograph the complete nameplate and reconcile the exact R0270 suffix before release.
3. Mechanical inspection — inspect mounting features, Ethernet connector, RS-232/485 interfaces, FBP connector, SD-card slot, LCD, and enclosure for damage or contamination.
4. 24 VDC controlled power-up — energize through a current-limited laboratory supply and verify normal startup behavior.
5. Power-on self-test (POST) — confirm processor initialization, display operation, diagnostic indications, and absence of hardware faults.
6. Memory verification — confirm recognized controller memory and SD-card interface operation where applicable.
7. Ethernet handshake verification — establish a controlled TCP/IP connection and verify stable communication.
8. Serial communication verification — test representative RS-232/485 communication with a compatible device or simulator.
9. FBP/CS31 verification — where the test environment supports it, confirm expected fieldbus or local-I/O communication.
10. Application execution test — load a controlled project and verify PLC execution, I/O exchange, diagnostics, and communication behavior.
11. Final QC record — document exact product ID, firmware version, test project, interface results, photographs, and packaging condition.

For a PLC processor, POST alone is not enough. The useful acceptance points are application execution, memory integrity, Ethernet communication, serial-port operation, and I/O exchange.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 1SAP150100R0270 obsolete, and how do I verify authenticity?

ABB’s documentation identifies 1SAP150100R0270 as , with the designation and a 4 MB processor configuration. ABB’s lifecycle documentation classifies this part as Classic, making condition, firmware, and exact configuration important during sourcing. Verify the complete product ID on the physical label before purchasing.
