ABB PM592-ETH 1SAP150200R0271 | AC500 PLC Processor Module

Description

• Brand: ABB
• Full Model Number: PM592-ETH / 1SAP150200R0271
• System/Series Family: AC500 PLC
• One-Sentence Core Function: High-performance AC500 processor module providing PLC execution, user-memory storage, Ethernet networking, serial communications, and local display functions
• Top 3 Hardcore Specs: 4 MB program memory; 4 GB integrated flash disk; Ethernet + 2 × RS-232/485 + FBP
• Stock Status: New Surplus / Fully Tested Refurbished — exact processor module and hardware revision verified before shipment

Module 3: Commercial-Technical Deep Dive

A CPU failure on an AC500 machine can shut down an otherwise healthy I/O installation because the processor is the execution and communications center of the controller. The ABB PM592-ETH, product ID 1SAP150200R0271, is an AC500 processor module with 4 MB memory and a 4 GB flash disk, plus onboard Ethernet, two configurable RS-232/485 interfaces, FBP connectivity, and a local display. ABB’s current data sheet identifies the product as active, so this is not merely a legacy spare being maintained from old inventory.

The storage architecture is particularly useful where machine applications require logging or retained user data. ABB specifies 4 MB processor memory and 4 GB flash-disk storage, while the integrated Ethernet interface supports TCP/IP functions and the module provides web-server, SNTP, and IEC 60870-5-104 protocol capability. The two serial ports support programming and Modbus/CS31 functions, giving the PM592-ETH several communication paths without an additional communication processor. ABB lists a compact module size of approximately 67.5 mm wide × 135 mm high, with the current detailed product listing giving a net weight of about 0.153 kg.

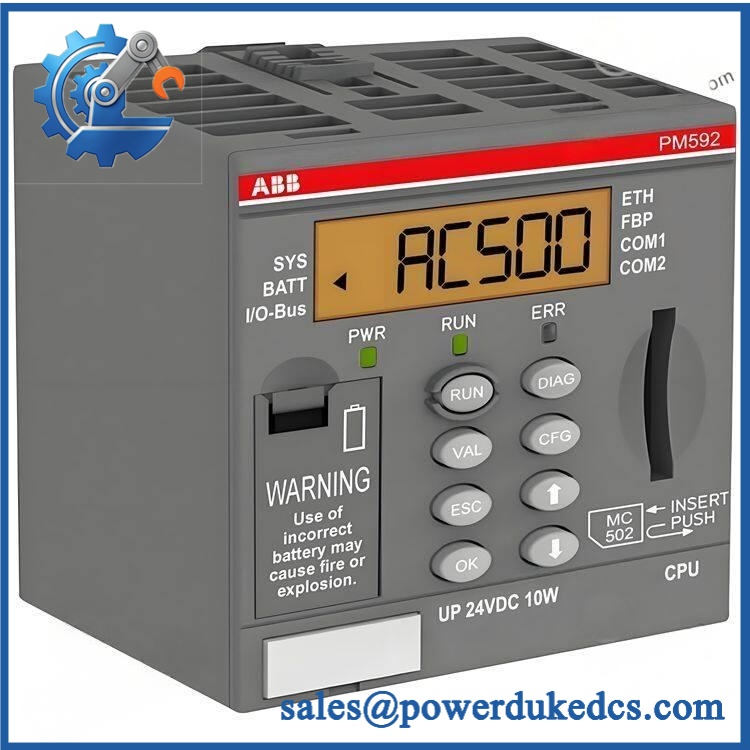

ABB PM592-ETH 1SAP150200R0271

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific processor replacement for ABB AC500 PLC systems.
• Official identification: PM592-ETH, Product ID 1SAP150200R0271. ABB describes it as a processor module with 4 MB memory, 4 GB flash disk, Ethernet, 2 × RS-232/485, FBP, and display.
• Firmware requirement: Do not assume the replacement has the same firmware revision as the removed CPU. Record the existing controller firmware and AC500 project version before extraction.
• Logic rewrite: A verified like-for-like CPU replacement normally does not require rewriting the PLC application, but the application project, retained data, communication parameters, and hardware configuration must be restored and validated.
• Terminal-base compatibility: Confirm the installed terminal base before installation. The PM592-ETH is an processor module and must be used with the appropriate base/module architecture.
• Lifecycle: ABB currently lists the PM592-ETH order code as Active, which is useful when planning both immediate replacement and longer-term maintenance.

⚠️ Field Traps (Watch Out)

• Firmware/project mismatch: A replacement CPU can boot normally while still lacking the correct application project, boot configuration, or communication settings. Back up the complete PLC project before removing the original processor.
• Flash-disk assumptions: The integrated 4 GB flash disk is storage, not a substitute for a complete PLC project backup. Retained user data and data-logging files should be handled separately during migration.
• Serial-port configuration: The two RS-232/485 interfaces can serve different functions, including programming, Modbus, and CS31. Verify the port mode and field wiring rather than copying only the connector position.
• Ethernet configuration: Verify IP addressing, subnet settings, device name, and the application’s Ethernet service configuration before reconnecting the CPU to the production network.
• ESD and power isolation: Remove the 24 VDC control supply and use grounded ESD procedures before handling the processor module.

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB 1SAP150200R0271 focuses on CPU integrity, memory, communications, and exact hardware identification:

1. OEM anti-counterfeit visual inspection — verify ABB markings, designation, full 1SAP150200R0271 product ID, serial information, revision data, display assembly, connectors, and enclosure condition.
2. Product-ID capture — photograph all labels and secondary identification markings before testing.
3. Hardware-revision verification — compare the supplied CPU revision with the customer’s removed module where photographs or project documentation are available.
4. Mechanical inspection — check DIN-rail interfaces, terminal/base connections, display, connector shells, and signs of impact or contamination.
5. 24 VDC power inspection — confirm the correct control-power arrangement and polarity before controlled energization.
6. Power-on self-test (POST) — energize the processor in a controlled test environment and verify startup, display initialization, status indicators, diagnostics, and abnormal current draw.
7. Processor execution test — load a controlled test application and verify CPU startup, cyclic execution, diagnostic handling, and expected program behavior.
8. Memory verification — confirm accessible processor memory and verify operation of the integrated flash-storage function where the available test environment permits.
9. Ethernet handshake verification — connect the CPU to an isolated test network and verify TCP/IP communication and applicable onboard services.
10. RS-232/485 verification — test both serial interfaces using a controlled Modbus or other supported test configuration and confirm correct transmit/receive operation.
11. FBP interface check — where the test setup supports it, verify the fieldbus plug interface and expected communication behavior.
12. Web-server / protocol verification — where supported by the installed firmware, check the web interface and verify applicable SNTP or IEC 60870-5-104 functionality without exposing the unit to a production network.
13. Extended observation — operate the processor continuously under controlled conditions while monitoring CPU status, communication stability, and temperature.
14. Configuration record — document part number, hardware revision, firmware version, test project, communication results, and photographs.
15. Final ESD packaging — use antistatic protection, connector guards, mechanical cushioning, and moisture protection before shipment.

ABB’s current documentation gives the primary acceptance criteria: 4 MB processor memory, 4 GB flash disk, 24 VDC supply, Ethernet, two RS-232/485 interfaces, FBP, display, web server, SNTP, and IEC 60870-5-104 support.
