• Model: PM633
• Full Part Number: 3BSE008062R1
• Brand: ABB
• Series: Advant OCS / Advant Controller 110
• Part Type: Processor Module / Central Unit
• Core Function: Provides the central processing function for the Advant Controller platform.
• Key Specs: Motorola MC68340 processor at 25 MHz; backup battery 4943013-3; product net weight approximately 1.445 kg.

3. Product Introduction

The ABB PM633 3BSE008062R1 occupies the central processor position in ABB’s Advant Controller 110 architecture. ABB identifies it specifically as a PM633 Processor Module / Processor Unit, based on the Motorola MC68340 processor running at 25 MHz.

For plants maintaining legacy Advant OCS equipment, PM633 remains a practical spare for controller maintenance and legacy migration planning. The module also incorporates a 4943013-3 backup battery, so battery condition should be checked when evaluating long-stored New Surplus or refurbished stock.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ABB
Model	PM633
Product ID	3BSE008062R1
Product Type	Processor Module
Processor	Motorola MC68340
Processor Frequency	25 MHz
Controller Family	Advant Controller 110
System Family	Advant OCS
Functional Role	Central Unit / Processor Unit
Backup Battery	4943013-3
Product Net Weight	1.445 kg
Product Length	310.5 mm
Product Width	238.5 mm
Product Height	38.7 mm
Country of Origin Listed by ABB	Sweden
Customs Tariff Number	85389091
Previous Product ID	3BSE005831R1

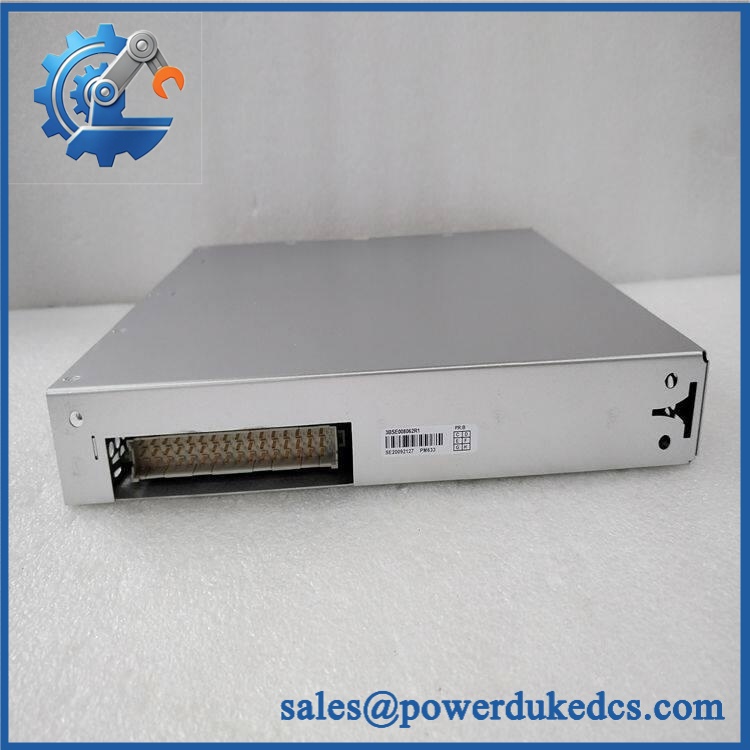

ABB PM633 3BSE008062R1

ABB’s current product data identifies 3BSE008062R1 as PM633 and states that it replaced 3BSE005831R1. The same ABB data gives the 310.5 × 238.5 × 38.7 mm dimensions and 1.445 kg net weight.

5. Application Scenarios & Pain Points

With the PM633 available as a tested spare, maintenance teams can address processor failures without immediately converting an entire legacy Advant Controller installation.

• Process control: Advant Controller 110 installations use PM633 as their central processor unit. It is appropriate for maintaining existing legacy control architectures rather than treating it as a modern AC 800M CPU.
• Power and utilities: During planned shutdowns, a verified processor spare can shorten the hardware-replacement portion of controller maintenance.
• Oil and gas / petrochemical: Legacy DCS assets often remain in service long after their original procurement cycle. Maintaining PM633 stock can reduce exposure to extended sourcing lead times.
• Factory automation: The PM633 is also relevant to sites performing legacy migration in stages, where the existing controller must remain operational while newer control infrastructure is introduced.

6. ? Common Error Codes & Diagnostic Symptoms

Symptom: Processor module fails to initialize or remains in a fault state
→ Diagnosis: A PM633 hardware fault, processor-board failure, backplane connection problem, or retained-data/battery issue may prevent normal controller startup.
→ Action: Check controller diagnostics, power and backplane connections first; replace the PM633 if the processor module is confirmed defective.

Symptom: Controller loses retained data after power interruption
→ Diagnosis: The PM633 uses backup battery 4943013-3. An aged or depleted battery can affect retention functions.
→ Action: Inspect the battery condition and follow the approved ABB maintenance procedure before relying on retained data.

Symptom: Replacement PM633 powers up but the controller does not operate correctly
→ Diagnosis: The replacement may have a hardware/configuration mismatch or the fault may reside elsewhere in the controller architecture.
→ Action: Verify the complete controller configuration and replacement part number before condemning the new module.

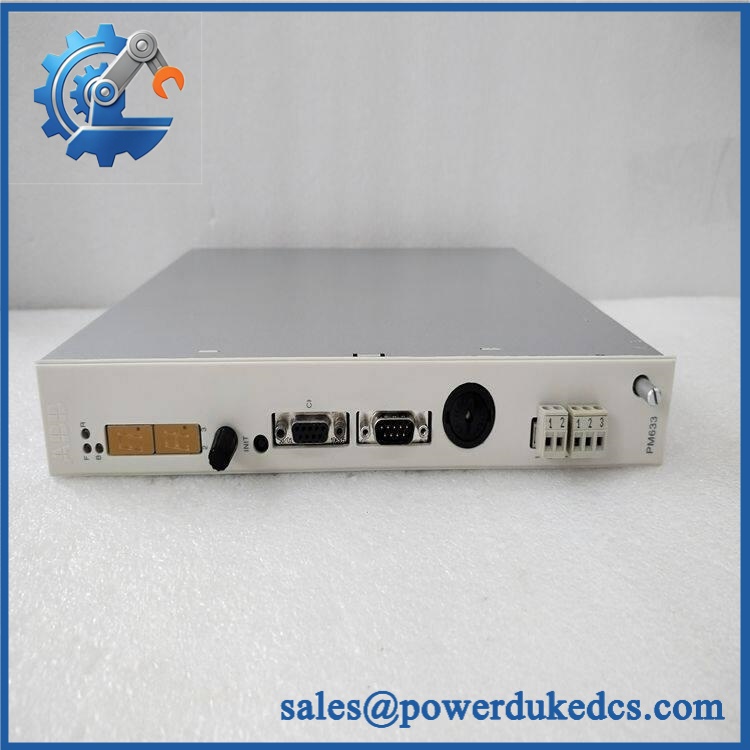

ABB PM633 3BSE008062R1

7. ? Cross-Reference & Lifecycle Migration

Replacement Part Number

ABB’s product data identifies:

• Current identification: PM633 — 3BSE008062R1
• Replaced product ID: 3BSE005831R1

ABB also documents a STUP-PM633-PM63X step-up/exchange service for replacing PM630, PM631, or PM632 with PM633 3BSE008062R1. That indicates the PM633 was specifically used as a step-up path within the Advant Controller processor family.

Firmware / Configuration

Do not assume that installing the physical PM633 automatically transfers the complete controller application. The installed controller software, configuration, retained data, and system-specific settings must be handled according to the applicable Advant Controller documentation.

Firmware flashing should not be performed simply to match an older node. Verify the installed software release and processor revision first.

Lifecycle

Lifecycle: Legacy / mature Advant OCS spare.

The PM633 belongs to the older Advant Controller platform rather than ABB’s current-generation AC 800M controller family. For sites still dependent on Advant Controller 110 hardware, holding a tested PM633 spare is sensible where an unplanned CPU failure would create significant downtime.

8. Field Engineer’s Tech Notes

1. Check the battery before putting a warehouse spare into service. PM633 uses the 4943013-3 backup battery. A unit can look physically excellent after years in storage while its battery is no longer suitable for dependable data retention.
2. Do not mistake the replacement part number for a completely different CPU generation. ABB identifies 3BSE005831R1 as the replaced product ID for PM633 3BSE008062R1. If the plant BOM still lists the older number, confirm the documented replacement relationship rather than ordering by model name alone.

9. Strict QA & Testing SOP

Step 1 — Inbound identification
Verify the physical markings against ABB PM633 / 3BSE008062R1. Record the serial number, hardware revision, and battery identification where visible.

Step 2 — Physical inspection
Inspect the PCB assembly, connectors, mounting hardware, enclosure, and backplane interface for corrosion, contamination, damaged components, or signs of previous repair.

Step 3 — Battery inspection
Check the installed 4943013-3 backup battery. If replacement is required, handle it according to the applicable ABB procedure and record the maintenance action.

Step 4 — Live-rig testing
Install the PM633 into an appropriate Advant Controller 110 test environment. Verify processor startup, controller diagnostics, backplane communication, and normal processor status.

Step 5 — Functional verification
Where the available test setup permits, verify controller execution and communication with the associated system hardware. Any abnormal processor diagnostic should be documented rather than cleared without investigation.

Step 6 — Final QC and packaging
Record the unit identification, test results, battery status, and photographs. Package the processor in ESD-safe protection with mechanical cushioning.

Unit-specific test reports, inspection photographs, and test videos are available upon request.

10. Buyer’s FAQ

Q: Is PM633 the same as 3BSE008062R1?
Yes. ABB identifies PM633 as the ABB Type Designation and 3BSE008062R1 as the Product ID.

Q: What older part does PM633 replace?
ABB lists 3BSE005831R1 as the replaced product ID. ABB also documented a PM630/PM631/PM632-to-PM633 step-up/exchange path.

Q: Is PM633 a modern AC 800M CPU?
No. PM633 belongs to the Advant Controller 110 / Advant OCS family. It should not be selected as a substitute for an AC 800M PM851, PM856, PM86x, or PM891 processor without an engineered migration plan.

Q: How can I verify a New Original PM633?
Request photographs of the ABB nameplate, 3BSE008062R1 identification, serial number, packaging, and condition. For refurbished stock, request a unit-specific functional test report and battery inspection record before shipment.
