ABB PM856AK01 3BSE066490R1 | AC 800M Processor Unit

Description

• Brand: ABB
• Full Model Number: PM856AK01
• ABB Article Number: 3BSE066490R1
• Product Family: AC 800M
• Lifecycle Status: Current ABB Compact Product Suite controller listing; exact software compatibility requires project verification
• Core Function in System: Non-redundant AC 800M CPU / processor unit for System 800xA control applications
• Top 3 Hardcore Specs: 24 MHz processor clock; 16 MB memory; 10.337 MB application RAM available from 800xA 5.1 FP4
• Processor Type: MPC860
• Control Performance: 0.46 ms per 1,000 Boolean operations
• Application Cycle Time: Down to 1 ms
• Ethernet: 2 × RJ45, 10 Mbit/s
• Serial: 2 × RS-232C ports
• Power Supply: 24 V DC, 19.2–30 V DC
• Power Consumption: 180 mA typical / 300 mA maximum at 24 V DC
• Operating Temperature: 0 to +55 °C
• Mounting: DIN rail via TP830 baseplate slide-and-lock mechanism
• Dimensions: 119 × 186 × 135 mm
• Weight: 1.1 kg including base
• Condition & Lead Time: New replacement inventory subject to exact hardware and software verification; emergency dispatch based on confirmed stock

ABB identifies PM856AK01 as an AC 800M Processor Unit with article number 3BSE066490R1. The CPU uses an MPC860 processor at 24 MHz, provides 16 MB memory, and has 10.337 MB RAM available for application from 800xA 5.1 FP4. ABB also specifies two Ethernet ports, two RS-232C interfaces, 24 V DC operation, and a DIN-rail mounting arrangement.

Module 3: Technical Intro & Downtime Impact

When an AC 800M processor fails, the impact can spread across the entire controller task set: I/O processing, sequence logic, interlocks, communication, and operator-facing control can all be interrupted. ABB PM856AK01, 3BSE066490R1 is the non-redundant processor unit for the AC 800M platform. ABB documents support for System 800xA configuration, with the CPU handling application execution, real-time clock functions, Ethernet control-network communication, and ModuleBus/CEX-bus connectivity.

For MTTR reduction, the relevant figures are concrete: 24 MHz MPC860, 16 MB memory, 10.337 MB application RAM, and application cycle times down to 1 ms. The controller provides 2 × 10 Mbit/s Ethernet RJ45 ports, 2 × RS-232C ports, and operates from 19.2–30 V DC, with 180 mA typical / 300 mA maximum consumption at 24 V DC. ABB also specifies 0 to +55 °C operation and IP20 protection. —Software revision matters just as much as the hardware code; a correctly identified CPU can still fail commissioning if the 800xA and Control Builder environment is incompatible.

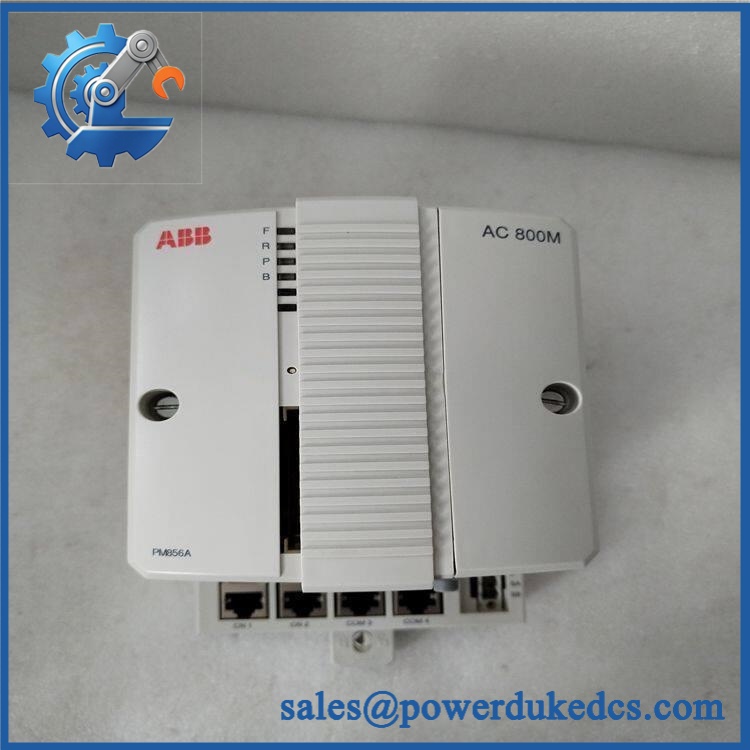

ABB PM856AK01 3BSE066490R1

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Capture the AC 800M controller state

• Place the affected controller and process in the approved maintenance condition.
• Confirm whether a redundant or standby controller exists; PM856AK01 itself is specified as non-redundant.
• Isolate the controller’s 24 V DC supply where required.
• Record PM856AK01 / 3BSE066490R1 and hardware revision.
• Record firmware version and current 800xA/Control Builder project revision.
• Back up the controller application and configuration.
• Record the Ethernet hardware address associated with the TP830 baseplate.
• Photograph the CPU position, TB850/TB807 terminators, Ethernet cables, serial connections, and neighboring modules.
• Use ESD protection before handling the processor unit.

2. Removal — Release the DIN-rail processor assembly

• Confirm the controller is in the approved safe state.
• Isolate and verify the 24 V DC supply.
• Disconnect the Ethernet and RS-232C connections as documented.
• Release the AC 800M module’s slide-and-lock mechanism.
• Withdraw the PM856A processor from the baseplate carefully.
• Do not disturb neighboring CEX-bus or ModuleBus connections unnecessarily.
• Inspect the TP830 baseplate and mating contacts for contamination, corrosion, bent pins, or thermal damage.
• Retain the original baseplate and terminators unless the approved replacement package specifically requires otherwise.

ABB describes the AC 800M family as rail-mounted hardware and specifically states that the PM856A baseplate uses a slide-and-lock mechanism for DIN-rail attachment and detachment. The PM856AK01 package includes the PM856A CPU, TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, and memory-backup battery.

3. Installation & Configuration — Preserve the controller identity

• Verify ABB / 3BSE066490R1 before installation.
• Confirm the replacement hardware revision and firmware compatibility.
• Install the processor onto the original TP830 baseplate.
• Engage the slide-and-lock mechanism fully.
• Reconnect both Ethernet ports and required RS-232C connections.
• Verify the hardware address on the TP830 baseplate.
• Confirm TB850 and TB807 termination hardware is correctly positioned.
• Restore the backed-up controller application and configuration using the approved engineering environment.
• Verify IP addressing, control-network configuration, CEX-bus modules, and ModuleBus configuration.
• Check the 24 V DC supply before enabling the controller.
• Do not assume that a blank or factory-default CPU is ready to run the existing application.

4. Power-On Self-Test (POST) — Validate CPU, network, and I/O

• Apply 24 V DC according to the controller startup procedure.
• Observe the CPU status LEDs and INIT indication during startup.
• Confirm the controller reaches its normal operating state without a persistent fault.
• Verify the Ethernet link on the required CN1/CN2 port.
• Establish communication with the engineering/control system.
• Confirm the application downloads or starts with no configuration errors.
• Verify CEX-bus and ModuleBus communication.
• Confirm all expected I/O modules appear online.
• Check controller clock and system synchronization.
• Verify critical interlocks and sequence logic before returning the process to normal operation.

ABB states that the CPU includes LED indicators and an INIT push button, while the baseplate provides the Ethernet and serial interfaces. The controller supports up to 12 single CEX-bus modules and up to 96 I/O modules on ModuleBus in the documented non-redundant configuration.

Module 5: Quality Assurance & Testing SOP

For , functional QA must cover both processor hardware and the AC 800M software environment. A controller that powers up but cannot establish its configured CEX/ModuleBus and application state is not an acceptable spare.

1. OEM identity verification

• Verify ABB
• Verify
• Verify 3BSE066490R1
• Compare CPU label, hardware revision, baseplate, and included terminators
• Perform OEM anti-counterfeit visual inspection
• Photograph all identification and revision markings

2. Physical inspection

• Inspect the CPU housing for cracks, deformation, contamination, and impact damage
• Check the baseplate
• Inspect RJ45 and RS-232C connectors
• Check CEX-bus and ModuleBus interfaces
• Inspect the DIN-rail locking mechanism
• Verify the memory-backup battery installation
• Inspect LEDs and INIT push button
• Check for thermal discoloration or unauthorized PCB rework

3. Electrical screening

• Verify 24 V DC input within 19.2–30 V DC
• Check current consumption against the expected operating range
• Verify protective-earth continuity where applicable
• Inspect connector integrity
• Verify absence of obvious shorts using an appropriate board-level test procedure
• Do not apply arbitrary hipot voltages to the populated controller electronics

4. Functional testing

• Power up the controller in an approved AC 800M test setup
• Perform power-on self-test
• Check CPU status indications
• Verify controller recognition by the engineering environment
• Verify firmware version
• Verify Ethernet communication on CN1/CN2
• Test RS-232C service communication where required
• Verify CEX-bus communication
• Verify ModuleBus communication
• Confirm representative S800 I/O devices are recognized
• Perform I/O full-range simulation on applicable test-system points
• Load a controlled test application
• Verify task execution and controller diagnostics
• Verify event and alarm handling
• Confirm application retention after controlled restart
• Record supply voltage, current consumption, firmware, configuration revision, and test results

ABB specifies 0.46 ms performance per 1,000 Boolean operations, up to 32 applications per controller, up to 32 programs per application, and down to 1 ms application cycle time. These values are useful acceptance references when the test application is representative of the customer’s workload.

5. Final QC release

• Independent QC sign-off
• Verified firmware/configuration record retained
• ESD-safe packaging
• Connector protection
• Battery condition recorded
• Final cross-check of
• Retain functional-test and communication-test records
• Release only after controller and I/O communications pass

Module 6: Maintenance & Reliability FAQ

Q1. Is ABB 3BSE066490R1 a direct drop-in replacement, or does it require a firmware flash?
Physically, uses the AC 800M baseplate and slide-and-lock arrangement, but commissioning is not simply a mechanical swap. The application environment, firmware revision, controller configuration, CEX-bus, ModuleBus, and network settings must all match the installed system. ABB identifies the processor as a 16 MB AC 800M CPU, so the engineering environment should be checked before loading the existing application.

Q2. Is it safe to hot-swap the while the system is running?
Do not assume live replacement is permitted. Even though the AC 800M hardware uses a convenient slide-and-lock mechanical arrangement, the CPU is actively controlling I/O and communicating with the control network. Follow the exact AC 800M system maintenance procedure and isolate the controller unless the installed architecture explicitly provides an approved live-replacement method.

Q3. Will replacing the cause my current program or configuration to be lost?
The safest approach is a complete application and controller-configuration backup before removal. Record firmware version, Ethernet settings, CEX-bus configuration, ModuleBus configuration, I/O assignments, task cycle settings, and controller-specific parameters. The baseplate has its own Ethernet address, so that hardware identity should also be recorded before replacement.

Q4. How much memory and processing capacity does the provide?
ABB specifies a 24 MHz MPC860 processor, 16 MB memory, and 10.337 MB RAM available for application from 800xA 5.1 FP4. Performance is listed at 0.46 ms per 1,000 Boolean operations, with application cycle times down to 1 ms. Actual task execution depends on the application structure and configured workload.

Q5. What should I verify before ordering a replacement?
Verify , 3BSE066490R1, hardware revision, firmware compatibility, baseplate compatibility, memory requirements, Ethernet address, CEX-bus configuration, ModuleBus configuration, and the 800xA/Control Builder project version. Also confirm the application does not require controller redundancy or a different AC 800M CPU class. ABB identifies specifically as a non-redundant controller.
