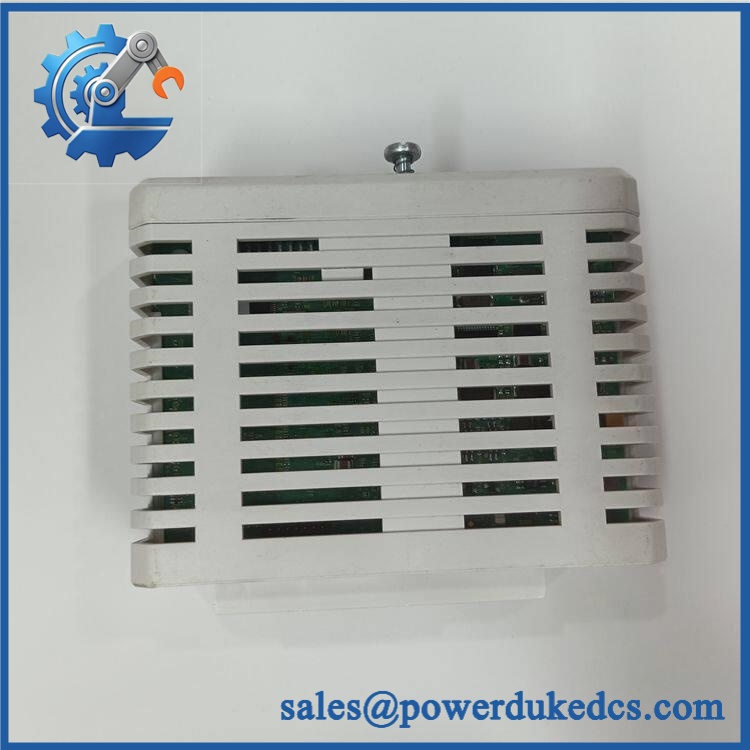

ABB PNI800 | Dual-Network Ethernet Interface for ABB Symphony Plus

Description

• Model: PNI800
• Brand: ABB
• Series: ABB Ability™ Symphony™ Plus SD Series
• Part Type: Plant Network Interface Module
• Core Function: Connects PC-based engineering, HMI, SCADA, and interface applications with ABB SD Series controllers over the PN800 real-time control network.
• Key Specs: 100 Mbps PN800 communication, 2 × redundant Ethernet ports, IEC 62439 PRP support, up to 10 S+ Engineering client connections, and up to 30,000 HMI tags.
• Current ABB Status: The ABB Hardware Selector lists PNI800K01 with Active lifecycle status.

Product Introduction

In a Symphony Plus installation, the PNI800 sits between the PN800 control network and host computers running S+ Engineering, S+ Operations, 800xA Operations for Symphony Plus Harmony, or compatible Harmony API applications. It provides bidirectional, real-time communication rather than acting as a conventional PLC I/O module.

The communication architecture is built around redundancy. PNI800 connects to both PN800A and PN800B network paths and operates as a PRP Dual Attached Node, allowing the control network to maintain communications when one network path fails.

Core Technical Specifications

ABB PNI800

ABB’s current Hardware Selector provides the PNI800K01 specifications, while ABB’s Symphony Plus product catalog documents the 24 VDC supply requirement, 100 Mbps redundant Ethernet communication, 30,000-tag HMI capacity, and 0–55°C ambient range.

Application Scenarios & Pain Points

A power-generation control room may have multiple operator and engineering workstations communicating with SD Series controllers. PNI800 provides the network interface required for these PC-based applications, supporting up to 10 S+ Engineering client connections and up to 30,000 HMI tags.

For redundant control networks, network availability is the key consideration. connects to the two PN800 LANs and supports IEC 62439 PRP, allowing the architecture to avoid a single network-path failure.

In a water-treatment or process-control facility, the interface can connect operator and engineering software with SD Series controllers through the PN800 infrastructure. When the communication interface fails, controller data may no longer be available to the connected host applications.

At 50°C ambient conditions, the installation is approaching the upper end of the documented 0–55°C ambient operating range. Cabinet ventilation and thermal management therefore deserve attention when diagnosing unexplained communication instability.

Common Error Codes & Diagnostic Symptoms

Symptom: S+ Engineering or HMI loses communication with SD Series controllers
→ Diagnosis: , network connectivity, Ethernet cabling, or the associated host application may be interrupting the real-time data path.
→ Action: Check status, both Ethernet paths, network configuration, and host connectivity; replace the module if hardware failure is established.

Symptom: One network path is unavailable
→ Diagnosis: A failed Ethernet connection or network component may have removed one PRP path while the redundant path remains available.
→ Action: Inspect the affected LAN, connector, cable, and port. Do not replace the module until the network path itself has been checked.

Symptom: stops responding to communication requests
→ Diagnosis: ABB documentation identifies conditions under which can stop responding to data-transfer requests; firmware security advisories have addressed denial-of-service vulnerabilities affecting .
→ Action: Check module diagnostics and installed firmware against the applicable ABB security advisory, then restore or replace the module according to the approved maintenance procedure.

Cross-Reference & Lifecycle Migration

• Primary model:
• Current kit reference: PNI800K01, identified by ABB as a Plant Network Interface Kit.
• Kit configuration: ABB documentation identifies PNI800K01 as a communication module with the MB805 mounting base.
• Coated variant: PNI800K01A is documented as a kit containing PNI800A + MB805A with conformal coating.
• Software licensing: ABB documentation states that PNI800SWLIC-01 software license key is ordered separately for the applicable kit configuration.
• Firmware: ABB has published security advisories involving firmware. Firmware level should therefore be checked during maintenance and migration.
• Lifecycle: Active for PNI800K01 according to ABB’s current Hardware Selector.
• Migration strategy: ABB notes that functionality has been virtualized and is available as VPNI optional software for S+ Engineering, S+ Operations, 800xA Operations HMI, and Harmony OPC Server applications. Performance and capacity can differ between and VPNI.
• Buffer-stock strategy: Because the hardware remains active, standard spare planning is possible; however, plants with installed legacy hardware should verify firmware and software-license compatibility before migration to a newer architecture.

Field Engineer’s Tech Notes

Warning 1 — Do not confuse line redundancy with module redundancy.
provides line redundancy through two Ethernet connections, but ABB specifies module redundancy: No. A second network path does not mean that a failed module itself will be automatically replaced by another .

Warning 2 — Check both network ports before replacing the module.
When communication drops, inspect PN800A and PN800B independently. Check RJ45 connections, cable condition, link status, and network configuration first (a single failed Ethernet path should not by itself prove that the hardware has failed).

Strict QA & Testing SOP

1. Part identification — Verify the module marking as and record the complete ordering reference.
2. Hardware inspection — Examine the enclosure, front-panel indicators, RJ45 ports, service port, and mounting interface.
3. Connector inspection — Check both Ethernet connectors for damaged contacts, loose housings, contamination, or mechanical wear.
4. Power verification — Confirm the available supply is compatible with 24 VDC ±10% before energizing the module.
5. Network test — Connect the module to an appropriate test environment and verify both redundant network paths.
6. Communication test — Establish communication with a compatible S+ Engineering or HMI environment.
7. Data verification — Confirm real-time controller data transfer and verify expected HMI tag availability.
8. Redundancy test — Where the test environment permits, disconnect one network path and verify continued operation through the redundant path.
9. Diagnostic review — Check module status and communication behavior for intermittent faults.
10. Firmware review — Record firmware information and compare it with applicable ABB security and system requirements.
11. Final QA — Document test results and photograph the module before packaging.
12. ESD-safe packaging — Protect the module against electrostatic discharge and mechanical impact during shipment.

Test videos are available upon request for units that undergo functional testing.

Buyer’s FAQ

Q: Can the ABB be hot-swapped?
A: Yes. ABB’s current Hardware Selector lists Hot Swap: Yes for PNI800K01. The actual replacement should still follow the site’s approved maintenance procedure and system-specific safety requirements.

Q: What does the actually connect?
A: It connects PC-based applications such as S+ Engineering, S+ Operations, 800xA Operations for Symphony Plus Harmony, or Harmony OPC Server with SD Series controllers through the real-time control network.

Q: Is a PLC I/O module?
A: No. It is a Plant Network Interface Module. Its primary role is real-time communication between host applications and the control network rather than direct field I/O processing.

Q: What should I check when buying a replacement?
A: Confirm the model, hardware version, mounting base requirements, firmware compatibility, and software-license requirements. For , ABB specifies the MB805 base, while the PNI800SWLIC-01 license is ordered separately.
