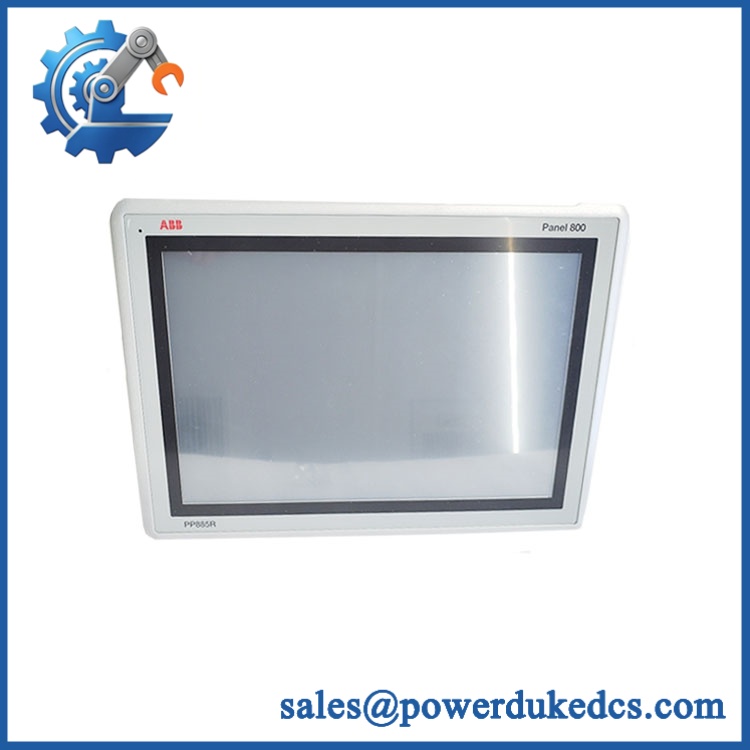

ABB PP885M 3BSE069280R1 | Panel 800 Touchscreen HMI

Description

• Full Model: PP885M 3BSE069280R1
• Brand: ABB
• Series: Panel 800 Version 6
• Part Type: 15.4-inch black touch operator panel
• Display: TFT color LCD, 1280 × 800 resolution, 16:10 ratio
• Processor / Memory: 1.0 GHz Intel Atom processor, 1 GB main memory
• Touch Technology: Resistive touch rated for 5 million finger operations

Product Introduction

The ABB PP885M is the 15.4-inch black touch panel in the Panel 800 Version 6 family, designed to provide operator visualization and control for process automation applications.

Its hardware combines a 1280 × 800 TFT display, resistive touchscreen, 1.0 GHz Intel Atom processor, and 1 GB main memory. Connectivity includes one 10/100 Mbps Ethernet interface, one 10/100/1000 Mbps Ethernet interface, three USB 2.0 host ports, and isolated RS-232 / RS-422/485 serial connectivity. ABB specifies Panel Builder 800 Version 6 for configuration.

Core Technical Specifications

ABB PP885M 3BSE069280R1

ABB’s official Panel 800 documentation identifies PP885M 3BSE069280R1 with the above display, memory, processor, interface, dimensional, and protection characteristics.

Application Scenarios & Pain Points

A legacy process line may continue running reliably while its original operator panel becomes the single point of failure. Replacing the HMI without changing the underlying control application can be the practical route when the Panel 800 architecture remains serviceable.

• Process automation: PP885M provides the operator-facing visualization layer for process control applications.
• DCS operator stations: The panel can serve as a local HMI for equipment using compatible ABB Panel 800 applications.
• Machine control cabinets: Its 15.4-inch 16:10 display provides considerably more visualization area than smaller Panel 800 models.
• Legacy-system maintenance: Existing installations using Panel Builder 800 Version 6 may require a like-for-like PP885M spare to avoid an unnecessary HMI migration.
• Harsh industrial panels: The front panel is specified as IP65 / NEMA-4X, making proper cabinet sealing and panel-flatness control important during installation.

Common Error Symptoms & Diagnostic Symptoms

Symptom: Touchscreen operates intermittently → Diagnosis: Check the resistive touch surface, front overlay, connector condition, and application response before replacing the complete panel. Physical damage or contamination can produce intermittent touch registration. → Action: Inspect the panel and replace the HMI if the touch hardware is confirmed defective.

Symptom: HMI powers on but the automation application does not load correctly → Diagnosis: Check the Panel Builder 800 application image, storage condition, and software/version compatibility. The hardware is only one part of the HMI configuration. → Action: Verify the application package and target Panel 800 Version 6 configuration.

Symptom: Ethernet connection repeatedly drops → Diagnosis: Check the selected Ethernet port, cable, switch configuration, connector seating, and network settings. provides both 10/100 and 10/100/1000 Ethernet interfaces, so confirm which port the application expects. → Action: Correct the network configuration or replace the panel after hardware failure is established.

Cross-Reference & Lifecycle Migration

The ABB 3BSE069280R1 belongs to the Panel 800 Version 6 family. ABB’s portfolio lists the related PP874M 3BSE069279R1 and PP885H 3BSE069281R1 as separate models; the PP885H is the high-brightness 15.4-inch variant, while uses the standard 450 cd/m² display. These should not be treated as automatic drop-in replacements.

The is configured with Panel Builder 800 Version 6, so application compatibility should be checked before migration or replacement. ABB continues to publish Panel 800 Version 6 documentation and product-family information, including the hardware manual.

For spare-parts planning, keep the full 3BSE069280R1 article number on the inventory record. Do not reduce the identification to “” alone when ordering, since related PP885-family panels have different article numbers and display characteristics.

ABB PP885M 3BSE069280R1

Field Engineer’s Tech Notes

1. Do not cut the enclosure based on a catalog image. ABB specifies a 394 ± 1 mm × 270 ± 1 mm cutout for the , with a maximum corner radius of 4 mm. Cabinet flatness and surface finish also matter for maintaining the specified front sealing performance.
2. Back up the HMI application before swapping hardware. A new panel with the correct article number can still require the correct Panel Builder 800 project, communication settings, user configuration, and application image. Preserve the original project and record Ethernet/serial settings before removing a failed unit.

Strict QA & Testing SOP

1. Inbound identification: Verify , article number 3BSE069280R1, serial information, front-panel label, and hardware condition.
2. Physical inspection: Check the TFT screen, touch overlay, aluminum frame, mounting surfaces, connectors, USB ports, Ethernet ports, and serial interface for impact or corrosion damage.
3. Power verification: Apply the specified supply through an appropriate controlled test setup and confirm normal startup behavior and display initialization.
4. Display test: Check the complete 1280 × 800 display area for abnormal pixels, backlight issues, flicker, and visible damage.
5. Touch test: Exercise the resistive touchscreen across multiple positions, corners, and operator-interface controls. Confirm consistent registration without dead zones.
6. Communication test: Verify Ethernet link operation on the applicable ports and test the RS-232 / RS-422/485 interface where required by the customer’s application.
7. Application test: Load or connect the approved Panel Builder 800 Version 6 application and confirm operator-screen behavior, alarms, navigation, and communication with the target control system in a suitable test environment.
8. Final QC: Record the article number, serial number, visual inspection results, communication results, touchscreen response, and test status. Use protective packaging suitable for the 4.39 kg panel and its touchscreen surface.

Test reports, inspection photographs, and available test videos can be provided upon request.

Buyer’s FAQ

Q: Is 3BSE069280R1 a touchscreen HMI?
A: Yes. ABB identifies it as a 15.4-inch Panel 800 Version 6 black touch panel with a 1280 × 800 TFT color display and resistive touchscreen.

Q: What software is used to configure ?
A: ABB specifies Panel Builder 800 Version 6 for configuration of the .

Q: Can PP885H replace directly?
A: Not automatically. Both are 15.4-inch panels with the same 1280 × 800 resolution, but PP885H is the high-brightness version at 1000 cd/m², compared with 450 cd/m² for . Verify application and hardware compatibility before substitution.

Q: Can you provide a tested New Original replacement?
A: Supply condition should be confirmed at quotation. New Original, New Surplus (NSFP), and refurbished units can be handled as separate conditions, with the specific warranty and available test evidence stated clearly before the PO is issued.
