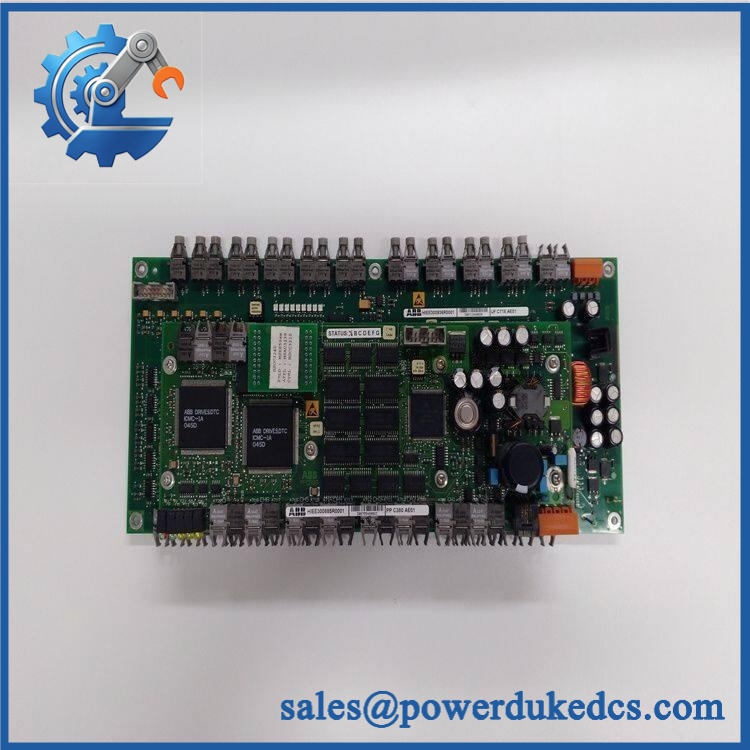

ABB PPC322BE01 HIEE300900R0001 | PSR-2 Processor Fieldbus

• Brand: ABB
• Full Model Number: PPC322BE01 / PP C322 BE01
• Product ID: HIEE300900R0001
• Lifecycle Status: Spare part; ABB product record identifies it as a PSR-2 processor + fieldbus
• Core Function in System: Processing unit for ABB UNITROL P systems
• Top 3 Hardcore Specs: PSR-2 processor; integrated fieldbus; 1.149 kg net weight
• System Role: Processing Unit
• Typical Quantity in UNITROL P: 2 units per system
• Country of Origin: Switzerland
• Condition & Lead Time: New inventory subject to physical verification; emergency availability confirmed before dispatch

ABB identifies HIEE300900R0001 as PP C322 BE01 PSR-2 processor + fieldbus. Its UNITROL P spare-parts documentation lists the device as a Processing Unit and specifies two pieces per UNITROL P unit. ABB catalog data also lists a net weight of 1.149 kg and a minimum order quantity of one piece.

Module 3: Technical Intro & Downtime Impact

At 3 AM, a failed processing unit can leave a UNITROL P excitation system unable to perform its normal control duties, even when the power electronics and field wiring remain intact. ABB’s own spare-parts documentation identifies PP C322 BE01, HIEE300900R0001 as the system’s Processing Unit, with two units used in one UNITROL P installation. That makes correct part-number control important during a breakdown: substituting a visually similar processor can introduce fieldbus, configuration, or revision incompatibility.

For MTTR reduction, the useful numbers are straightforward: PSR-2 processing architecture, integrated fieldbus functionality, and 1.149 kg net weight are all documented characteristics of the HIEE300900R0001 spare. ABB’s public product record does not publish a definitive RAM capacity, nominal supply voltage, or operating-temperature range for this exact ordering number, so those values should not be fabricated for a replacement decision. One secondary technical listing reports 24 VDC, 128 MB RAM, and -20°C to +60°C, but those figures should be validated against the installed UNITROL P documentation before procurement or commissioning.

ABB PPC322BE01 HIEE300900R0001

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Isolate the excitation system

• Place the UNITROL P installation in the approved maintenance state.
• Follow the site’s electrical isolation and discharge procedure before opening the cabinet.
• Use an ESD wrist strap and antistatic surface for board handling.
• Photograph the failed PP C322 BE01 before disconnecting anything.
• Record the exact HIEE300900R0001 identification and hardware revision.
• Capture existing fieldbus connections, jumper/switch positions, and connector orientation.

2. Removal — Preserve the original interface arrangement

• Confirm the cabinet is electrically safe and residual energy has been addressed.
• Label each connected interface before removal.
• Release the processor’s retaining hardware according to the UNITROL P mechanical arrangement.
• Withdraw the processor evenly; do not twist the PCB or force mating connectors.
• Inspect connectors, sockets, and the surrounding backplane for contamination, oxidation, or heat damage.
• Retain the failed unit for failure analysis rather than discarding it immediately.

3. Installation & Configuration — Match the PSR-2 processor exactly

• Verify ABB PPC322BE01 / PP C322 BE01 / HIEE300900R0001 before installation.
• Confirm the replacement revision against the installed UNITROL P documentation.
• Seat the processor fully and secure the original retaining hardware.
• Reconnect fieldbus and control interfaces exactly as photographed and documented.
• Restore any documented addressing, jumper, switch, or parameter settings.
• Do not assume factory defaults are compatible with the existing excitation system.
• Do not perform a firmware change unless the applicable ABB documentation requires it.

4. Power-On Self-Test (POST) — Validate system behavior

• Re-energize according to the UNITROL P startup procedure.
• Watch the processor and system diagnostic indicators during initialization.
• Confirm that no persistent processor, fieldbus, or system fault remains.
• Verify communication with the associated control equipment before enabling the excitation process.
• Check measured values and alarms against the pre-failure baseline.
• Complete a controlled functional test before returning the generator excitation system to normal service.

ABB documents this device as a PSR-2 processor with fieldbus functionality, but the public catalog record does not provide a universal standalone LED startup sequence. Use the host UNITROL P documentation for exact LED interpretation rather than applying a generic controller POST procedure.

Module 5: Quality Assurance & Testing SOP

A replacement processor should not leave the warehouse on part-number inspection alone. The test record should establish identity, physical condition, electrical handling integrity, and functional compatibility.

1. OEM identity verification

• Confirm ABB PPC322BE01
• Confirm PP C322 BE01
• Confirm
• Compare manufacturer markings, labels, PCB revision, connectors, and component layout
• Perform OEM anti-counterfeit visual inspection
• Photograph all identifying marks before packing

2. Physical inspection

• Inspect the PCB for corrosion, impact damage, cracked connectors, contamination, and solder defects
• Examine mating connectors and retention points
• Check for signs of overheating or previous rework
• Record the physical condition with photographs
• Verify the unit corresponds to the processor + fieldbus configuration

3. Electrical screening

• Perform applicable continuity checks without exceeding component or interface limits
• Inspect for shorts, damaged pins, and abnormal component condition
• Verify protective earth continuity where applicable to the assembly
• Do not apply arbitrary hipot or insulation-test voltages to a populated processor board
• Use the ABB-approved test method for energized verification

4. Functional testing

• Install in an approved compatible UNITROL P test environment where available
• Execute power-on self-test
• Check applicable RUN/ERR or equivalent diagnostic indications
• Verify processor initialization
• Verify fieldbus communication
• Exercise supported control/monitoring points through the test setup
• Perform I/O simulation only where the installed test configuration exposes those signals
• Record test conditions, revision, observations, and final result

5. Final QC release

• QC technician sign-off
• ESD-safe packaging
• Connector protection against mechanical impact
• Final cross-check of PPC322BE01 /
• Retain inspection photographs and test records with the shipment file

ABB’s UNITROL P spare-parts document explicitly identifies as a Processing Unit and notes that recommended spares are application-specific. That is why the receiving inspection should verify the target UNITROL P configuration instead of treating the processor as a universal replacement.

Module 6: Maintenance & Reliability FAQ

Q1. Is ABB PPC322BE01 a direct drop-in replacement, or does it require a firmware flash?
It should be treated as a controlled replacement, not an automatic firmware-flash operation. First match the complete identification PPC322BE01 / PP BE01 / , then compare hardware revision and applicable UNITROL P software requirements. ABB identifies the part as a processor with fieldbus; the public product record does not establish one universal firmware version for every installation.

Q2. Is it safe to hot-swap this processor while the system is running?
Do not assume hot-swapping is permitted. The ABB spare-parts material identifies the device as a UNITROL P processing unit, but it does not establish a universal live-replacement procedure. Follow the specific UNITROL P maintenance instructions and site isolation rules before removing the processor.

Q3. Will replacing the cause my current program or configuration to be lost?
The processor should be replaced only after the existing configuration has been documented or backed up according to the UNITROL P service procedure. Record hardware revision, communication settings, addresses, parameters, and any application-specific configuration before removal. After installation, restore and verify those settings rather than assuming the replacement will inherit the previous configuration automatically.

Q4. Why are two processors listed for one UNITROL P system?
ABB’s UNITROL P spare-parts document specifies two Processing Units per one UNITROL P unit. Therefore, inventory planning should account for the actual system architecture and installed quantity rather than assuming one spare covers every configuration.

Q5. What are the warranty terms if the replacement fails after installation?
Warranty duration should be established in the supplier’s written sales terms before purchase. Keep the original packaging, serial or identification photographs, installation record, pre-installation test report, and post-failure diagnostics. Those records provide the evidence needed to distinguish a processor defect from field wiring, configuration, communication, or host-system problems.
